Machine Bolt

ISO 8752 304 Stainless Steel Slotted Spring Pins - Plain Finish

All Category

Plastic Bolt

Ms. Amylin

amylin@ybfasteners.com

+8618658229310

Contact Now

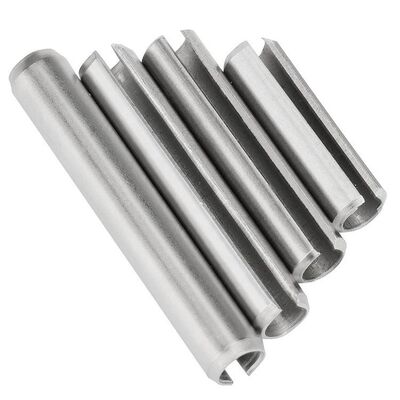

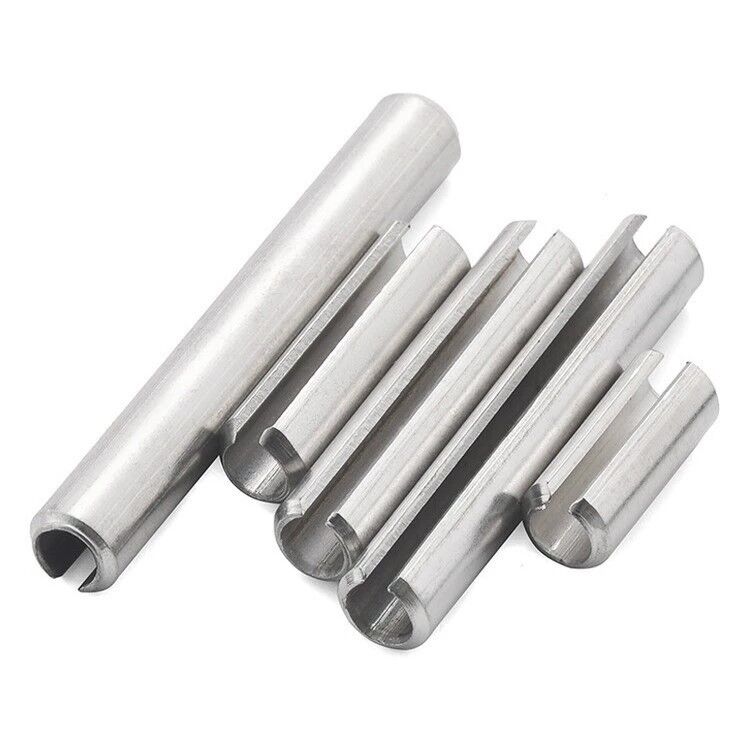

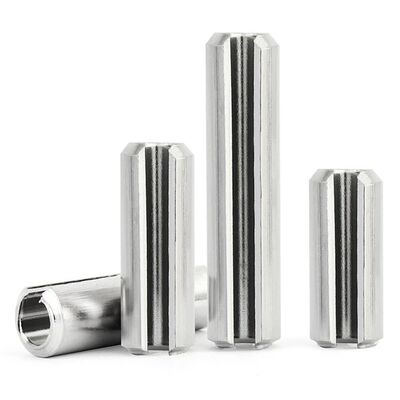

ISO 8752 304 Stainless Steel Slotted Spring Pins - Plain Finish

Brand Name:	YB
Model Number:	ISO8752
MOQ:	20000
Price:	Negontiation
Packaging Details:	5000-10000/box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

ZheJiang,China

Certification:

ISO9001,IATF16949

Thread Nominal:

M1-M20

Surface:

Plain Finish

Delivery:

7-15days

Trade Term:

EXW/FOB/CIF/DDP/DDU

Application Scrope:

Machinery Industry

Trademark:

YONGBIAO

Standard:

ISO 8752/DIN 1481

Supply Ability:

5000Tons/year

Highlight:

304 stainless steel slotted spring pins

ISO 8752 spring pins plain finish

machine bolt slotted spring pins

Product Description

ISO 8752 304 Stainless Steel Slotted Spring Pins - Plain Finish

ISO 8752 304 Stainless Steel Slotted Spring Pins (also known as roll pins or tension pins) are self-retaining, headless, hollow mechanical fasteners with a continuous slot down the center. Engineered from premium 304 stainless steel, these pins feature double-end chamfers for effortless insertion into drilled holes.

When driven into a hole slightly smaller than the pin's relaxed outer diameter, the pin contracts, applying continuous outward radial compression against the inner wall. This spring action provides superior friction resistance, preventing movement, shear displacement, and loosening caused by high vibration.

Technical Specifications

Name	ISO 8752 dowel pin
SPEC	Φ2
Material	304 Stainless Steel
Head Type	Round
Application	Automobile

Dimension Table (mm)

d	Φ1	Φ1.5	Φ2	Φ2.5	Φ3	Φ3.5	Φ4	Φ4.5
d max	1.3	1.8	2.4	2.9	3.5	4	4.6	5.1
d min	1.2	1.7	2.3	2.8	3.3	3.8	4.4	3.002
d1 h8	0.8	1.1	1.5	1.8	2.1	2.3	2.8	3
a max	0.35	0.45	0.55	0.6	0.7	0.8	0.85	1
a min	0.15	0.25	0.35	0.4	0.5	0.6	0.65	0.8
h	0.2	0.3	0.4	0.5	0.6	0.75	0.8	1

Key Features & Advantages

High-Grade 304 Stainless Steel: Offers excellent corrosion resistance and mechanical properties suitable for various industrial environments
Plain Finish: Provides clean, industrial appearance with natural stainless steel surface characteristics
Vibration-Proof Self-Locking: Eliminates the need for secondary reaming, threading, or locking devices, saving production cost and assembly time
Double-End Chamfered Design: Ensures self-centering alignment for precise automated or manual installation

Industrial Applications

Automotive Industry: Gearbox linkages, shift forks, steering shafts, and brake linkages
Industrial Machinery: Power transmission shafts, gear connections, drive pulleys, and conveyor assemblies
Agricultural Equipment: Heavy-duty tractor linkages, implements, and harvester mechanisms
Tooling & Manufacturing: Stamping die positioning, jig holding, and motor shaft retention

FAQ Section

Q1: Why select 304 stainless steel for spring pins?

A: 304 stainless steel offers excellent corrosion resistance while maintaining good mechanical strength, making it ideal for applications requiring durability in various environmental conditions.

Q2: What are the benefits of the plain finish on stainless steel pins?

A: The plain finish maintains the natural corrosion-resistant properties of stainless steel without additional coatings, ensuring dimensional accuracy and compatibility with tight tolerance applications.

Q3: Can these slotted spring pins be reused?

A: Yes, due to the spring properties of the stainless steel material, these pins retain their outward tension force and can typically be re-installed multiple times depending on application conditions.
