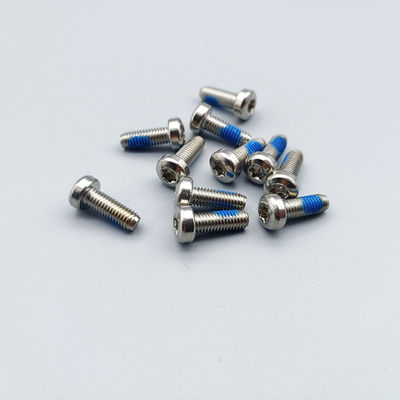

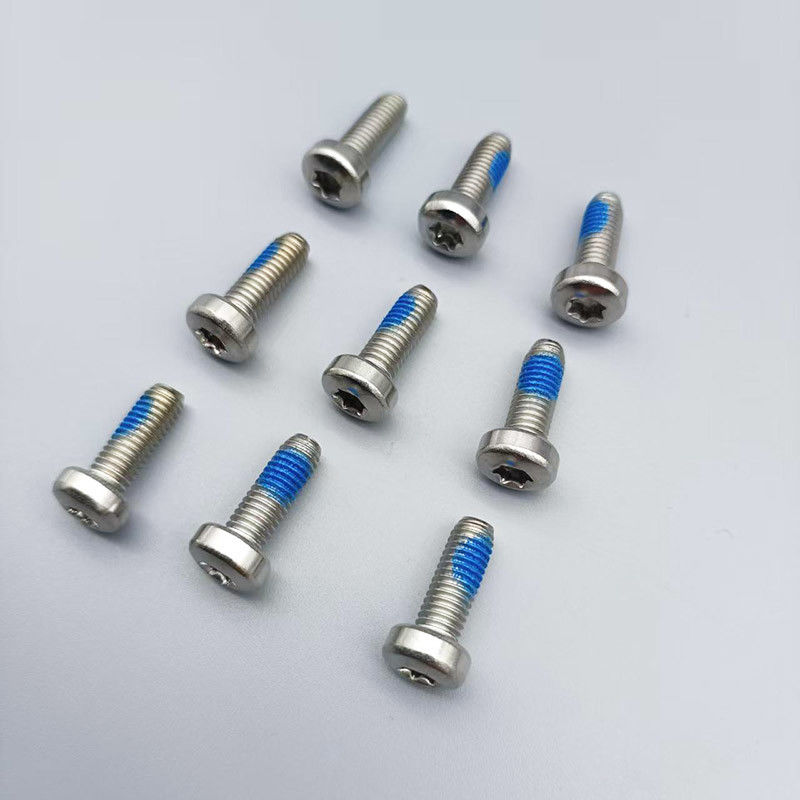

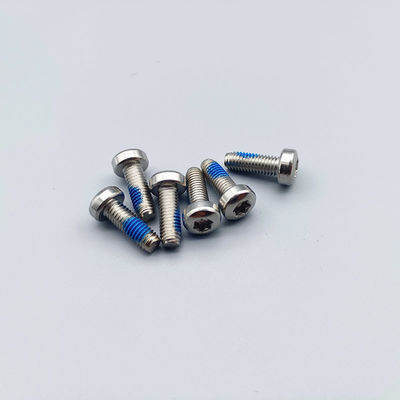

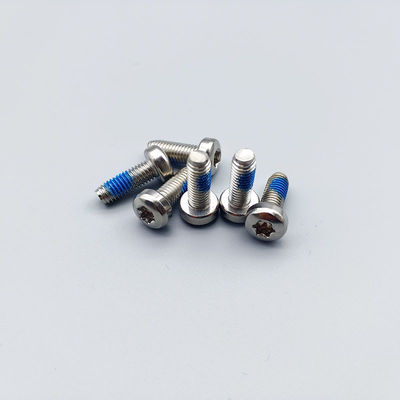

ISO14583 M5 M6 M8 Hexalobular Socket Pan Head Screws

Brand Name:	YONGBIAO
Model Number:	ISO14583 Pan Head Hexagon Screws
MOQ:	50000PCS
Price:	0.03USD-0.1USD
Packaging Details:	Carton Box/Pallet/Customized
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Certification:

ISO90001

Quantity:

1000-5000pieces/Package

Transport Package:

Plastic Bags And Cartons

Port:

NINGBO Or SHANGHAI

Delivery:

7-15days

Thread Size:

M2-M10

Keywords:

Screw Fastener

Thread:

ISO14583

Highlight:

M6 Hexalobular Socket Pan Head Screws

Hexalobular Socket Pan Head Screws

M5 Hexalobular Socket Pan Head Screws

Product Description

Product Description:

ISO14583 Hexaspherical Socket Pan Head Machine Screws (also known as Torx screws) are fasteners designed with hexagonal star shaped grooves that combine the anti slip advantages of Torx heads with standardized design, making them suitable for high-precision and high-strength industrial scenarios.

Features:

Strong anti slip performance, hexagonal star shaped groove design increases the contact area between the screwdriver and the screw, reducing the risk of slipping, especially suitable for high torque operations.High torque transmission, compared to traditional Phillips or Phillips screws, the Phillips head can withstand greater tightening force, reducing the probability of screw or tool damage, making it very suitable for automation.

Technical Parameters:

ISO14583 M5 M6 M8 Hexalobular Socket Pan Head Screws 3

d		M2	M3	M4	M5	M6	M8	M10
P		0.4	0.5	0.7	0.8	1	1.25	1.5
a	MAX	0.8	1	1.4	1.6	2	2.5	3
dk	MAX	4	5.6	8	9.5	12	16	20
dk	MIN	3.7	5.3	7.64	9.14	11.57	15.57	19.48
da	MAX	2.6	3.6	4.7	5.7	6.8	9.2	11.2
k	MAX	1.6	2.4	3.1	3.7	4.6	6	7.5
k	MIN	1.46	2.26	2.92	3.52	4.3	5.7	7.14
r	MAX	0.1	0.1	0.2	0.2	0.25	0.4	0.4
R		3.2	5	6.5	8	10	13	16
x	MAX	1	1.25	1.75	2	2.5	3.2	3.8
A		1.75	2.8	3.95	4.5	5.6	7.95	8.95
t	MAX	0.77	1.27	1.66	1.91	2.42	3.18	4.02
t	MIN	0.63	1.01	1.27	1.52	2.02	2.79	3.62

Applications:

In the automotive manufacturing industry, thread rolling technology is employed to enhance anti-loosening properties,Often used for the assembly of engine oil pumps, vacuum pumps, and transmissions. The connection points supporting dynamic loads in industrial machinery, including machine tools and hydraulic systems, rely on the high strength provided by rolled threads.Furthermore, in the assembly of new energy battery modules, Hexalobular Socket Pan Head Self Tapping Screws can be used in lithium battery brackets or metal shells. This application helps prevent material weakening that might occur with traditional thread cutting methods.

Company Profile:

ISO14583 M5 M6 M8 Hexalobular Socket Pan Head Screws 5

Packing and Shipping:


Carton Packaging	Outer Cartonbox Packaging	Pallet Packaging
Bolts are packed in neutral packaging boxes, with standard quantities arranged in small cartons. The exact number of units per carton will be confirmed with the customer to align with their specific requirements. Customized packaging configurations are available upon request.	The small cartons are then consolidated into larger master cartons for secure transportation and storage. The quantity per master carton can be customized based on client specifications or aligned with standard logistical requirements.	The palletized units are securely wrapped with waterproof film and reinforced with packaging straps. Customer-specific shipping marks or labels are affixed to each pallet, ensuring clear identification and compliance with logistics requirements. This final packaging stage guarantees weather-resistant protection and stability during transportation.
