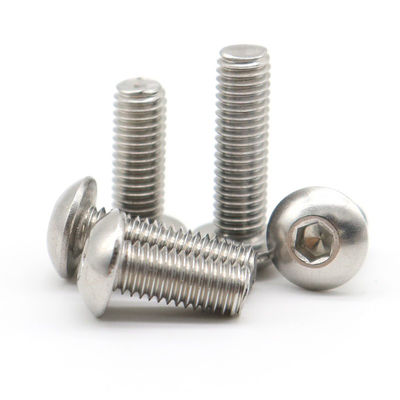

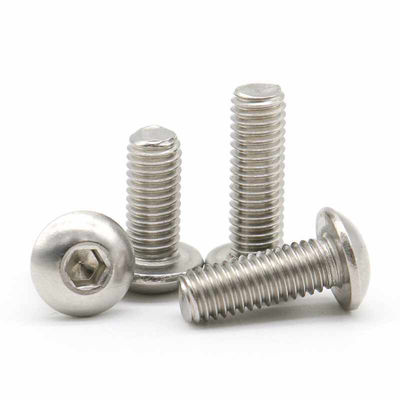

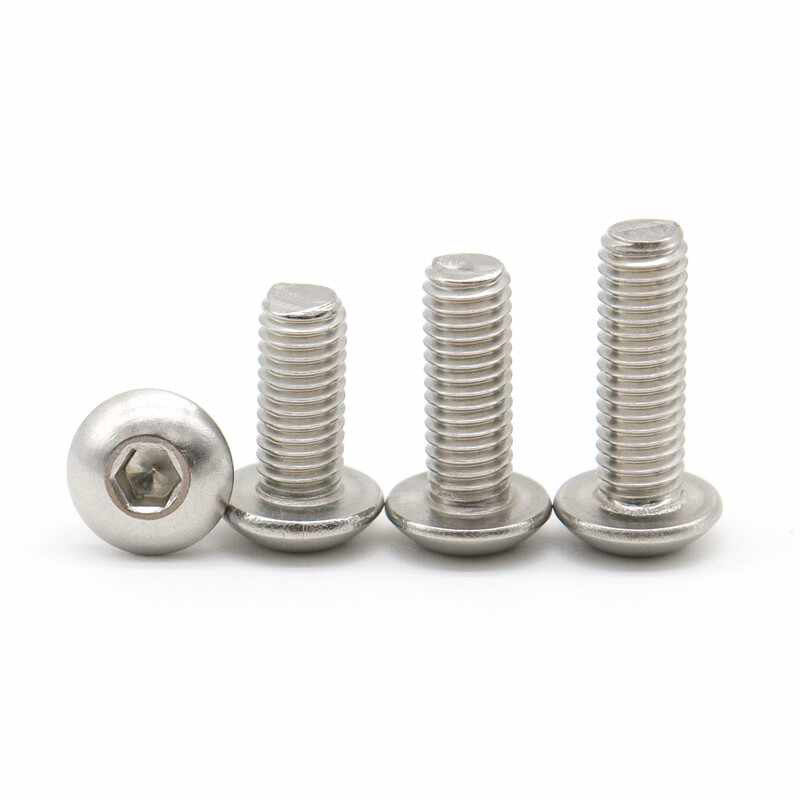

Aluminum Pan Head Screws M4 Stainless Steel Screws Grade 8.8

Brand Name:	YONGBIAO
Model Number:	DIN EN ISO 7380 (-1) - 2011
MOQ:	50000
Price:	Negontiation
Packaging Details:	Carton Box/Pallet/Customized
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

ZHEJAING CHINA

Certification:

ISO 9001

Name:

Pan Head Screws

Application Scrope:

Machinery Industry

Package Quantity:

100-1000

Thread Coverage:

Fully/Half Threaded

Size:

M3-M16

Grade:

8.8-12.9

Usage:

General Purpose

Tolerance:

24-48H

Thread Type:

Coarse

Supply Ability:

500 Tons/month

Highlight:

Aluminum Pan Head Screws

Pan Head Screw M4

M4 Stainless Steel Screws

Product Description

Aluminum Profile Connections Use Stainless Steel Pan Head Screws

Product Description:

These screws are perfect for use in a variety of applications, including securing components in machinery, as well as in construction and woodworking projects. The coarse thread type ensures that the screw is securely fastened, providing a reliable and long-lasting connection.

Each package of Pan Head Screws contains between 100 and 1000 pieces, depending on the quantity selected. This makes it easy to purchase the exact amount needed for any project, whether it is a small DIY project or a large-scale industrial application.

Screw bolt studs, dowel screw turn bolts, and dowel screw turn bolts are just a few of the many applications for which these screws are suitable. With their high-quality construction and versatile design, they are an essential tool for anyone in the machinery industry.

Features:

Product Name: Pan Head Screw
Package Quantity: 100-1000
Thread Type: Coarse
Grade: 8.8-12.9
Tolerance: 24-48H
Usage: General Purpose

This Pan Head Screw is a versatile screw bolt that can be used for a variety of purposes including as a control screw pile bolt, control screw pile bolt, screw bolt studs. It comes in a package quantity ranging from 100 to 1000 and has a coarse thread type. With a grade of 8.8-12.9 and tolerance of 24-48H, this screw is perfect for general purpose use.

Technical Parameters:

Aluminum Pan Head Screws M4 Stainless Steel Screws Grade 8.8 0

d		M3	M4	M5	M6	M8	M10	M12	M16
P		0.5	0.7	0.8	1	1.25	1.5	1.75	2
b	Standard	18	20	22	24	28	32	36	44
dk	Max	5.7	7.6	9.5	10.5	14	17.5	21	28
dk	Min	5.4	7.24	9.14	10.07	13.57	17.07	20.48	27.48
ds	Max	3	4	5	6	8	10	12	16
ds	Min	2.86	3.82	4.82	5.82	7.78	9.78	11.73	15.73
k	Max	1.65	2.2	2.75	3.3	4.4	5.5	6.6	8.8
k	Min	1.4	1.95	2.5	3	4.1	5.2	6.24	8.44
t	Min	1.04	1.3	1.56	2.08	2.6	3.12	4.16	5.2
e	Min	2.30	2.87	3.44	4.58	5.72	6.86	9.15	11.43
s	Standard	2	2.5	3	4	5	6	8	10
	Max	2.08	2.58	3.08	4.10	5.14	6.14	8.18	10.18
	Min	2.02	2.52	3.02	4.02	5.02	6.02	8.03	10.03

Applications:

The pan head screw is designed for general-purpose use and is commonly used in the machinery industry. Its application scope includes screw bolt studs, control screw pile bolts, and other similar uses. The thread type for this product is coarse, and it comes with fully or half-threaded options. It is available in package quantities ranging from 100-1000 pieces, depending on the customer's needs.
