Bugle Head Screw

Stainless Steel Wood Working Screws Corrosion Resistant Dry Wall Screw Coarse Thread

All Category

Cabinet Gas Spring

Ms. Amylin

amylin@ybfasteners.com

+8618658229310

Contact Now

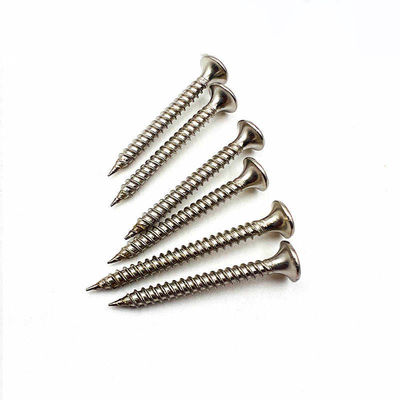

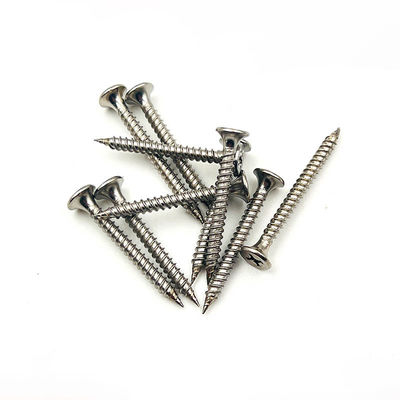

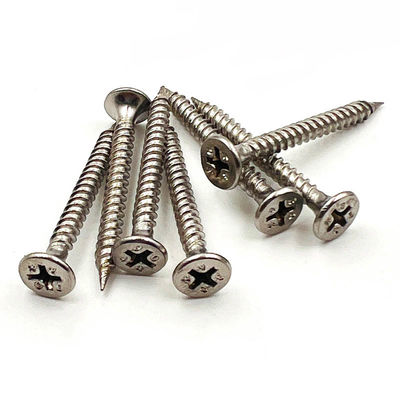

Stainless Steel Wood Working Screws Corrosion Resistant Dry Wall Screw Coarse Thread

Brand Name:	YONGBIAO
Model Number:	DIN18182
MOQ:	1tons
Price:	EXW MIN Price 2750USD/tons
Packaging Details:	Carton Box/Pallet/Customized
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

ZHEJAING CHINA

Certification:

ISO9001

Name:

Wood Working Screws

Usage:

Woodworking

Thread Diameter:

3.5-5.5mm

Rust Resistant:

Length:

25-130mm

Material:

Stainless Steel 304

Sharpness:

Drive Style:

Phillips

Thread Type:

Coarse

Price 1-3tons:

2860USD

Price 3-5tons:

2800USD

Supply Ability:

200-300Tons/month

Highlight:

Stainless Steel Wood Working Screws

Wood Working Screws Corrosion Resistant

Dry Wall Screw Coarse Thread

Product Description

Stainless Steel Woodworking Bugle Head Screw With Coarse Thread Dry Wall Screw

Company Certificate:

Stainless Steel Wood Working Screws Corrosion Resistant Dry Wall Screw Coarse Thread 4

Product Description:

Drywall Screws Application:

Drywall screws (self tapping screws) are the main fasteners used to fix

gypsum boards in indoor decoration, especially suitable for ceiling and

partition construction.During installation, it is necessary to use fine thread

dry wall nails (suitable for light steel keel) or coarse thread drywall screws

(suitable for wooden keel), with a length of usually 25-35mm (single-layer

board) or 38-50mm (double-layer board).During construction, screws

should be evenly inserted into the keel at a spacing of 15-20cm, and the

screw's head should be slightly recessed (1-2mm below the board

surface) for subsequent coating coverage.For the ceiling, it is

recommended to increase the spacing to 10-15cm to enhance load-

bearing capacity; A distance of 10-15cm should be reserved at the edge of

the partition wall to avoid cracking.Normal use of black phosphating

drywall nails can be replaced with galvanized or stainless steel materials

in damp areas such as kitchens and bathrooms to ensure long-term

stability.

Drywall Screws Advantage:

Easy installation and high construction efficiency

Drywall screws are self tapping designs that do not require pre drilling and can

directly penetrate gypsum boards and keels (wood/light steel). If carbon steel or

410 stainless steel is used as the material, an electric screwdriver can be used to

quickly fix them in bulk, improving construction efficiency.

Cost economy

Drywall screws are inexpensive and have uniform specifications, making them

suitable for large-scale construction and reducing material and labor costs.

High strength fixation

The thread design (coarse/fine) of drywall screws is suitable for different keel

materials, with strong grip to avoid loosening or sagging of gypsum boards.Dry wall

screws, also known as horn screws, have a "horn shaped" design that disperses

pressure and reduces the risk of surface cracking on gypsum boards.

Technical Parameters:

Stainless Steel Wood Working Screws Corrosion Resistant Dry Wall Screw Coarse Thread 11

d		3.5	4	4.3	5.1	5.5
d	Max	3.7	4	4.3	5.1	5.5
d	Min	3.4	3.7	4	4.8	5.2
dk	Max	8.5	8.5	8.5	8.5	8.5
dk	Min	8.14	8.14	8.14	8.14	8.14
L	25-130mm

Drive Style	Phillips
Corrosion Resistance	Yes
Thread Diameter	3.5-5.5mm
Head Style	Bugle Head
Thread Type	Coarse
Length	25-130mm

This table describes the technical parameters of a black fine thread gypsum board drywall screw or wood drywall screw or black drywall screw with bugle head that has a length of 25-130mm, a thread diameter of 3.1-5.2mm, a coarse thread type, high sharpness, and high durability.

Application:

Stainless Steel Wood Working Screws Corrosion Resistant Dry Wall Screw Coarse Thread 12

Packaging:


Carton Packaging	Outer Cartonbox Packaging	Pallet Packaging
Bolts are packed in neutral packaging boxes, with standard quantities arranged in small cartons. The exact number of units per carton will be confirmed with the customer to align with their specific requirements. Customized packaging configurations are available upon request.	The small cartons are then consolidated into larger master cartons for secure transportation and storage. The quantity per master carton can be customized based on client specifications or aligned with standard logistical requirements.	The palletized units are securely wrapped with waterproof film and reinforced with packaging straps. Customer-specific shipping marks or labels are affixed to each pallet, ensuring clear identification and compliance with logistics requirements. This final packaging stage guarantees weather-resistant protection and stability during transportation.
