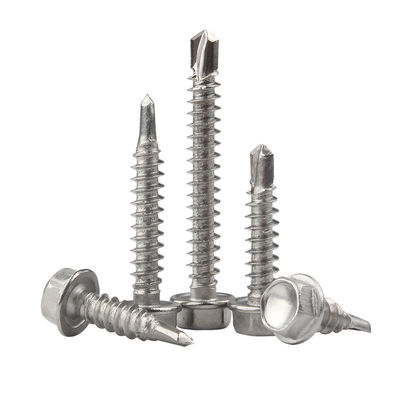

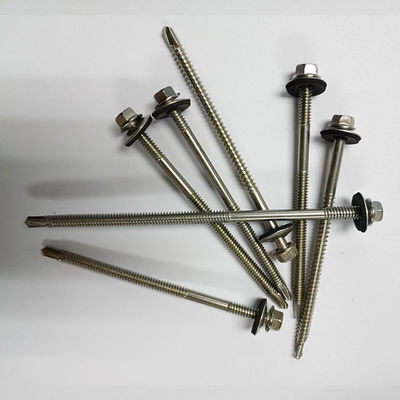

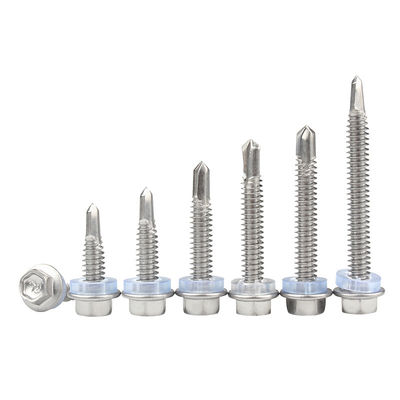

DIN15480 Carbon Steel Self Drilling Screw ST3.5 ST4.2 Hex Washer Head

Brand Name:	YongBiao
Model Number:	ST5.5
MOQ:	10000
Price:	Negotiation
Packaging Details:	Carton Box
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

ZHEJAING CHINA

Certification:

ISO9001

Name:

Self Drilling Screw

Usage:

General Purpose

Sample:

Drive Type:

Hexagon

Thread Size:

Type:

Magnetic Screwdriver

Material:

Carbon Steel

Scope Of Application:

Building

Package:

Carton,pallet

Grade:

4.8/6.8/8.8/10.9/12.9

Package Quantity:

Head Type:

Hex Head, Flat Head, Csk Head, Round Head

Port:

NINGBO Or SHANGHAI

Trade Term:

EXW/FOB/CIF/DDP/DDU

Standard:

DIN, ANSI, GB, JIS,Customized

Supply Ability:

500tons/month

Highlight:

Carbon Steel Self Drilling Screw

Self Drilling Screw ST3.5

ST4.2 Hex Washer Head Screw

Product Description

Carbon Steel With Washer Self Drilling Screw

These screws have a drill point that allows them to create their own hole in the material, eliminating the need for pre-drilling. This feature significantly speeds up the installation process.Commonly used in metal roofing, siding, and framing applications.

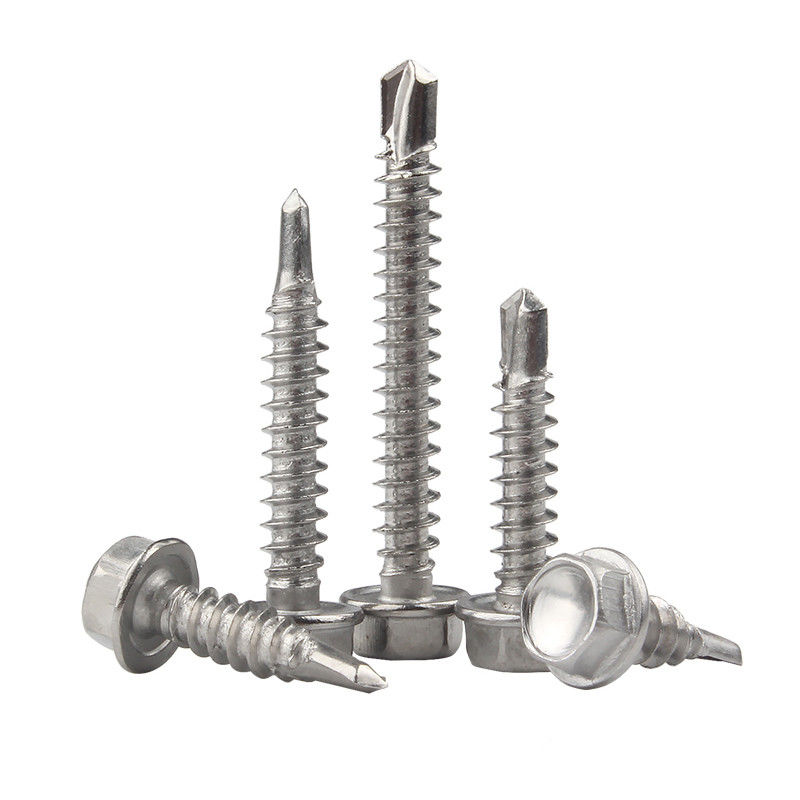

DIN15480 Carbon Steel Self Drilling Screw ST3.5 ST4.2 Hex Washer Head

DIN7504K (Unit:mm)
Diameter d		ST3.5	ST4.2	ST4.8	ST5.5	ST6.3
Pitch p		1.38	1.4	1.6	1.8	1.8
dc	max	8.30	8.80	10.50	11.00	13.56
	min	7.6	8.1	9.8	10	12.2

S	max	5.5	7.8	8	8	10

	min	5.32	6.78	7.78	7.78	9.78
k	max	3.4	4.1	4.3	5.4	5.9
	min	3	3.6	3.8	4.8	5.3

L		9.5,13,16,19,22,25,32,38,45,50,60,65,70,75,80,85,90,95,100,125,135,145,150,165,180,200,220

Applications

Construction: Commonly used in metal roofing, siding, and framing applications.

Manufacturing: Ideal for fastening metal panels, brackets, and other components in various machinery and equipment.

DIY Projects: Useful for home improvement tasks that involve metal or wood.

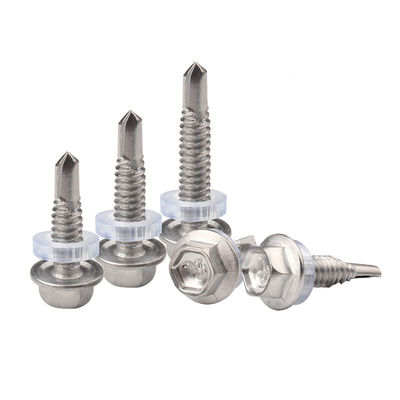

DIN15480 Carbon Steel Self Drilling Screw ST3.5 ST4.2 Hex Washer Head
