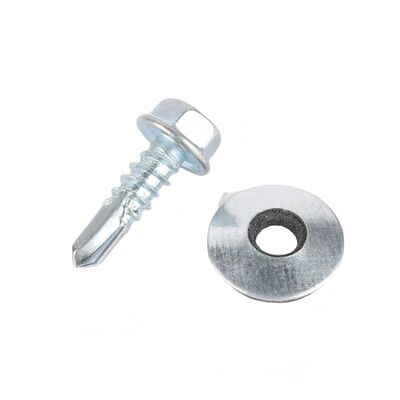

Carbon Steel Roofing Screws: Hex Socket Self-Drilling Fasteners with EPDM Gaskets

Brand Name:	YB
Model Number:	DIN7504K
MOQ:	20000
Price:	Negontiation
Packaging Details:	5000-10000/box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

ZheJiang,China

Certification:

ISO9001,IATF16949

Trade Mark:

YONGBIAO

Drivetype:

Model:

Usage:

For Fastening Metal To Metal

Quality Control:

Insepected

Trade Terms:

EXW,FOB,CIF,DDU,DDP

Head Type:

Hex Washer Head

Supply Ability:

5000Tons/year

Highlight:

carbon steel roofing screws with EPDM gaskets

hex socket self-drilling fasteners

self drilling screws for roofing

Product Description

Carbon Steel Roofing Screws: Hex Socket Self-Drilling Fasteners with EPDM Gaskets

Product Overview

These DIN 7504K self-drilling screws are high-performance industrial fasteners featuring hexagonal washer heads and specialized drill points. Manufactured from Grade 410 stainless steel, these screws drill their own pilot holes, tap mating threads, and provide secure fastening in a single operation. Grade 410 martensitic stainless steel can be heat-treated for enhanced hardness, making it superior to 304 or 316 grades for metal-to-metal applications.

Core Features

Exceptional Hardness: Heat-treatable 410 grade steel penetrates carbon steel sheets and harder substrates without tip burnout
Time-Saving Efficiency: Integrated drill point eliminates pre-drilling and hole alignment, reducing installation time and labor costs
Corrosion Resistance: Reliable protection against atmospheric corrosion, water, and mild chemicals in humid environments
High Torque Strength: Hexagonal head design ensures maximum torque transmission and prevents cam-out during power tool installation
Integrated Sealing: Compatible with EPDM bonded washers for leak-proof seals in outdoor and roofing applications

Application Scenarios

Steel construction and metal framing for industrial buildings
Roofing and cladding systems requiring weather resistance and structural integrity
HVAC systems for securing ductwork and mounting equipment components
Automotive and machinery assembly lines with high-speed fastening requirements
Solar energy systems for mounting panel brackets to aluminum or steel support rails

Technical Specifications

螺纹规格	ST2.9	ST3.5	(ST3.9)	ST4.2	ST4.8	(ST5.5)	ST6.3
P \| 螺距	1.1	1.3	1.3	1.4	1.6	1.8	1.8
a \| max	1.1	1.3	1.3	1.4	1.6	1.8	1.8
c \| min	0.4	0.6	0.6	0.8	0.9	1	1
dc \| max	6.3	8.3	8.3	8.8	10.5	11	13.5
min	5.8	7.6	7.6	8.1	9.8	10	12.2
e \| min	4.28	5.96	5.96	7.59	8.71	8.71	10.95
k \| max	2.8	3.4	3.4	4.1	4.3	5.4	5.9
min	2.5	3	3	3.6	3.8	4.8	5.3
kw \| min	1.3	1.5	1.5	1.8	2.2	2.7	3.1
r \| max	0.4	0.5	0.5	0.6	0.7	0.8	0.9
s \| max	4	5.5	5.5	7	8	8	10
min	3.82	5.32	5.32	6.78	7.78	7.78	9.78
dp	2.3	2.8	3.1	3.6	4.1	4.8	5.8
Drilling range	0.7~1.9	0.7~2.25	0.7~2.4	1.75~3	1.75~4.4	1.75~5.25	2~6

Packaging Options

Carton Packaging: Bolts are packed in neutral packaging boxes with standard quantities arranged in small cartons. Exact unit counts are confirmed with customers, and customized configurations are available.

Outer Carton Box Packaging: Small cartons are consolidated into larger master cartons for secure transportation and storage. Quantities can be customized based on client specifications.

Pallet Packaging: Palletized units are securely wrapped with waterproof film and reinforced with packaging straps. Customer-specific shipping marks ensure clear identification and compliance with logistics requirements.
