Heavy-Duty GB96.2 Carbon Steel Fender Washers | Class 4.8 Galvanized Surface

Brand Name:	YB
Model Number:	GB96.2
MOQ:	20000
Price:	Negontiation
Packaging Details:	5000-10000/box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

ZheJiang,China

Certification:

ISO9001,IATF16949

Finish:

Plain,Passivated,Anodizing,zinc Plated,hot Dip Galv.etc.

Color:

Package:

PE Bag /carton Box Or Customized,Cartons&pallets Or According To Customer's Requirement.,Carbon Box+plastic Bags

Payment Term:

EXW, Fob,CIF,etc

Cross Recess:

Type C

Manufacturer:

YONGBIAO

Quantity:

1000pieces/Package

Application:

General Fastening

Delivery Port:

NingBo/ShangHai

Supply Ability:

5000Tons/year

Highlight:

Heavy-Duty GB96.2 Carbon Steel Washers

Class 4.8 Galvanized Fender Washers

Carbon Steel Spring Lock Washers

Product Description

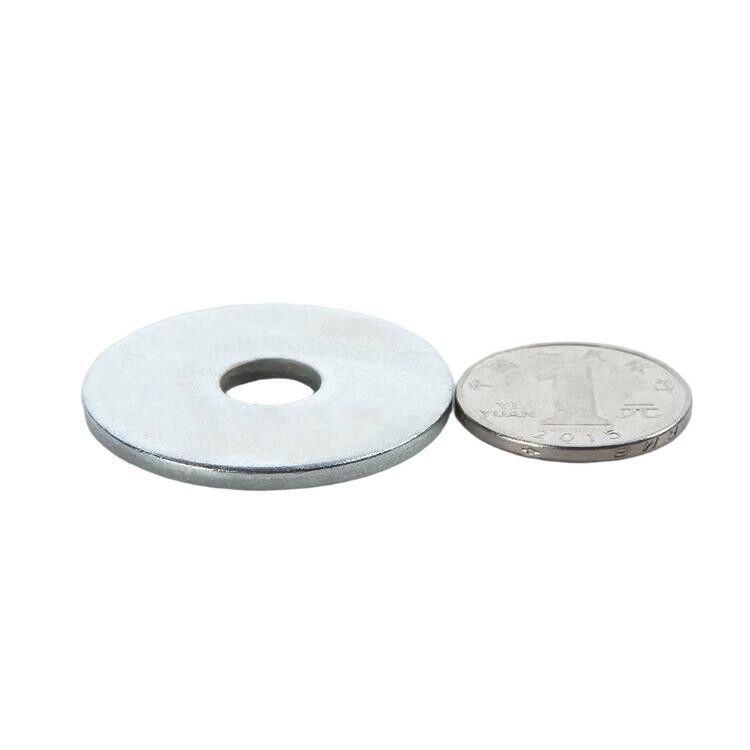

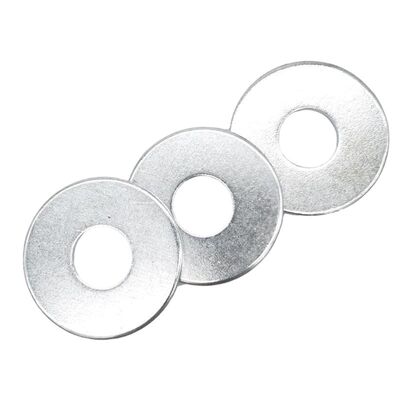

Heavy-Duty GB96.2 Carbon Steel Fender Washers | Class 4.8 Galvanized Surface

Product Overview

GB 96.2 Class 4.8 Carbon Steel Large Outer Diameter Flat Washers are engineered to distribute fastener loads across a larger surface area, minimizing stress concentration and preventing deformation on thin-sheet metal, soft materials, or oversized bolt holes.

Manufactured from high-quality low-carbon steel with protective bright zinc plating, these fender washers deliver consistent dimensional accuracy, excellent corrosion resistance, and reliable structural support for machinery, construction, and automotive applications.

Key Features & Advantages

Large Load-Bearing Surface: Designed per GB 96.2 standards, the expanded outer diameter (OD) distributes tightening torque evenly, protecting workpieces from surface damage.
Reliable Class 4.8 Strength: Processed to strict mechanical property standards with optimized ductility and moderate tensile strength for non-critical structural fastening.
Corrosion-Resistant Zinc Finish: Electro-galvanized coating provides protection against moisture, oxidation, and rust in indoor and general industrial environments.
Precision Stamping & Smooth Edges: Advanced stamping technology ensures uniform thickness, flat surfaces, and minimal burrs for seamless assembly line integration.

Technical Specifications

Parameter / Feature	Specification Details
Standard	GB/T 96.2 (Large Series Flat Washers)
Material	Low Carbon Steel (Q195 / Q235 or equivalent)
Property Class	Class 4.8
Surface Treatment	Electro-Zinc Plated (Cr3+ Blue-White / Yellow / Clear)
Size Range	M3 - M36 (Custom sizes available upon request)
Hardness Range	100 HV - 200 HV
Salt Spray Test	Neutral Salt Spray (NSS) 24h - 72h (Customizable)
Application	Construction, Electrical Equipment, Woodworking, Sheet Metal Assembly

Dimensional Specifications

d	Φ3	(Φ3.5)	Φ4	Φ5	Φ6	Φ8	Φ10	Φ12
d MIN	3.4	3.9	4.5	5.5	6.6	9	11	13.5
d Max	3.7	4.2	4.8	5.8	6.96	9.36	11.43	13.93
dc MIN	5.85	7.81	9.81	11.77	12.77	13.77	14.77	15.77
dc Max	5.97	7.96	9.96	11.95	12.95	13.95	14.95	15.95
h Max	1	1	1.2	1.2	1.9	2.3	2.8	3.6
h Min	0.6	0.6	0.8	0.8	1.3	1.7	2.2	2.4

Applications & Industry Uses

GB 96.2 large series flat washers are widely applied in scenarios requiring enhanced load distribution:

Sheet Metal Assembly: Prevents pull-through on soft or thin steel panels
Timber & Structural Joints: Spreads pressure on wood or softer composite substrates to reduce crushing
Automotive & Industrial Machinery: Buffers vibration and maintains joint stability over extended operation
General Hardware & Infrastructure: Used in steel framing, enclosures, and electrical rack mountings

Quality Control & Manufacturing Standards

Every batch of GB 96.2 carbon steel washers undergoes rigorous quality inspections to ensure full compliance with international buyer expectations:

Dimensional Testing: Caliper and gauge verification of inner diameter (ID), outer diameter (OD), and thickness
Plating Thickness Check: Magnetic thickness testing for uniform zinc layer coverage
Mechanical & Surface Inspection: Visual burr detection and load tolerance testing before packaging

Packaging & Logistics Options

Standard Export Packaging: Bulk in 20/25 kg cartons + fumigated wooden pallets
Small Box Packaging: Customized polybags or small inner boxes with custom barcode labeling
Port of Loading: Ningbo / Shanghai / Lianyungang, China
Trade Terms: FOB, CFR, CIF, DDP, DAP

Frequently Asked Questions (FAQ)

Q1: What is the main difference between GB 96.2 and standard GB 97.1 flat washers?

A: GB 96.2 features a significantly larger outer diameter (approximately 3× the nominal thread diameter), making it ideal for soft materials, elongated holes, or high-torque load distribution compared to standard GB 97.1 washers.

Q2: Can you provide customized salt spray testing for higher corrosion protection?

A: Yes, we can offer thicker electro-zinc coatings or passivation processes (such as yellow zinc or ROHS-compliant trivalent chromium) to meet specific salt spray resistance requirements (e.g., 48h to 96h).

Q3: Are samples available before placing a bulk order?

A: Yes, standard size samples are provided free of charge for quality verification and fit testing. Shipping fees apply.
