Stainless Steel Screw

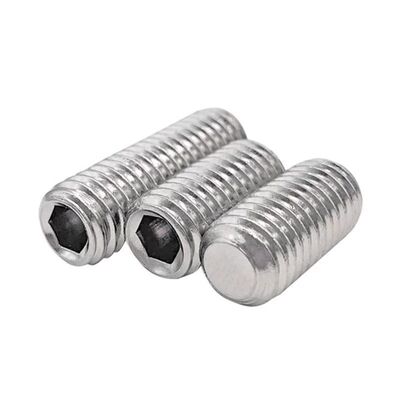

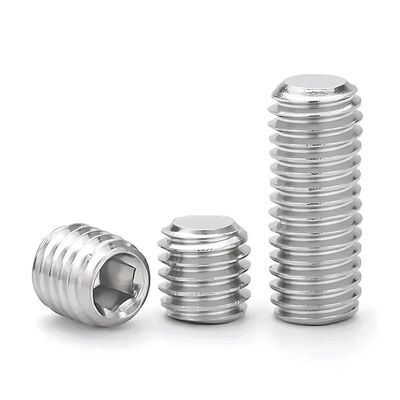

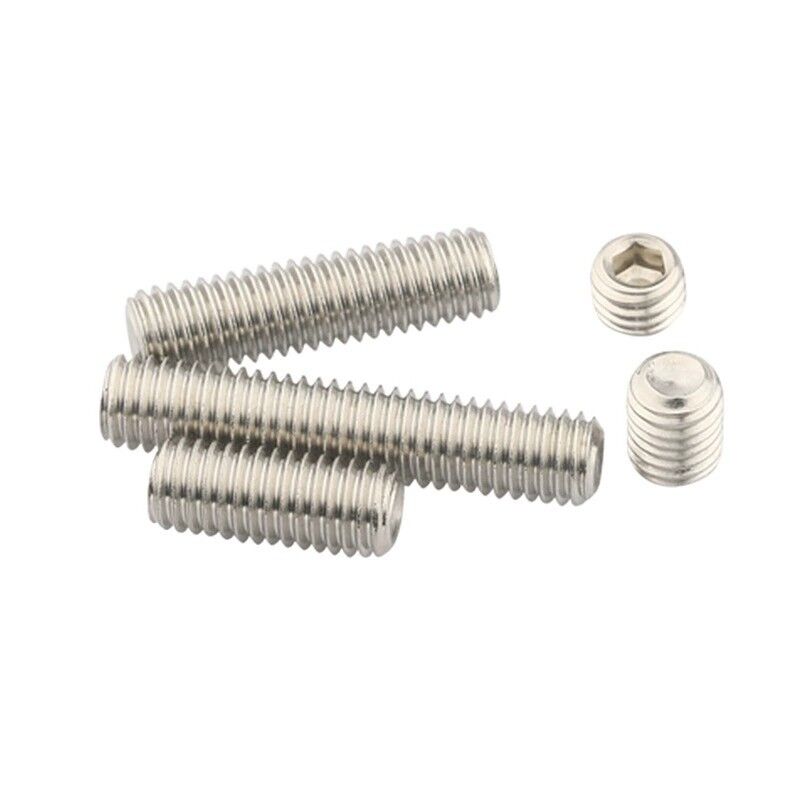

DIN913 SS304 Hex Socket Flat Point Headless Set Screw

All Category

Plastic Bolt

Ms. Amylin

amylin@ybfasteners.com

+8618658229310

Contact Now

DIN913 SS304 Hex Socket Flat Point Headless Set Screw

Brand Name:	YB
Model Number:	DIN913
MOQ:	20000
Price:	Negontiation
Packaging Details:	5000-10000/box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

ZheJiang,China

Certification:

ISO9001,IATF16949

Grade:

4.8,B8,5.6,10.9,8.8

Name:

Set Screw

Length:

13--152mm,4mm 6mm 8mm 10mm 12mm 14mm 20mm 30mm 40mm,3mm-60mm,10-50mm,16mm-120mm

Drive Type:

Sample:

Available,5-8 PCS Samples FREE,free,Avaliable (shipping Costs Needed)

Package:

PE Bag /carton Box Or Customized,Cartons&pallets Or According To Customer's Requirement.,Carbon Box+plastic Bags

Supply Ability:

5000Tons/year

Highlight:

DIN913 stainless steel set screw

SS304 hex socket screw

flat point headless screw

Product Description

DIN913 SS304 Hex Socket Flat Point Headless Set Screw

Our DIN 913 Hexagon Socket Set Screws with Flat Point are manufactured from premium-grade AISI 304 (A2-70) stainless steel, engineered to deliver exceptional corrosion resistance, high tensile strength, and precise mechanical alignment.

Featuring a headless design with a flush flat point, these socket set screws (also known as grub screws) are designed to press flat against target surfaces without marring or causing structural deformation. They are widely used in machinery, automotive components, electronics, gears, and precision industrial assemblies.

Technical Specifications

Name	DIN913 Grub Screw
SPEC	M1.4-M12
Material	Carbon Steel/Stainless Steel
Head Type	Hex Socket
Application	Automobile

Dimension Table (mm)

d	M1.4	M1.6	M2	M2.5	M3	M4	M5	M6
P	0.3	0.35	0.4	0.45	0.5	0.7	0.8	1
dp max	0.7	0.8	1	1.5	2	2.5	3.5	4
dp min	0.45	0.55	0.75	1.25	1.75	2.25	3.2	3.7
e min	0.803	0.803	1.003	1.427	1.73	2.3	2.87	3.44
s dn	0.7	0.7	0.9	1.3	1.5	2	2.5	3
s max	0.724	0.724	0.902	1.295	1.545	2.045	2.56	3.08
s min	0.711	0.711	0.889	1.27	1.52	2.02	2.52	3.02
t(min) Short screw	0.6	0.7	0.8	1.2	1.2	1.5	2	2
t(min) Long screw	1.4	1.5	1.7	2	2	2.5	3	3.5

Key Features & Advantages

Flush & Space-Saving Design: The headless (flat top) design sits fully flush with or below the surface, making it ideal for compact assemblies with tight spatial clearances.
Non-Marring Flat Point: Designed with a smooth, precision-machined flat end that exerts firm clamping pressure without marring, scratching, or deforming mating components.
High Torque Transmission: The internal hex socket (Allen drive) allows for deep key engagement, enabling higher tightening torque while reducing the risk of cam-out or socket stripping.
Precision Thread Alignment: Features clean, burr-free metric threads for smooth insertion, tight tolerances, and maximum resistance to thread stripping under heavy vibration.
Versatile Material Options: Available in Stainless Steel (SS304/SS316 / A2-70/A4-80) for superior corrosion resistance, as well as Grade 12.9 Alloy Steel / 45H for heavy-duty industrial applications.

Typical Industrial Applications

Industrial Machinery: Securing gears, pulleys, and collars onto rotating shafts.
Automotive & Aerospace: High-vibration structural components requiring flush-mount fasteners.
Electronics & Medical Devices: Precision internal assemblies with space restrictions.
Hardware & Fixtures: Door handles, locks, and architectural hardware fittings.

Why Partner With Us?

Integrated Supply Chain Advantage: Based in the Yangtze River Delta manufacturing zone, we offer efficient lead times and competitive direct-factory pricing.
Custom Stamping Capabilities: We can develop custom tooling for your specific internal/external diameter specifications when standard dimensions don't fit.
Material Guarantee: 100% verifiable 304 stainless steel with Material Test Certificates (MTC) and SGS reports available for every batch.
B2B Logistics Expertise: Flexible trade terms including FOB, CIF, and CPT with secure bulk packaging for international transit protection.
