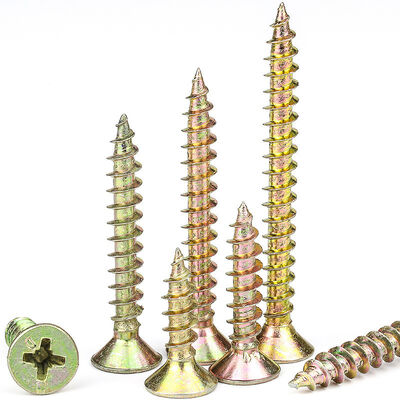

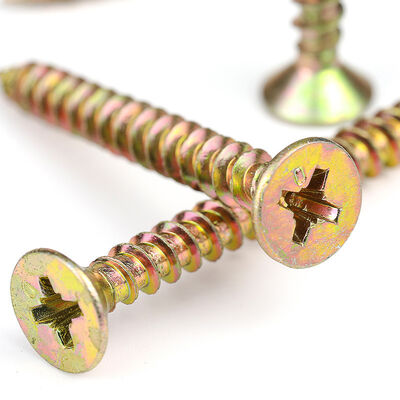

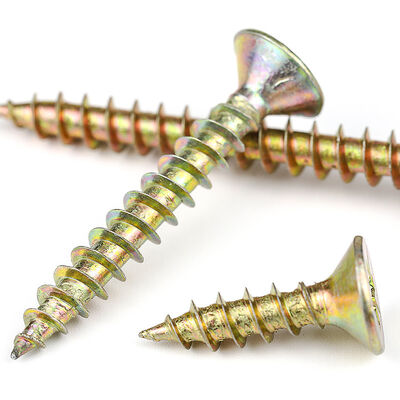

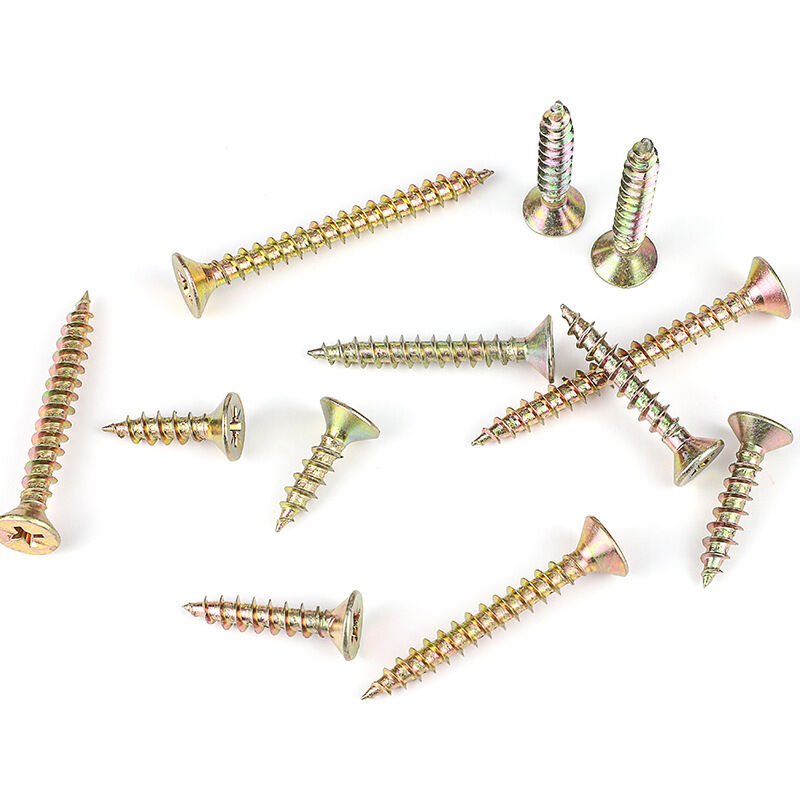

DIN7505 High Precision Steel Yellow Zinc Plated Phillips Countersunk Chipboard Screws

Brand Name:	YB
Model Number:	DIN7505
MOQ:	10000
Price:	FOB Price:0.01-0.5USD/PCS
Packaging Details:	Carton Box/Pallet/Customized
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

ZheJiang China

Certification:

ISO9001,TUV

Drive Style:

Phillips

Quantity:

1000pieces/Package

Keywords:

Chipboard Screws

Headtype:

Countersunk

Part Number:

DIN7505

Manufacturer:

YB FASTNER Company

Threadtype:

Self Tapping Screw

Productname:

Pan Head Screw

Supply Ability:

5000000Tons/Year

Highlight:

high precision steel chipboard screws

yellow zinc plated countersunk screws

DIN7505 self tapping screws

Product Description

DIN7505 High Precision Steel Yellow Zinc Plated Phillips Countersunk Chipboard Screws

Professional Chipboard Fastening Solution

Product Overview

DIN7505 chipboard screws are professional-grade fasteners tailored for wood-based panel applications, adhering strictly to the German DIN 7505 standard—ensuring consistent quality, dimensional accuracy, and reliable performance trusted by global users.

Core Structural & Functional Features

Material: Crafted from high-tensile carbon steel (e.g., C1022, C1018) for exceptional strength, resisting deformation and breakage under load.
Surface Treatments: Available in electro-galvanized (Zn), hot-dip galvanized (HDG), and phosphate (Phos) coatings. Electro-galvanized for indoor dry environments; HDG for enhanced corrosion resistance in mild outdoor/humid conditions; Phos for improved paint adhesion, ideal for pre-finished projects.
Design Features: Full coarse thread for maximum grip in chipboard, MDF, plywood, and particleboard; sharp self-tapping point eliminates pre-drilling (for most panels), reducing installation time and board splitting risk; compatible with Phillips (PH), Torx (TX), or Hex (Allen) drives for versatile tool use.

Application Scenarios

Perfect for furniture assembly (flat-pack furniture, cabinets, wardrobes), woodworking projects (shelves, fixtures), light construction (interior trim, wooden frames), and industrial manufacturing (furniture production lines). Suitable for both professional tradespeople and DIY enthusiasts seeking efficient, long-lasting fastening solutions.

Quality Assurance

Each batch undergoes rigorous testing for tensile strength, shear resistance, and coating adhesion, complying with international quality standards. Consistent sizing ensures compatibility with standard tools and wood-based panels, delivering stable, vibration-resistant fastening that maintains structural integrity over time.

Customization Options

Available in a full range of sizes (shank diameter: 3.5mm-6.0mm; length: 16mm-100mm) to meet diverse project requirements. Custom packaging (bulk, small boxes, blister packs) and private labeling services are also offered for business needs.

Reliable, efficient, and built to last—DIN7505 chipboard screws are the go-to choice for secure wood-based panel fastening across residential, commercial, and industrial applications.

Technical Specifications

M	2.5	3	3.5	4	4.5	5	6
D max	2.5	3	3.5	4	4.5	5	6
D min	2.25	2.75	3.2	3.7	4.2	4.7	5.7
P	1.1	1.35	1.6	1.8	2	2.2	2.6
a max	2.1	2.35	2.6	2.8	3	3.2	3.6
dk max	5	6	7	8	9	10	12
dk min	4.7	5.7	6.64	7.64	8.64	9.64	11.57
k ≈	1.4	1.8	2	2.35	2.55	2.85	3.35
dp max	1.5	1.9	2.15	2.5	2.7	3	3.7
dp min	1.1	1.5	1.67	2.02	2.22	2.52	3.22

Packaging Options

Carton Packaging

Bolts are packed in neutral packaging boxes, with standard quantities arranged in small cartons. The exact number of units per carton will be confirmed with the customer to align with their specific requirements. Customized packaging configurations are available upon request.

Outer Carton Box Packaging

The small cartons are then consolidated into larger master cartons for secure transportation and storage. The quantity per master carton can be customized based on client specifications or aligned with standard logistical requirements.

Pallet Packaging

The palletized units are securely wrapped with waterproof film and reinforced with packaging straps. Customer-specific shipping marks or labels are affixed to each pallet, ensuring clear identification and compliance with logistics requirements. This final packaging stage guarantees weather-resistant protection and stability during transportation.
