Hex Head Bolt

Class 4.8-12.9 DIN6921 Hexagon Head Flange Bolt

All Category

CNC Machining Parts

Ms. Amylin

amylin@ybfasteners.com

+8618658229310

Contact Now

Class 4.8-12.9 DIN6921 Hexagon Head Flange Bolt

Brand Name:	YONGBIAO
Model Number:	GB/DIN/ISO
MOQ:	800KG
Price:	0.1-1USD/PCS
Packaging Details:	Carton Box/PE Bag
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

ISO9001

Trademark:

Material:

Steel

Application Scope:

Automobile Industry

Type:

DIN6921 Hex Head Flange Bolt

Shape:

Hex With Flange Head

Thread Type:

Coarse

Project:

DIN6921

Customized:

Available

Highlight:

Class 4.8 DIN6921 flange bolt

Hexagon head flange bolt 12.9

Hex head bolt DIN6921

Product Description

Class 4.8-12.9 DIN6921 Hexagon Head Flange Bolt

Product Description

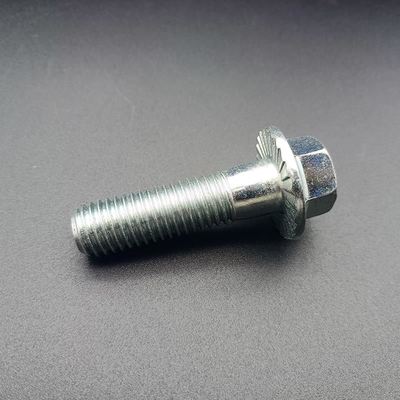

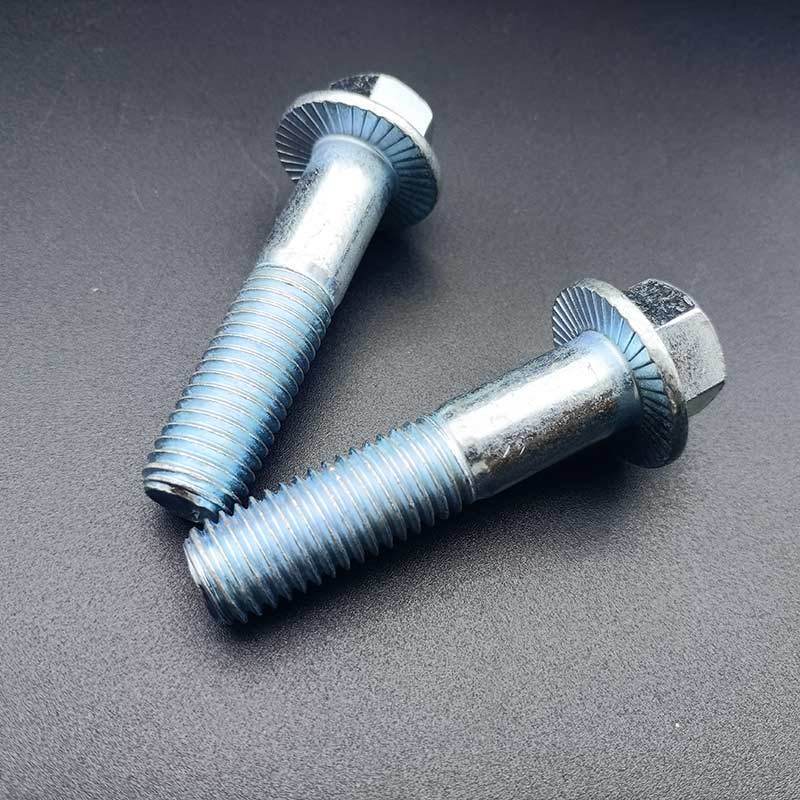

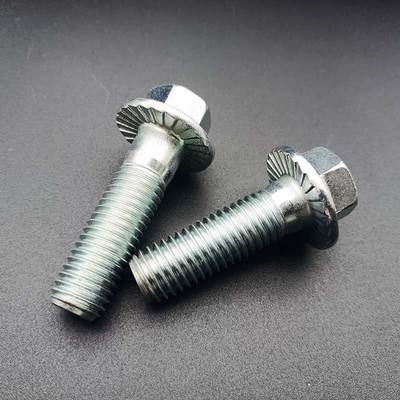

DIN6921 Hexagon Head Flange bolt is a type of hexagon head bolt with a built-in flange. It combines the easy operation characteristics of hexagon bolts with the anti-slip fastening advantages of flange structures. This design allows for stable connections without the need for additional gaskets.

Features

Core Structure

The bolt head is a standard hexagonal shape, compatible with tools such as wrenches, making it easy to quickly tighten and disassemble.

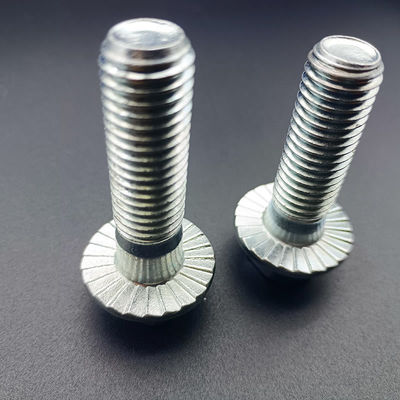

The lower part of the head is integrally formed with a ring-shaped flange surface, some of which have anti-slip serrations to enhance the locking effect.
The rod is designed with full or half threads according to the connection requirements to ensure effective engagement with the nut.
Other standards: German DIN 931/933, American ANSI B18.2.1, etc.

Core Strengths

Increase the contact area of the flange surface to evenly distribute pressure and reduce damage to the surface of the connecting parts.
The serrated flange surface can produce a mechanical locking effect, and its anti-vibration and anti-loosening effect far exceeds that of ordinary bolts, making it suitable for dynamic working conditions.
The integrated flange design eliminates the step of separately installing gaskets, simplifies the assembly process, and improves construction efficiency.

Technical Parameters

Screw Thread	M5	M6	M8	M10	M12	M14	M16	M20
P (Pitch)	0.8	1	1.25	1.5	1.75	2	2	2.5
Fine thread-1	/	/	1	1.25	1.5	1.5	1.5	1.5
Fine thread-2	/	/	/	1	1.25	/	/	/
b (L≤125)	16	18	22	26	30	34	38	46
b (125＜L≤200)	/	/	28	32	36	40	44	52
b (L＞200)	/	/	/	/	/	/	57	65
c (min)	1	1.1	1.2	1.5	1.8	2.1	2.4	3

Applications

These products are commonly applied across diverse industries, including automobiles, machinery, construction, home appliances, and pipeline engineering.

For instance, they play a crucial role in securing automotive chassis and engine components, facilitating the connection between the shell and bracket in mechanical equipment, ensuring the sealing and fastening of pipeline flanges, as well as aiding in the assembly of internal structures within household appliances like washing machines and air conditioners.
