Hex Head Bolt

Class 4.8-12.9 DIN6921 DINEN1665S Hexagon Head Flange Bolt

All Category

CNC Machining Parts

Ms. Amylin

amylin@ybfasteners.com

+8618658229310

Contact Now

Class 4.8-12.9 DIN6921 DINEN1665S Hexagon Head Flange Bolt

Brand Name:	YONGBIAO
Model Number:	GB/DIN/ISO
MOQ:	800KG
Price:	0.1-1USD/PCS
Packaging Details:	Carton Box/PE Bag
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

ISO9001

Usage:

Fastening Metal Pieces Together

Project:

DIN6921

Application Scope:

Automobile Industry

Shape:

Hex With Flange Head

Drive Type:

External Hex

Type:

DIN6921 Hex Head Flange Bolt

Material:

Steel

Available

Highlight:

Class 4.8 hex head flange bolt

DIN6921 hex head bolt

DINEN1665S flange bolt

Product Description

Class 4.8-12.9 DIN6921 DINEN1665S Hexagon Head Flange Bolt

Product Description

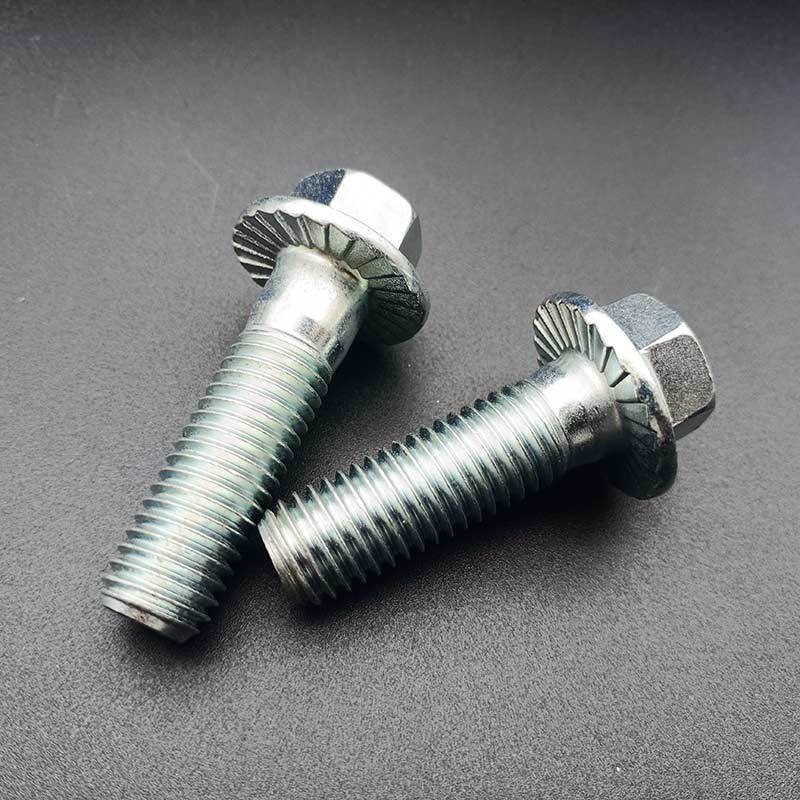

The DIN6921 DINEN1665S Hexagon Head Flange bolt is a specific type of bolt that features a hexagon head along with an integrated flange. This design combines the user-friendly aspects of hexagon bolts with the secure fastening benefits provided by flange structures. As a result, it enables stable connections to be established without the requirement of additional gaskets.

By incorporating the flange, this bolt design can help prevent slippage during fastening, making it particularly suitable for applications where a high level of security is necessary. The combination of the hexagon head and flange creates a versatile fastening solution that offers both ease of use and effective connection stability.

Features

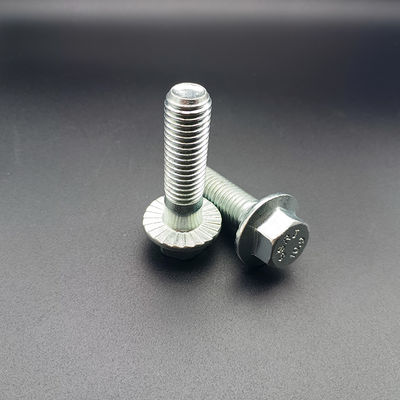

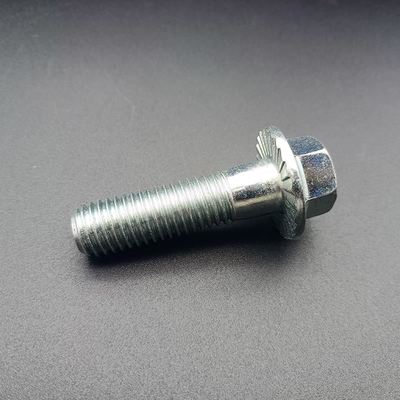

Core Structure: The bolt head is a standard hexagonal shape, compatible with tools such as wrenches, making it easy to quickly tighten and disassemble. The lower part of the head is integrally formed with a ring-shaped flange surface, some of which have anti-slip serrations to enhance the locking effect. The rod is designed with full or half threads according to the connection requirements to ensure effective engagement with the nut. Other standards include German DIN 931/933, American ANSI B18.2.1, etc.

Core Strengths:

Increase the contact area of the flange surface to evenly distribute pressure and reduce damage to the surface of the connecting parts.
The serrated flange surface can produce a mechanical locking effect, and its anti-vibration and anti-loosening effect far exceeds that of ordinary bolts, making it suitable for dynamic working conditions.
The integrated flange design eliminates the step of separately installing gaskets, simplifies the assembly process, and improves construction efficiency.

Technical Parameters

Screw Thread	M5	M6	M8	M10	M12	M14	M16	M20
P (Pitch)	0.8	1	1.25	1.5	1.75	2	2	2.5
Fine thread-1	/	/	1	1.25	1.5	1.5	1.5	1.5
Fine thread-2	/	/	/	1	1.25	/	/	/
b (L≤125)	16	18	22	26	30	34	38	46
b (125＜L≤200)	/	/	28	32	36	40	44	52
b (L＞200)	/	/	/	/	/	/	57	65
c (min)	1	1.1	1.2	1.5	1.8	2.1	2.4	3
da (Form A max)	5.7	6.8	9.2	11.2	13.7	15.7	17.7	22.4
da (Form B max)	6.2	7.4	10	12.6	15.2	17.7	20.7	25.7

Applications

Typical application areas include a wide range of industries, such as automobiles, machinery, construction, home appliances, and pipeline engineering. For instance, self-tapping screws are commonly utilized for tasks like securing automotive chassis and engine components, forming connections between the shell and bracket of mechanical equipment, sealing and fastening pipeline flanges, and assembling internal structures within household appliances such as washing machines and air conditioners.
