Self Tapping Screw

DIN968 Pan Head Self Tapping Screw Yellow Zinc Plated

All Category

Cabinet Gas Spring

Ms. Amylin

amylin@ybfasteners.com

+8618658229310

Contact Now

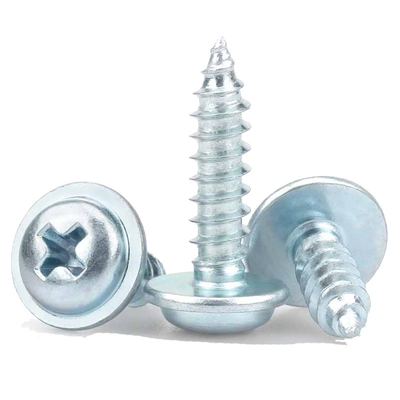

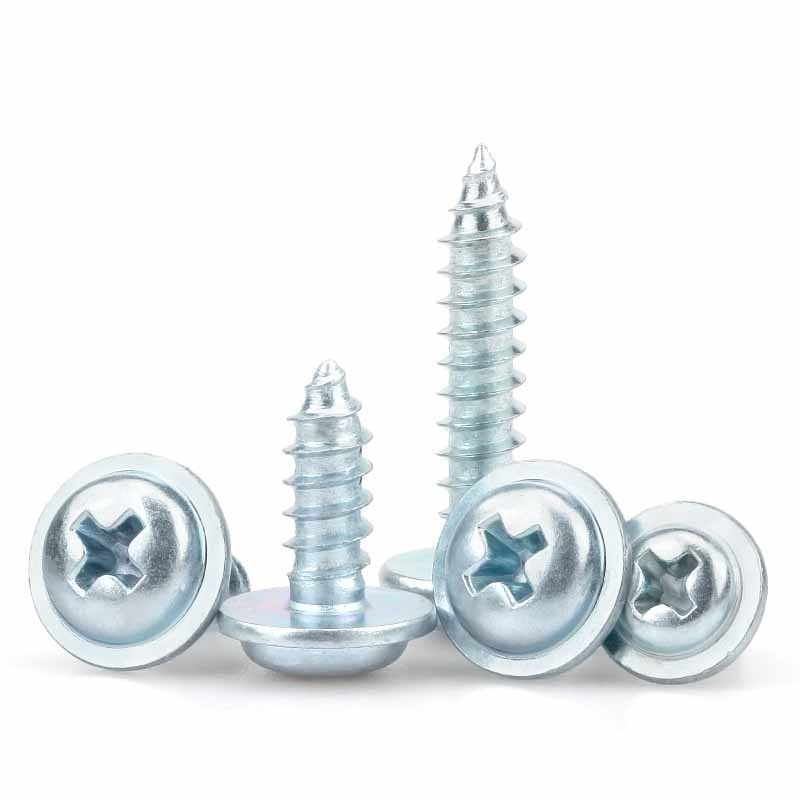

DIN968 Pan Head Self Tapping Screw Yellow Zinc Plated

Brand Name:	YONGBIAO
Model Number:	DIN968 Tapping Screw
MOQ:	800-1000KG
Price:	0.01-0.05
Packaging Details:	Plastic Bag / Paper Box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

ISO 9001

Application:

Wood, Metal, Plastic, Etc.

Compatibility:

Standard Drill/Driver

Color:

Yellow,White

Suraface Treatment:

Zinc Plated

Port:

Shanghai Or Ningbo

Customized Support:

OEM, ODM

Head Shape:

Pan Head

Suitable For:

Wood Or Furniture

Highlight:

DIN968 pan head self tapping screw

yellow zinc plated self tapping screw

pan head self tapping screw with warranty

Product Description

DIN968 Standard Drill/Driver Compatible Self Tapping Screw with Pan Head in Yellow

Product Attributes

Attribute	Value
Application	Wood, Metal, Plastic, Etc.
Compatibility	Standard Drill/Driver
Color	Yellow, White
Surface Treatment	Zinc Plated
Port	Shanghai Or Ningbo
Customized Support	OEM, ODM
Head Shape	Pan Head
Suitable For	Wood Or Furniture

Product Description

DIN968 is a standard for cross groove pan head self tapping screws developed by the German Institute for Standardization (DIN). These screws are commonly used for fastening connections between metal sheets and non-metallic materials.

The DIN968 standard self tapping screws feature a cross groove (H-type or Z-type) and are available with a pointed tail (C-type) or flat tail (F-type), making them suitable for tapping into hard materials. The head of these screws is designed in a Pan Head structure with gaskets, and they come in diameter specifications ranging from ST2.9 to ST6.3.

Key Features

DIN968 self-tapping screws are manufactured from:

Carbon steel (surface galvanized/nickel) with grade 8.8 boasting a minimum tensile strength of ≥ 400MPa
Stainless steel (SUS304 for corrosion resistance) with grade A2-70 adhering to a strength requirement of ≥ 700MPa

These screws align with the technical specifications of ISO 7049, ensuring consistent international quality standards.

Technical Parameters

Detailed specifications for various screw sizes:

Thread Size d	ST2.9	ST3.5	ST4.2	ST4.8	(ST5.5)	ST6.3
P (Pitch)	1.1	1.3	1.4	1.6	1.8	1.8
a (max)	1.1	1.3	1.4	1.6	1.8	1.8
dk (max=nominal size)	7.5	9	10	11.5	13	14.5
dk (min)	6.92	8.42	9.42	10.8	12.3	13.8
k (max=nominal size)	2.35	2.6	3.05	3.55	3.8	4.55
k (min)	2.1	2.35	2.75	3.25	3.5	4.25

Applications

DIN968 self-tapping screws are frequently employed for lightweight connections in various applications including:

Electrical enclosures
Building curtain walls
Medical devices

Their unique built-in pad design improves force uniformity and meets the anti-loosening needs of thin plates.

Company Certifications

Company Certification

Quality Certification

Industry Standard Certification

Packaging Options

Carton Packaging: Bolts are packed in neutral packaging boxes, with standard quantities arranged in small cartons. The exact number of units per carton will be confirmed with the customer to align with their specific requirements. Customized packaging configurations are available upon request.

Outer Cartonbox Packaging: The small cartons are then consolidated into larger master cartons for secure transportation and storage. The quantity per master carton can be customized based on client specifications or aligned with standard logistical requirements.

Pallet Packaging: The palletized units are securely wrapped with waterproof film and reinforced with packaging straps. Customer-specific shipping marks or labels are affixed to each pallet, ensuring clear identification and compliance with logistics requirements.
