DIN968 Metal for Standard Drill/Driver Compatibility

Brand Name:	YONGBIAO
Model Number:	DIN968 Tapping Screw
MOQ:	800-1000KG
Price:	0.01-0.05
Packaging Details:	Plastic Bag / Paper Box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

ISO 9001

Application:

Wood, Metal, Plastic, Etc.

Customized Support:

OEM, ODM

Suitable For:

Wood Or Furniture

Type:

Self Tapping Screw

Compatibility:

Standard Drill/Driver

Port:

Shanghai Or Ningbo

Suraface Treatment:

Zinc Plated

Head Shape:

Pan Head

Highlight:

metal self tapping screw

standard drill driver screw

self tapping screw with warranty

Product Description

DIN968 Metal for Standard Drill/Driver Compatibility

Product Specifications

Attribute	Value
Application	Wood, Metal, Plastic, Etc.
Customized Support	OEM, ODM
Suitable For	Wood Or Furniture
Type	Self Tapping Screw
Compatibility	Standard Drill/Driver
Port	Shanghai Or Ningbo
Surface Treatment	Zinc Plated
Head Shape	Pan Head

Product Description

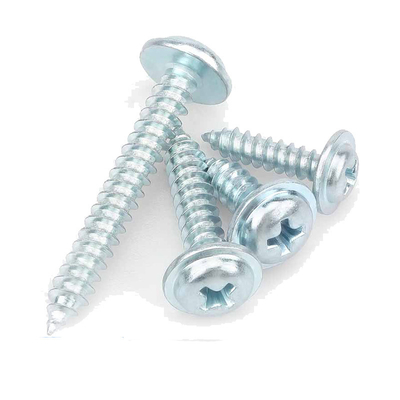

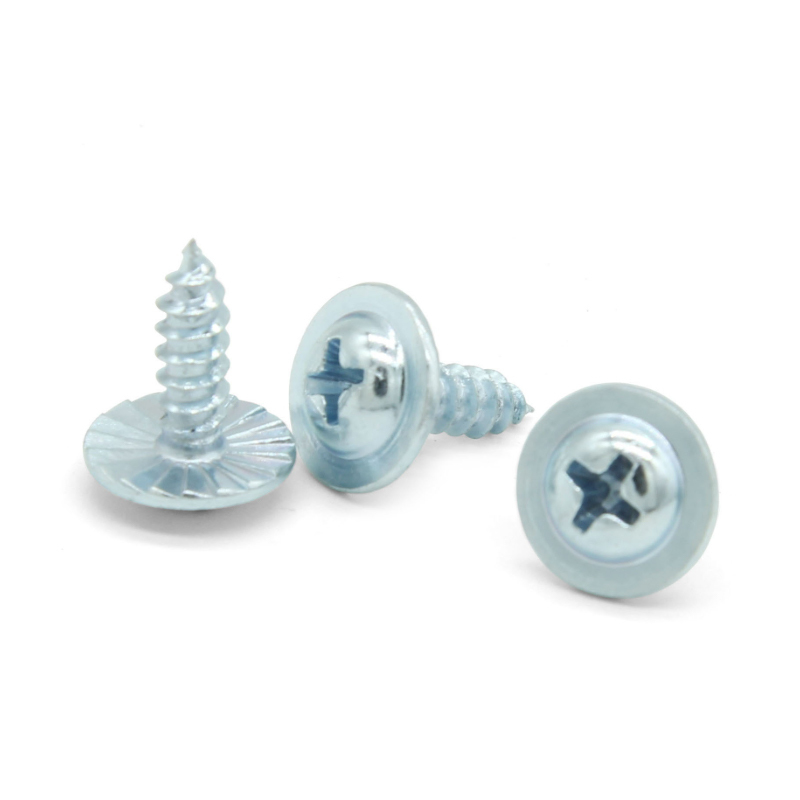

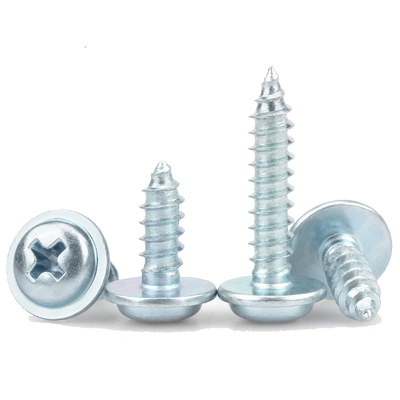

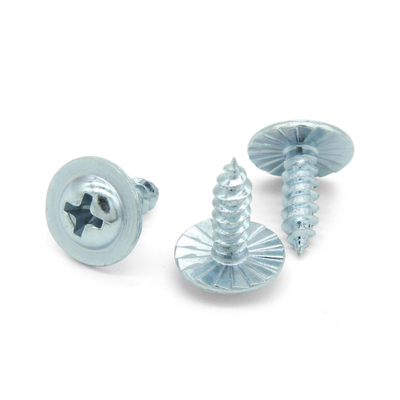

The DIN968 standard is a cross groove pan head self tapping screw standard developed by the German Institute for Standardization (DIN). These screws are commonly used for fastening connections of metal sheets and non-metallic materials.

The groove type of DIN968 standard self tapping screws is cross groove (H-type or Z-type). The tail can be either pointed tail (C-type) or flat tail (F-type), making them suitable for self tapping hard materials. The screws feature a Pan Head structure with gaskets and come in various diameter specifications from ST2.9 to ST6.3.

Key Features

DIN968 self-tapping screws are available in two main materials:

Carbon steel with galvanized or nickel surface finishes (tensile strength ≥400MPa)
Stainless steel (SUS304) for corrosion resistance (A2-70 grade, tensile strength ≥700MPa)

The international equivalent standard aligns with ISO 7049 guidelines.

Technical Parameters

Thread Size d	ST2.9	ST3.5	ST4.2	ST4.8	(ST5.5)	ST6.3
Pitch (P)	1.1	1.3	1.4	1.6	1.8	1.8
a (max)	1.1	1.3	1.4	1.6	1.8	1.8
dk (max=nominal size)	7.5	9	10	11.5	13	14.5
dk (min)	6.92	8.42	9.42	10.8	12.3	13.8
k (max=nominal size)	2.35	2.6	3.05	3.55	3.8	4.55
k (min)	2.1	2.35	2.75	3.25	3.5	4.25

Applications

DIN968 self tapping screws are widely used in:

Electrical enclosures
Building curtain walls
Medical devices
Lightweight structures

The built-in pad design improves force uniformity, making them ideal for applications with anti-loosening requirements, especially with thin plates.

Company Certifications

Company Certification

Quality Certification

Industry Standard

Packaging Options

Carton Packaging

Outer Carton Box

Pallet Packaging

Bolts are packed in neutral packaging boxes with standard quantities arranged in small cartons. The exact number of units per carton can be customized to customer requirements. Small cartons are consolidated into larger master cartons for secure transportation. Palletized units are wrapped with waterproof film and reinforced with packaging straps, with custom shipping marks available.
