DIN968 Zinc Plated Minimum Order Quantity ODM Customized Support for Customized Products

Brand Name:	YONGBIAO
Model Number:	DIN968 Tapping Screw
MOQ:	800-1000KG
Price:	0.01-0.05
Packaging Details:	Plastic Bag / Paper Box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

ISO 9001

Customized Support:

OEM, ODM

Type:

Self Tapping Screw

Head Shape:

Pan Head

Compatibility:

Standard Drill/Driver

Suitable For:

Wood Or Furniture

Color:

Yellow,White

Surface Treatment:

Zinc Plated

Port:

Shanghai Or Ningbo

Highlight:

zinc plated self tapping screw

customized self tapping screw

ODM self tapping screw

Product Description

DIN968 Zinc Plated Self Tapping Screws with Customized Support

Product Specifications

Attribute	Value
Customized Support	OEM, ODM
Type	Self Tapping Screw
Head Shape	Pan Head
Compatibility	Standard Drill/Driver
Suitable For	Wood Or Furniture
Color	Yellow, White
Surface Treatment	Zinc Plated
Port	Shanghai Or Ningbo

Product Description

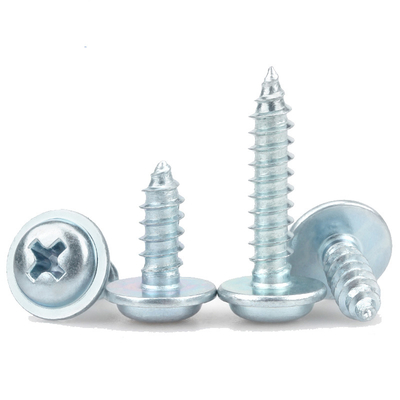

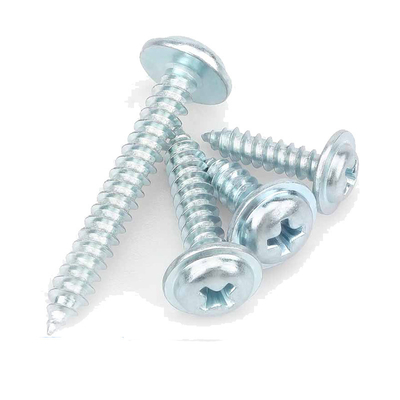

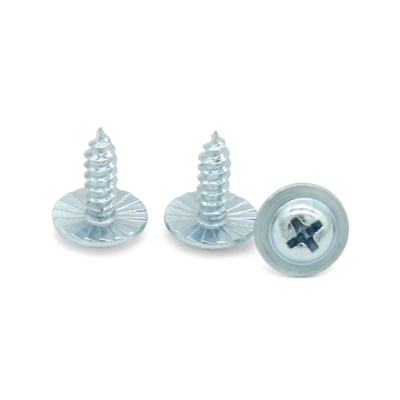

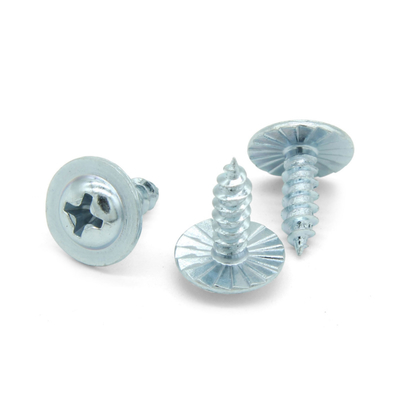

DIN968 is a standard for cross groove pan head self tapping screws developed by the German Institute for Standardization (DIN). These screws are commonly used for fastening connections between metal sheets and non-metallic materials.

The groove type of DIN968 standard self tapping screws is either H-type or Z-type, with the tail being a pointed tail (C-type) or a flat tail (F-type). This design is particularly suitable for self tapping into hard materials. The head of the screw is structured as a Pan Head with gaskets, and the diameter specifications range from ST2.9 to ST6.3.

Key Features

Available in carbon steel (galvanized or nickel-plated) and stainless steel (SUS304)
Carbon steel variant (grade 8.8) offers tensile strength of at least 400 MPa
Stainless steel version (grade A2-70) provides strength rating of at least 700 MPa
Complies with international standards (ISO 7049)
Excellent corrosion resistance

Technical Parameters

Thread Size d	ST2.9	ST3.5	ST4.2	ST4.8	(ST5.5)	ST6.3
Pitch P	1.1	1.3	1.4	1.6	1.8	1.8
max a	1.1	1.3	1.4	1.6	1.8	1.8
max=nominal size dk	7.5	9	10	11.5	13	14.5
min dk	6.92	8.42	9.42	10.8	12.3	13.8
max=nominal size k	2.35	2.6	3.05	3.55	3.8	4.55
min k	2.1	2.35	2.75	3.25	3.5	4.25

Quality Certifications

Packaging Options

Carton Packaging

Bolts are packed in neutral packaging boxes, with standard quantities arranged in small cartons. The exact number of units per carton will be confirmed with the customer to align with their specific requirements.

Outer Cartonbox Packaging

The small cartons are then consolidated into larger master cartons for secure transportation and storage. The quantity per master carton can be customized based on client specifications.

Pallet Packaging

The palletized units are securely wrapped with waterproof film and reinforced with packaging straps. Customer-specific shipping marks or labels are affixed to each pallet.
