DIN968 Pan Head Self Tapping Screw Metal Material Suitable for Wood or Furniture

Brand Name:	YONGBIAO
Model Number:	DIN968 Tapping Screw
MOQ:	800-1000KG
Price:	0.01-0.05
Packaging Details:	Plastic Bag / Paper Box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

ISO 9001

Color:

Yellow,White

Compatibility:

Standard Drill/Driver

Surface Treatment:

Zinc Plated

Customized Support:

OEM, ODM

Type:

Self Tapping Screw

Head Shape:

Pan Head

Port:

Shanghai Or Ningbo

Suraface Treatment:

Zinc Plated

Highlight:

pan head self tapping screw for wood

metal self tapping screw for furniture

self tapping screw with pan head

Product Description

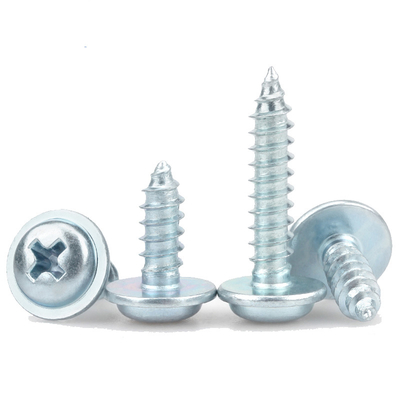

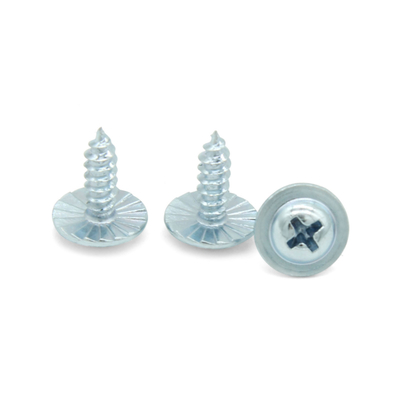

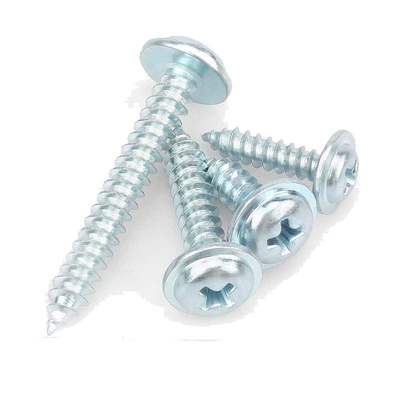

DIN968 Pan Head Self Tapping Screw

Metal material self-tapping screws suitable for wood or furniture applications, featuring zinc plating for corrosion resistance.

Product Specifications

Attribute	Value
Color	Yellow, White
Compatibility	Standard Drill/Driver
Surface Treatment	Zinc Plated
Customized Support	OEM, ODM
Type	Self Tapping Screw
Head Shape	Pan Head
Port	Shanghai Or Ningbo

Product Overview

DIN968 is a standard for cross groove pan head self tapping screws established by the German Institute for Standardization (DIN). These screws are commonly utilized for fastening connections between metal sheets and non-metallic materials.

Key Features

Cross groove pattern (H-type or Z-type) for secure fastening
Pointed tail (C-type) or flat tail (F-type) options for different material requirements
Pan Head structure with gaskets for improved force distribution
Available in diameter specifications from ST2.9 to ST6.3
Manufactured from carbon steel with galvanized or nickel plating, or stainless steel grade SUS304
Carbon steel variant offers minimum tensile strength ≥ 400MPa (grade 8.8)
Stainless steel variant offers strength level ≥ 700MPa (grade A2-70)
Complies with international standard ISO 7049

Technical Parameters

Thread Size d	ST2.9	ST3.5	ST4.2	ST4.8	(ST5.5)	ST6.3
Pitch	1.1	1.3	1.4	1.6	1.8	1.8
max	1.1	1.3	1.4	1.6	1.8	1.8
dk max=nominal size	7.5	9	10	11.5	13	14.5
min	6.92	8.42	9.42	10.8	12.3	13.8

Applications

DIN968 self-tapping screws are frequently utilized for lightweight connections in electrical enclosures, building curtain walls, medical devices, and other applications. The built-in pad design improves force distribution, making them suitable for preventing loosening in thin plates.

Certifications

Company Certification

Quality Certification

Industry Standard Certification

Packaging Options

Carton Packaging: Bolts are packed in neutral packaging boxes, with standard quantities arranged in small cartons. The exact number of units per carton will be confirmed with the customer to align with their specific requirements.

Outer Cartonbox Packaging: The small cartons are consolidated into larger master cartons for secure transportation and storage. The quantity per master carton can be customized based on client specifications.

Pallet Packaging: Securely wrapped with waterproof film and reinforced with packaging straps. Customer-specific shipping marks or labels are affixed to each pallet, ensuring clear identification and compliance.
