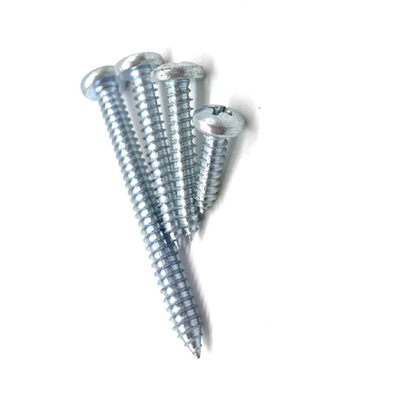

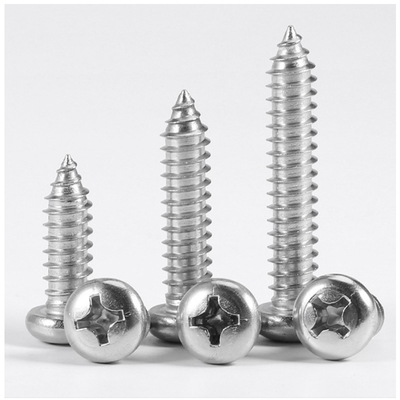

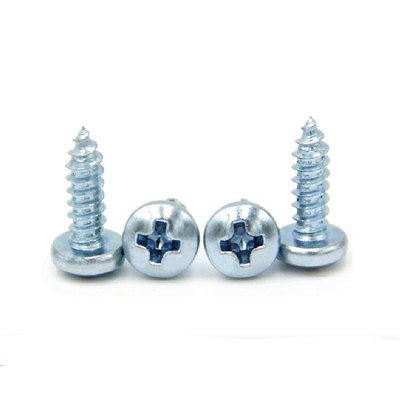

DIN7981 Self Tapping Screw Phillips Drive Coarse Thread Type C

Brand Name:	YONGBIAO
Model Number:	DIN7981 Tapping Screw
MOQ:	800-1000KG
Price:	0.01-0.05
Packaging Details:	Plastic Bag / Paper Box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

ISO 9001

Trademark:

Thread Coverage:

Full Thread

Drive Style:

Phillips

Self-Drilling:

Thread:

Coarse/ Fine Thread

Common Slot Type:

Slotted/Posidriv/Trox

Application:

General Industry, Heavy Industry, Mining

Point Type:

Type C

Highlight:

DIN7981 self tapping screw

Phillips drive self tapping screw

coarse thread type C screw

Product Description

DIN7981 Self Tapping Screw Phillips Drive Coarse Thread Type C

Product Specifications

Trademark	YB
Thread Coverage	Full Thread
Drive Style	Phillips
Self-Drilling	Yes
Thread	Coarse/Fine Thread
Common Slot Type	Slotted/Posidriv/Trox
Application	General Industry, Heavy Industry, Mining
Point Type	Type C

Product Overview

DIN7981 screws are self-tapping screws with a pan head design and cross slots that adhere to German standards. They are commonly used for fastening thin metal plates or non-metallic materials. The head type features a semi-circular disc head, with groove options like H-shaped or Z-shaped cross grooves. These screws come with a choice of pointed tail (C-type) or flat tail (F-type), allowing selection based on application requirements.

Key Features

Manufactured to strict DIN standards for thread clarity and dimensional accuracy
Precision-engineered tail tooth lifting for optimal performance
Rigorous quality control ensures proper head axis alignment
Cross groove plug gauge testing prevents slipping and ensures batch consistency

Technical Specifications

Screw Threadd	ST2.2	ST2.9	ST3.5	(ST3.9)	ST4.2	ST4.8	ST5.5	ST6.3
P (Pitch)	0.8	1.1	1.3	1.3	1.4	1.6	1.8	1.8
a (max)	0.8	1.1	1.3	1.3	1.4	1.6	1.8	1.8
dk (max=nominal size)	4.2	5.6	6.9	7.5	8.2	9.5	10.8	12.5
dk (min)	3.9	5.3	6.54	7.14	7.84	9.14	10.37	12.07
k (max=nominal size)	1.8	2.2	2.6	2.8	3.05	3.55	3.95	4.55
k (min)	1.55	1.95	2.35	2.55	2.75	3.25	3.65	4.25
y (max) Type C	2	2.6	3.2	3.5	3.7	4.3	5	6
y (max) Type F	1.6	2.1	2.5	2.7	2.8	3.2	3.6	3.6
Socket No.	1	1	2	2	2	2	3	3
M1 (≈)	2.6	3	4.2	4.4	4.6	5	6.5	7.1
M2 (≈)	2.4	2.9	3.9	4.1	4.3	4.7	6.2	6.7

Industrial Applications

DIN7981 self-tapping screws are widely used in electronic appliances, building curtain walls, medical equipment, and packaging machinery. Their self-tapping design eliminates the need for pre-tapped threaded holes, simplifying installation. These screws comply with international standards including ISO 7049 and DIN7981, and align with Chinese standard GB/T 845.

Note: While convenient for many applications, these screws have limited load-bearing capacity and are not recommended for high-load situations.

Quality Certifications

DIN7981 Self Tapping Screw Phillips Drive Coarse Thread Type C 5

Packaging Options

Carton Packaging

Bolts are packed in neutral packaging boxes with standard quantities arranged in small cartons. The exact number of units per carton can be customized to meet specific customer requirements.

Outer Carton Box Packaging

Small cartons are consolidated into larger master cartons for secure transportation and storage. Quantity per master carton can be customized based on client specifications.

Pallet Packaging

Pallets are securely wrapped with waterproof film and reinforced with packaging straps. Custom shipping marks or labels ensure clear identification and compliance with logistics requirements, providing weather-resistant protection during transportation.
