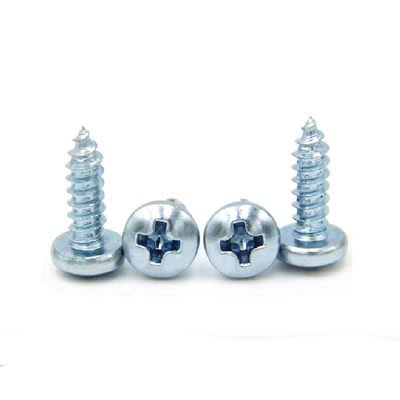

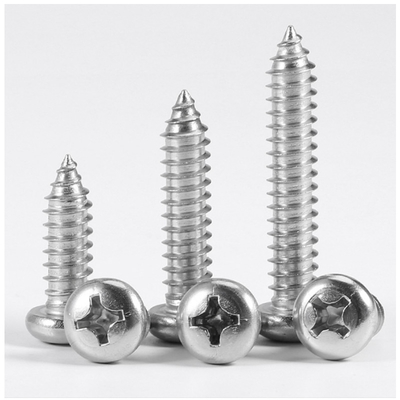

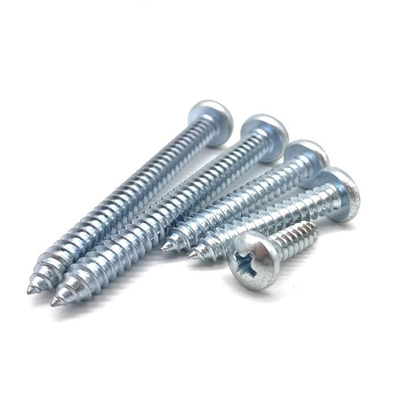

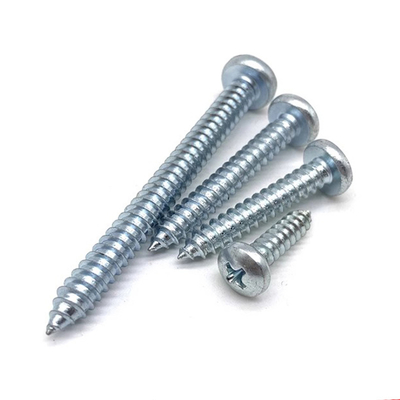

DIN7981 Slotted Posidriv Self Tapping Screw Type C Point

Brand Name:	YONGBIAO
Model Number:	DIN7981 Tapping Screw
MOQ:	800-1000KG
Price:	0.01-0.05
Packaging Details:	Plastic Bag / Paper Box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

ISO 9001

Common Slot Type:

Slotted/Posidriv/Trox

Surface Treatment:

Electroplating/passivation

Customized Support:

OEM, ODM

Self-Drilling:

Thread Coverage:

Full Thread

Trademark:

Thread:

Coarse/ Fine Thread

Point Type:

Type C

Highlight:

DIN7981 self tapping screw

slotted posidriv screw

type C point screw

Product Description

DIN7981 Slotted/Posidriv Drive Style Minimum Order Quantity 2000pcs

Product Specifications

Attribute	Value
Common Slot Type	Slotted/Posidriv/Trox
Surface Treatment	Electroplating/passivation
Customized Support	OEM, ODM
Self-Drilling	Yes
Thread Coverage	Full Thread
Trademark	YB
Thread	Coarse/Fine Thread
Point Type	Type C

Product Overview

DIN7981 screws are German standard cross slot pan head self-tapping screws, primarily designed for fastening connections of thin metal plates or non-metallic materials. These screws feature a semi-circular disc head with groove types including cross groove (H-shaped or Z-shaped). Available with pointed tail (C-type) or flat tail (F-type) options, different specifications can be selected based on application requirements.

Key Features

Manufactured to strict DIN7981 standards for thread clarity and dimensional accuracy
Precision-engineered tail tooth lifting for optimal performance
Perfect head axis alignment prevents slipping during installation
Rigorous quality control ensures batch consistency

Technical Specifications

Screw Threadd	ST2.2	ST2.9	ST3.5	(ST3.9)	ST4.2	ST4.8	ST5.5	ST6.3
P (Pitch)	0.8	1.1	1.3	1.3	1.4	1.6	1.8	1.8
a (max)	0.8	1.1	1.3	1.3	1.4	1.6	1.8	1.8
dk (max=nominal size)	4.2	5.6	6.9	7.5	8.2	9.5	10.8	12.5
dk (min)	3.9	5.3	6.54	7.14	7.84	9.14	10.37	12.07
k (max=nominal size)	1.8	2.2	2.6	2.8	3.05	3.55	3.95	4.55
k (min)	1.55	1.95	2.35	2.55	2.75	3.25	3.65	4.25
y (max) Type C	2	2.6	3.2	3.5	3.7	4.3	5	6
y (max) Type F	1.6	2.1	2.5	2.7	2.8	3.2	3.6	3.6
Socket No.	1	1	2	2	2	2	3	3
M1 ≈	2.6	3	4.2	4.4	4.6	5	6.5	7.1
M2 ≈	2.4	2.9	3.9	4.1	4.3	4.7	6.2	6.7

Typical Applications

DIN7981 self-tapping screws are widely used in:

Electronic appliances and components
Building curtain wall systems
Medical equipment manufacturing
Packaging machinery assembly

These screws enable easy installation without requiring pre-tapped threaded holes. Note that they have limited load-bearing capacity and are not recommended for high-load applications.

Technical specifications comply with ISO 7049 and DIN7981 standards, with GB/T 845 as the equivalent Chinese standard.

Quality Certifications

DIN7981 Slotted Posidriv Self Tapping Screw Type C Point 5

Packaging Options

Carton Packaging	Outer Carton Box Packaging	Pallet Packaging
Neutral packaging boxes with standard quantities arranged in small cartons. Custom quantities available per customer requirements.	Small cartons consolidated into larger master cartons for secure transportation. Custom configurations available.	Weatherproof palletized units with waterproof film and reinforced straps. Custom shipping marks and labels available.
