DIN7981 Self Tapping Screw Phillips Pozi Drive Self-Drilling

Brand Name:	YONGBIAO
Model Number:	DIN7981 Tapping Screw
MOQ:	800-1000KG
Price:	0.01-0.05
Packaging Details:	Plastic Bag / Paper Box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

ISO 9001

Features:

Good Anti-corrosion Ability

Trademark:

Drive Type:

Phillips/Pozi Drive/Torx

Application:

General Industry, Heavy Industry, Mining

Color:

Yellow/ White Blue

Customized Support:

OEM, ODM

Self-Drilling:

Thread:

Coarse/ Fine Thread

Highlight:

DIN7981 self tapping screw

Phillips drive self drilling screw

Pozi drive self tapping screw

Product Description

DIN7981 Full Thread Self Tapping Screw for Self-Drilling Phillips Drive Pozi Drive

Product Attributes

Trademark	YB
Drive Type	Phillips/Pozi Drive/Torx
Application	General Industry, Heavy Industry, Mining
Color	Yellow/White Blue
Features	Good Anti-corrosion Ability
Customized Support	OEM, ODM
Self-Drilling	Yes
Thread	Coarse/Fine Thread

Product Description

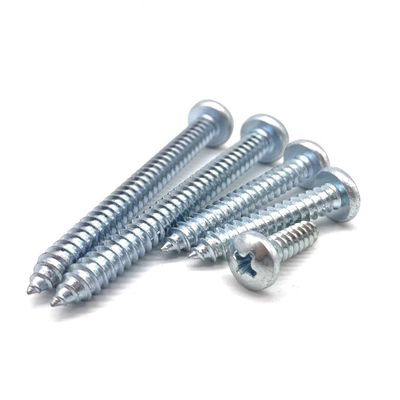

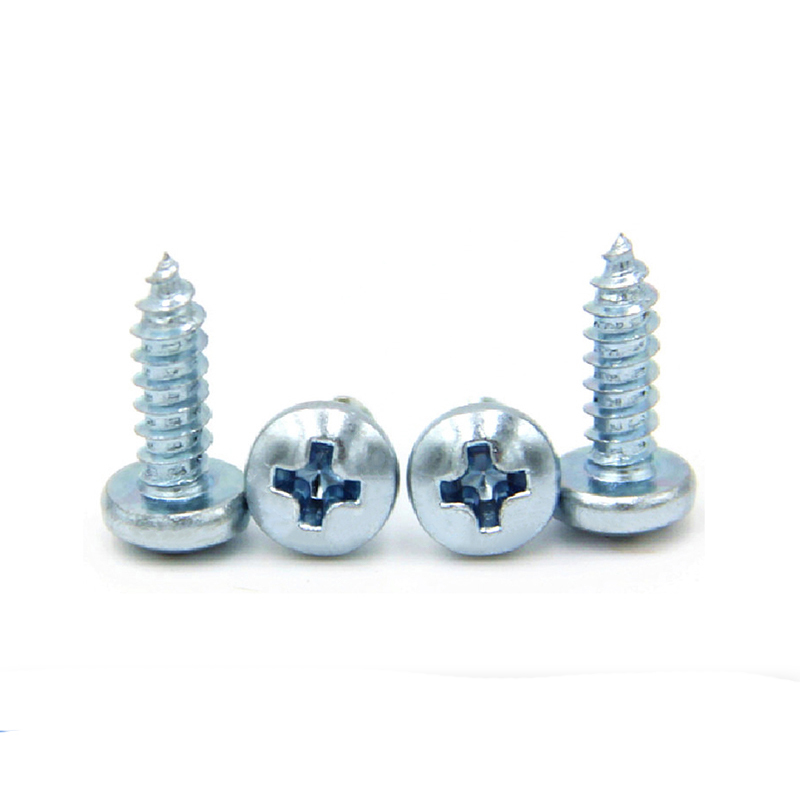

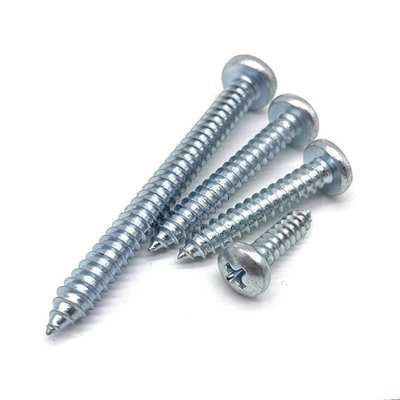

DIN7981 screws conform to the German standard and are designed as cross slot pan head self-tapping screws, primarily used for securing connections of thin metal plates or non-metallic materials. The screw features a semi-circular disc head and is available with cross grooves, which can be of the H-shape or Z-shape variety. The screws come with two tail options - a pointed tail known as the C-type or a flat tail known as the F-type. Variants in specifications exist to cater to different application requirements.

Features

The clarity of the screw thread
The accuracy of the tail tooth lifting
The alignment of the head axis

These aspects must meet strict standards. Inspection with a cross groove plug gauge is necessary to ensure the matching degree of the batch head and prevent slipping.

Technical Parameters

Screw Thread

d	ST2.2	ST2.9	ST3.5	(ST3.9)	ST4.2	ST4.8	ST5.5	ST6.3
P	Pitch	0.8	1.1	1.3	1.3	1.4	1.6	1.8	1.8
a	max	0.8	1.1	1.3	1.3	1.4	1.6	1.8	1.8
dk	max=nominal size	4.2	5.6	6.9	7.5	8.2	9.5	10.8	12.5
	min	3.9	5.3	6.54	7.14	7.84	9.14	10.37	12.07
k	max=nominal size	1.8	2.2	2.6	2.8	3.05	3.55	3.95	4.55
	min	1.55	1.95	2.35	2.55	2.75	3.25	3.65	4.25
y	max	Type C	2	2.6	3.2	3.5	3.7	4.3	5	6
	Type F	1.6	2.1	2.5	2.7	2.8	3.2	3.6	3.6
Socket No.		1	1	2	2	2	2	3	3
M1	≈	2.6	3	4.2	4.4	4.6	5	6.5	7.1
M2	≈	2.4	2.9	3.9	4.1	4.3	4.7	6.2	6.7

Applications

DIN7981 self-tapping screws find primary applications in electronic appliances, building curtain walls, medical equipment, and packaging machinery. Being effortless to install, these screws eliminate the need for pre-tapping threaded holes. However, they possess a limited load-bearing capacity and are thus unsuitable for high load scenarios.

The technical specifications of DIN7981 self-tapping screws are closely aligned with ISO 7049 and DIN7981 standards, with GB/T 845 serving as the equivalent standard in China. Thus, they maintain a consistent technical quality across different industry benchmarks.

Company Certificate

Packaging

Carton Packaging

Outer Cartonbox Packaging

Pallet Packaging

Bolts are packed in neutral packaging boxes, with standard quantities arranged in small cartons. The exact number of units per carton will be confirmed with the customer to align with their specific requirements. Customized packaging configurations are available upon request.

The small cartons are then consolidated into larger master cartons for secure transportation and storage. The quantity per master carton can be customized based on client specifications or aligned with standard logistical requirements.

The palletized units are securely wrapped with waterproof film and reinforced with packaging straps. Customer-specific shipping marks or labels are affixed to each pallet, ensuring clear identification and compliance with logistics requirements. This final packaging stage guarantees weather-resistant protection and stability during transportation.
