Self Tapping Screw
>

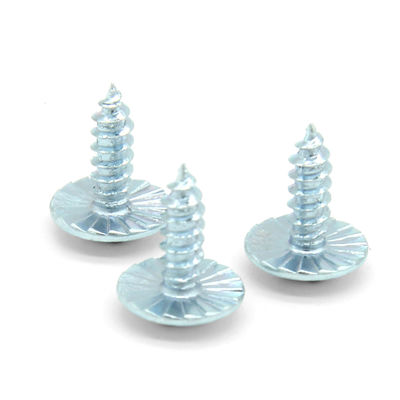

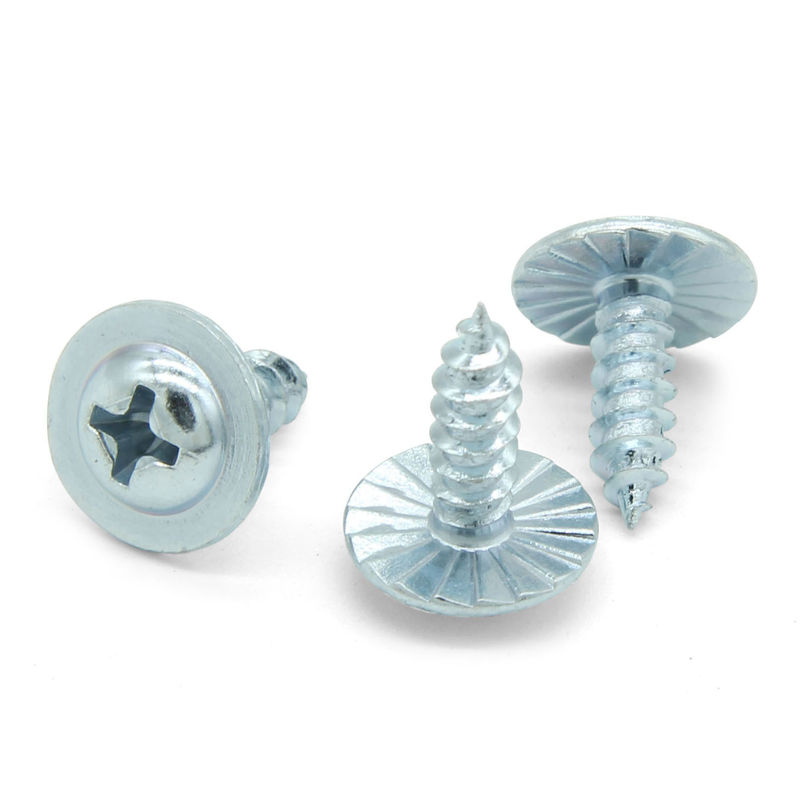

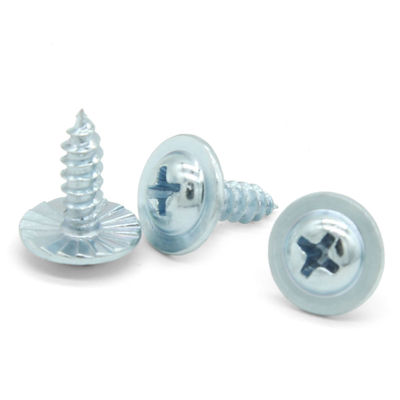

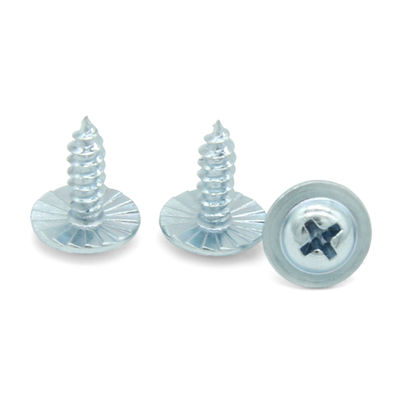

DIN968 Zinc Treatment Cross Pan Head With Washer Self-tapping Screws

DIN968 Zinc Treatment Cross Pan Head With Washer Self-tapping Screws

Brand Name: YongBiao
Model Number: Self Tapping Screw
MOQ: 10000
Price: FOB NingBo 0.003-0.2USD
Packaging Details: Carton Box/Pallet/Customized
Payment Terms: T/T
Detail Information
Place of Origin:
ZheJiang China
Certification:
ISO9001/16949
Standard:
DIN968
Material:
Carbon Steel
Size:
ST2.9-ST6.3
Surface Treatment:
Zinc Plated
Grade:
8.8
Sample:
For Free In Stock,3-5 FREE Samples But Not Included Freight,ok
Application:
Electronics,furniture,thin Sheet Metal,Thermoplastic,Plastic
Thread Type:
Self Tapping Screw,thread Forming Thread
Supply Ability:
500tons/month
Product Description

DIN968 Zinc Treatment Cross Pan Head With Washer Self-tapping Screws


1.Products Details:

PWA cross - recessed pan - head self - tapping screws with washer and teeth are a type of fastener. The "P" in PWA represents the pan - head, "W" represents the washer, and "A" indicates the self - tapping thread. These screws are usually made of carbon steel or stainless steel, and can have surface treatments such as nickel - plating or galvanization. They are designed to be directly screwed into materials like metal, wood, or plastic without pre - drilling holes, forming internal threads by self - tapping, and achieving a firm fixing effect.


2.Key Features:

- Easy to Install:

With a cross - recessed design on the head, they can be easily driven by a cross - head screwdriver or an electric screwdriver, featuring flexible angle adjustment and high installation efficiency.
- Washer Design:

 The built - in washer increases the contact area with the fastened material, which can evenly distribute pressure, prevent the screw head from sinking into the material surface, and enhance the fixing stability.
- Self - Tapping Function:

The thread is sharp and has a self - tapping feature. It can penetrate the material and form threads by itself, simplifying the installation process and being suitable for various non - threaded hole materials.
- Tooth Design:

The teeth on the screw can enhance the gripping force, making the screw more firmly fixed in the material, reducing the possibility of loosening, and improving the mechanical connection strength.
- Good Versatility:

 They can be used in a variety of scenarios, such as furniture manufacturing, construction, and electronic equipment assembly, and are suitable for fixing different materials.
- Corrosion Resistance:

When made of stainless steel or through surface treatments like nickel - plating and galvanization, they have good corrosion resistance, which can be used in different environmental conditions and has a long service life.


3.Technical Parameters

d ST2.9 ST3.5 ST4.2 ST4.8 (ST5.5) ST6.3
P 1.1 1.3 1.4 1.6 1.8 1.8
a MAX 1.1 1.3 1.4 1.6 1.8 1.8
dk MAX 7.5 9 10 11.5 13 14.5
MIN 6.92 8.42 9.42 10.8 12.3 13.8
k MAX 2.35 2.6 3.05 3.55 3.8 4.55
MIN 2.1 2.35 2.75 3.25 3.5 4.25
c MAX 0.8 0.9 1.1 1.35 1.6 1.8
MIN 0.6 0.7 0.9 1.05 1.2 1.4
r MIN 0.1 0.1 0.2 0.2 0.25 0.25
R 3.8 4.6 5.8 6.6 7.8 8.2
Slot Number 1 2 2 2 3 3
M1 Grade H 3 4.2 4.6 5 6.5 7.1
Depth Grade H MIN 1.35 1.4 1.8 2.26 2.49 3
MAX 1.8 2.03 2.46 2.87 3.15 3.66
M2 Grade Z 2.9 3.9 4.3 4.7 6.2 6.7
Depth Grade Z MIN 1.58 1.47 1.88 2.28 2.51 3.02
MAX 1.83 1.93 2.34 2.74 2.97 3.48
y reference value C 2.6 3.2 3.7 4.3 5 6
F 2.1 2.5 2.8 3.2 3.6 3.6
R / 2.7 3.2 3.6 4.3 5

DIN968 Zinc Treatment Cross Pan Head With Washer Self-tapping Screws 0

4.Certificate Display

DIN968 Zinc Treatment Cross Pan Head With Washer Self-tapping Screws 1      DIN968 Zinc Treatment Cross Pan Head With Washer Self-tapping Screws 2      DIN968 Zinc Treatment Cross Pan Head With Washer Self-tapping Screws 3

5.Production Process

DIN968 Zinc Treatment Cross Pan Head With Washer Self-tapping Screws 4

6.Packaging and shipping Details

DIN968 Zinc Treatment Cross Pan Head With Washer Self-tapping Screws 5
