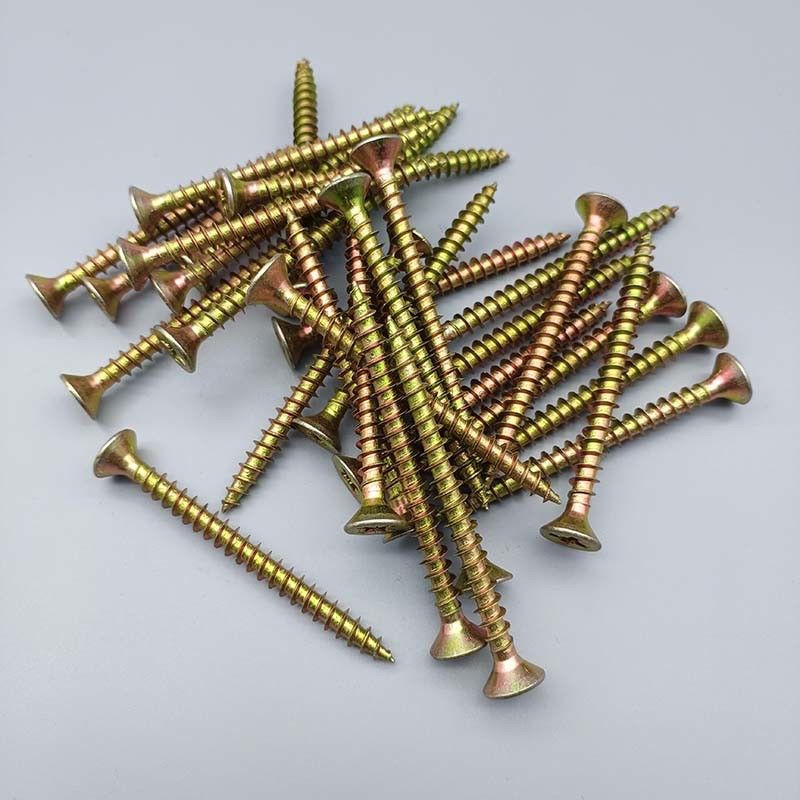

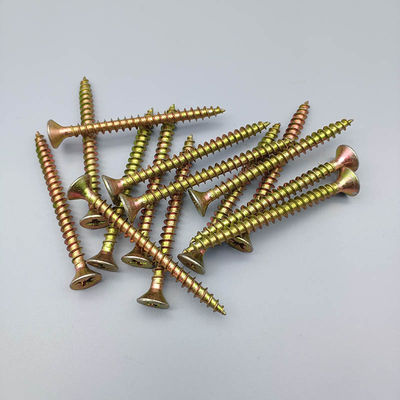

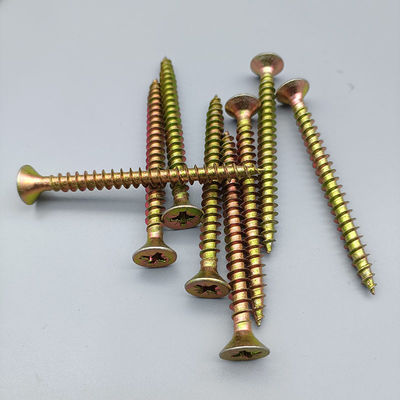

Zinc Plated DIN7505 Standard Cross Countersunk Self Tapping Galvanized Screw For Building Projects

All Category

Cabinet Gas Spring

Ms. Amylin

amylin@ybfasteners.com

+8618658229310

Contact Now

Zinc Plated DIN7505 Standard Cross Countersunk Self Tapping Galvanized Screw For Building Projects

Brand Name:	YongBiao
Model Number:	Particle Board Screws
MOQ:	10000pcs
Price:	FOB Price:0.01-0.5USD/PCS
Packaging Details:	Carton Box/Pallet/Customized
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

ZheJiang China

Certification:

ISO9001,TUV

Color:

Yellow,White

Samples:

Free.The Freight Cost Will Be Bone By Customer

Logo Custom:

Service:

OEM/ODM

Application:

Construction,Wood,Furniture, Chemical Industry, Environmental, Building

Grade:

8.8,10.9,12.9

Head Type:

Countersunk

Finish:

Zinc Plated

Supply Ability:

5000000Tons/Year

Highlight:

Countersunk Self Tapping Screw

Building Projects Self Tapping Screw

Zinc Plated Self Tapping Screw

Product Description

DIN7505 Standard Cross Countersunk Self Tapping Galvanized Screw

1.Products Details:

High-strength fiberboard self-tapping screws are specialized fasteners engineered for securely fastening materials to high-density fiberboard (HDF) and medium-density fiberboard (MDF). Crafted from premium-grade steel, often with surface treatments like zinc plating or black oxide coating, these screws combine robust mechanical properties with enhanced corrosion resistance. Their unique design features a sharply pointed tip that effortlessly penetrates fiberboard without pre-drilling, reducing installation time. The deep, finely pitched threads are optimized to cut into the fibrous structure of the board, creating a tight, reliable hold. Additionally, heads come in various types—Phillips, flat, or pan—to suit different aesthetic and functional requirements, and some models include wafer heads for increased pull-out resistance.

2.Key Features

1. Ease of Installation:

The self-tapping design eliminates the need for pre-drilling, allowing for quick and straightforward assembly, which significantly boosts efficiency in construction, furniture making, and DIY projects.

2. Superior Holding Power:

With deep, aggressive threads, these screws firmly grip the fiberboard, ensuring long-lasting stability and preventing loosening over time, even under heavy loads or vibrations.

3. Cost-Effective:

By streamlining the installation process and reducing the need for additional tools and labor, they lower overall project costs while maintaining high performance standards.

4. Corrosion Resistance:

Surface treatments protect against rust and environmental damage, making them suitable for both indoor and certain outdoor applications, thus extending the lifespan of the fastened structures.

5. Versatility:

Compatible with different fiberboard densities and thicknesses, they can be used in a wide range of applications, from cabinetry and shelving to structural framing and decorative paneling.

6. Minimal Material Damage:

The sharp tips and precise threading minimize splitting and cracking of the fiberboard, preserving the material’s integrity and appearance.

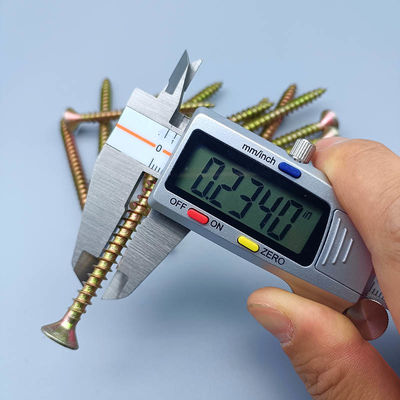

3.Technical Parameters

Specification		ST3	ST3.5	ST4.0	ST4.5	ST5	ST6
P		1.35	1.6	1.8	2	2.2	2.6
dk	MAX	6.05	7.05	8.05	9.05	10.05	12.05
dk	MIN	5.7	6.64	7.64	8.64	9.64	11.6
k		3.2	3.6	4.25	4.6	5.2	6.2
M		3.1	4	4.4	4.8	5.3	6.6
d	MAX	3	3.5	4	4.5	5	6
d	MIN	2.8	3.3	3.75	4.25	4.7	5.7
dp	MAX	1.9	2.2	2.5	2.7	3	3.7
dp	MIN	1.7	2	2.25	2.45	2.7	3.4
d2		3	3.5	4	4.5	5	6

Zinc Plated DIN7505 Standard Cross Countersunk Self Tapping Galvanized Screw For Building Projects 0

4.Certificate Display

Zinc Plated DIN7505 Standard Cross Countersunk Self Tapping Galvanized Screw For Building Projects 1

5.Production Process

Zinc Plated DIN7505 Standard Cross Countersunk Self Tapping Galvanized Screw For Building Projects 4

6.Packaging and shipping Details

Zinc Plated DIN7505 Standard Cross Countersunk Self Tapping Galvanized Screw For Building Projects 5
