Hex Head Bolt
>
DIN6921 Industrial Grade Machine Bolt with Full Thread and Plate Zinc Coating

DIN6921 Industrial Grade Machine Bolt with Full Thread and Plate Zinc Coating

Brand Name: YONGBIAO
Model Number: GB/DIN/ISO
MOQ: 800KG
Price: 0.01-0.2USD
Packaging Details: Carton Box/PE Bag
Payment Terms: T/T
Detail Information
Certification:
ISO9001
Threading:
Full Or Half Threaded
Application Scope:
Automobile Industry
Project:
DIN6921
Shape:
Hex With Flange Head
Trade Term:
EXW,FOB,CIF,DDP,DDU
Class:
8.8,10.9
Surface Treatment:
Plate Zinc
Highlight:

Plate Zinc Coating Machine Bolt

,

Industrial Grade Machine Bolt

,

Full Thread Machine Bolt

Product Description

Product Description:

DIN6921 Hex Flange Head Bolts

In automobile manufacturing, hexagonal flange bolts are commonly employed to secure engine, chassis, and body components. Their exceptional strength and resistance to corrosion make them well-suited to meet the demanding specifications of automotive parts.

The operation of a vehicle typically involves various levels of vibration. The hexagonal flange bolts, with their generous support area and excellent anti-loosening characteristics, play a crucial role in maintaining the stability of critical components like the engine during the driving process.

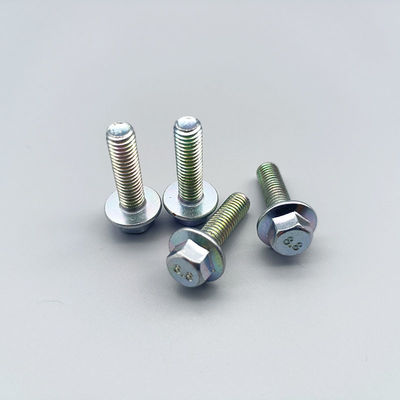

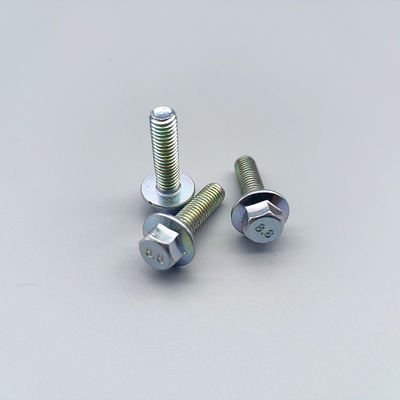

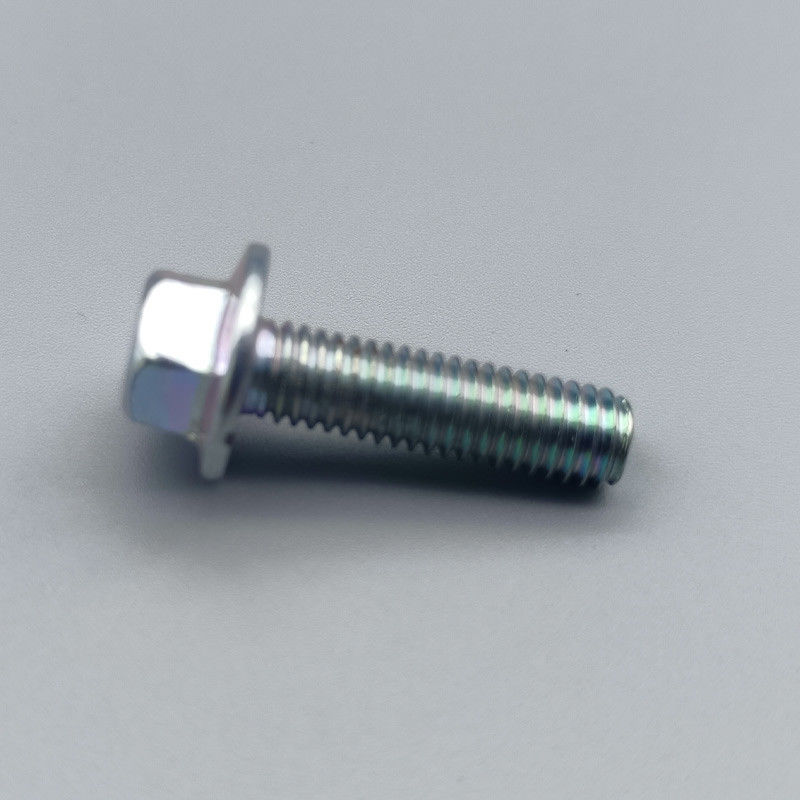

DIN6921 Industrial Grade Machine Bolt with Full Thread and Plate Zinc Coating 0 DIN6921 Industrial Grade Machine Bolt with Full Thread and Plate Zinc Coating 1 DIN6921 Industrial Grade Machine Bolt with Full Thread and Plate Zinc Coating 2

Features:

The fastening of the flange surface is very reliable, as it functions like a super strong gasket that is integrated within it. This feature allows for even distribution of force, minimizing deformation and damage to the connecting parts. It effectively secures parts made of different materials such as metal or plastic.

Unlike standard hexagonal bolts, this type offers superior resistance to loosening. Toothed flange bolts, in particular, excel in maintaining stability in high-vibration environments like car engines. Various grades are available to suit different needs: Grade 4.8 is ideal for smaller applications such as home decor; Grade 8.8 is commonly used in automobiles and construction machinery; Grade 10.9 is designed to withstand heavy loads.


Technical Parameters:

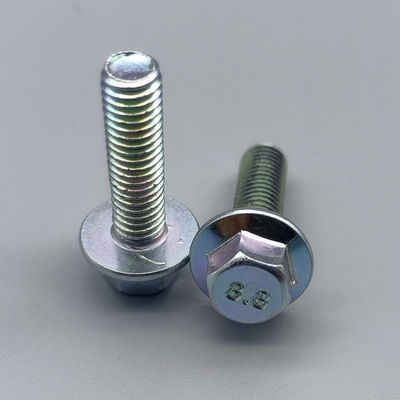

DIN6921 Industrial Grade Machine Bolt with Full Thread and Plate Zinc Coating 3

Screw Thread M5 M6 M8 M10 M12 M14
P
0.8 1 1.25 1.5 1.75 2
b L≤125 16 18 22 26 30 34
125L≤200 / / 28 32 36 40
c min 1 1.1 1.2 1.5 1.8 2.1
dc max 11.8 14.2 18 22.3 26.6 30.5
e min 8.71 10.95 14.26 16.5 17.62 19.86
f max 1.4 2 2 2 3 3
k max 5.4 6.6 8.1 9.2 11.5 12.8
s max 8 10 13 15 16 18
min 7.78 9.78 12.73 14.73 15.73 17.73


Project DIN6921
Shape Hex With Flange Head
Trade Term EXW, FOB, CIF, DDP, DDU
Surface treatment Plate Zinc
Class 8.8, 10.9
Application Scope Automobile Industry
Threading Full Or Half Threaded

Applications:

This technology is extensively employed in various industries such as automobile manufacturing, mechanical equipment manufacturing, outdoor steel structure connection, and furniture manufacturing.

DIN6921 Industrial Grade Machine Bolt with Full Thread and Plate Zinc Coating 4

FAQ:

Q: What is the brand name of the Hex Head Bolt?

A: The brand name of the Hex Head Bolt is YONGBIAO.

Q: What are the available model numbers for the Hex Head Bolt?

A: The Hex Head Bolt is available in models GB/DIN/ISO.

Q: Where is the Hex Head Bolt manufactured?

A: The Hex Head Bolt is manufactured in CHINA.

Q: What certification does the Hex Head Bolt have?

A: The Hex Head Bolt is certified with ISO9001,IATF16949 Auditing

Q: What is the minimum order quantity for the Hex Head Bolt?

A: The minimum order quantity for the Hex Head Bolt is 800KG.
