Pan Head Screw

Thread Size M2 M10 Zinc Plate Pan Head Screw DIN7500 PE

All Category

Cabinet Gas Spring

Ms. Amylin

amylin@ybfasteners.com

+8618658229310

Contact Now

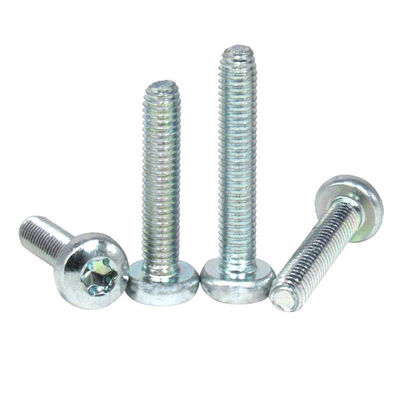

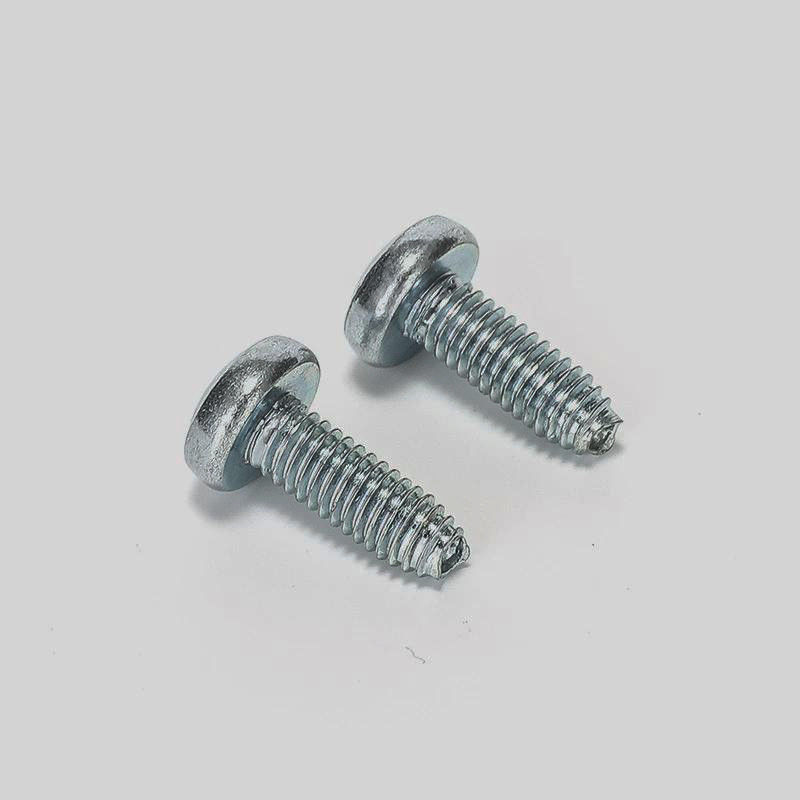

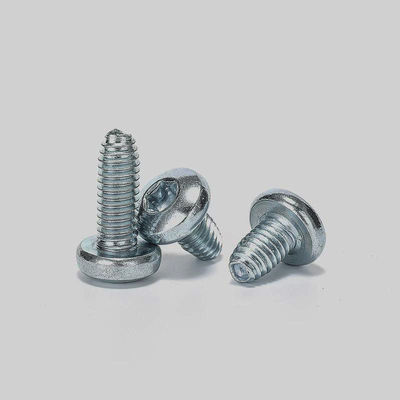

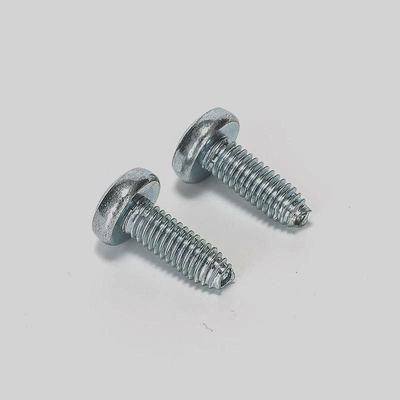

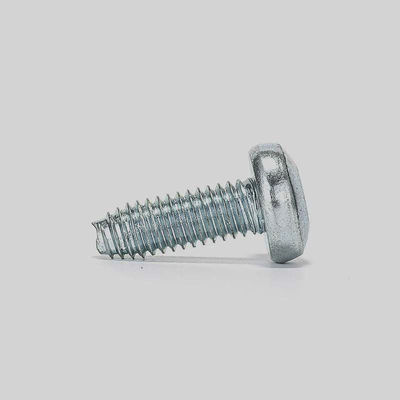

Thread Size M2 M10 Zinc Plate Pan Head Screw DIN7500 PE

Brand Name:	YONGBIAO
Model Number:	DIN7500 Pan Head Hexagon Screws
MOQ:	50000
Price:	0.01USD-0.05USD
Packaging Details:	Carton Box/Pallet/Customized
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Certification:

ISO90001

Quantity:

1000-5000pieces/Package

Transport Package:

Plastic Bags And Cartons

Port:

NINGBO Or SHANGHAI

Delivery:

7-15days

Thread Size:

M2-M10

Part Number:

DIN7500(PE)

Keywords:

Screw Fastener

Thread:

DIN7500(PE)

Highlight:

Zinc Plate M2 Pan Head Screw

DIN7500 Pan Head Screw

PE Zinc Plate Pan Head Screw

Product Description

Product Description:

The Hexalobular Socket Pan Head Self Tapping Screw in DIN7500 standard is a unique fastening solution that features a Torx drive and head design. This screw is specifically engineered for high torque applications and anti-slip scenarios, making it ideal for precision assembly projects or harsh environments.

Primarily used for connecting various materials including aluminum alloys, galvanized steel sheets, solar brackets, and communication base stations, this screw offers versatility and reliability in a wide range of applications.

Features:

Curved head with supporting surface at the bottom, providing moderate load-bearing capacity, slightly protruding surface after installation.

The design of the plum blossom groove can achieve high torque transmission, reduce the risk of slipping, and is suitable for automated installation or high torque requirements. Some models support anti disassembly to enhance security.

By extruding plastic or thin metal plates to form internal threads, material cracking can be reduced (especially suitable for brittle plastics such as PC and PMMA). Cone or guide thread design reduces initial installation resistance.

Technical Parameters:

Thread Size M2 M10 Zinc Plate Pan Head Screw DIN7500 PE 3

d		M2	M2.5	M3	(M3.5)	M4	M5	M6	M8	M10
P		0.4	0.45	0.5	0.6	0.7	0.8	1	1.25	1.5
b	MIN	25	25	25	38	38	38	38	38	38
dk	MAX	4	5	5.6	7	8	9.5	12	16	20
dk	MIN	3.7	4.7	5.3	6.64	7.64	9.14	11.57	15.57	19.48
k	MAX	1.6	2.1	2.4	2.6	3.1	3.7	4.6	6	7.5
k	MIN	1.46	1.96	2.26	2.46	2.92	3.52	4.3	5.7	7.14
x	MAX	1	1.1	1.25	1.5	1.75	2	2.5	3.2	3.8
style		T6	T8	T10	T15	T20	T25	T30	T45	T50
A		1.75	2.4	2.8	3.35	3.95	4.5	5.6	7.95	8.95
t	MAX	0.77	1.04	1.27	1.33	1.66	1.91	2.42	3.18	4.02
t	MIN	0.63	0.91	1.01	1.07	1.27	1.52	2.02	2.79	3.62

Applications:

In the automotive manufacturing industry, thread rolling technology is employed to enhance anti-loosening properties. This technology is widely utilized in connecting various aluminum alloy parts, eliminating the need for tapping teeth and enabling direct squeezing and locking.

The connection points supporting dynamic loads in industrial machinery, including machine tools and hydraulic systems, rely on the high strength provided by rolled threads.

Furthermore, in the assembly of new energy battery modules, Hexalobular Socket Pan Head Self Tapping Screws can be used in lithium battery brackets or metal shells. This application helps prevent material weakening that might occur with traditional thread cutting methods.

Company Profile:

Thread Size M2 M10 Zinc Plate Pan Head Screw DIN7500 PE 5

Packing and Shipping:


Carton Packaging	Outer Cartonbox Packaging	Pallet Packaging
Bolts are packed in neutral packaging boxes, with standard quantities arranged in small cartons. The exact number of units per carton will be confirmed with the customer to align with their specific requirements. Customized packaging configurations are available upon request.	The small cartons are then consolidated into larger master cartons for secure transportation and storage. The quantity per master carton can be customized based on client specifications or aligned with standard logistical requirements.	The palletized units are securely wrapped with waterproof film and reinforced with packaging straps. Customer-specific shipping marks or labels are affixed to each pallet, ensuring clear identification and compliance with logistics requirements. This final packaging stage guarantees weather-resistant protection and stability during transportation.
