Pan Head Screw for Screw Fastener M2-M10 DIN7500 Thread Size

Brand Name:	YONGBIAO
Model Number:	DIN7500 Pan Head Hexagon Screws
MOQ:	50000
Price:	0.01-0.05USD
Packaging Details:	Carton Box/Pallet/Customized
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Certification:

ISO90001

Thread Size:

M2-M10

Surface:

Zinc Plate

Quantity:

1000-5000pieces/Package

Keywords:

Screw Fastener

Delivery:

7-15days

Thread:

DIN7500(PE)

Transport Package:

Plastic Bags And Cartons

Port:

NINGBO Or SHANGHAI

Highlight:

M2 M10 Pan Head Screw

DIN7500 Pan Head Screw

Product Description

Product Description:

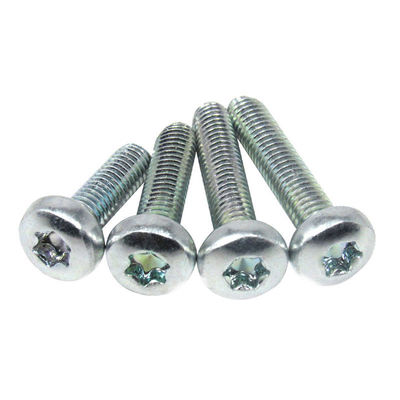

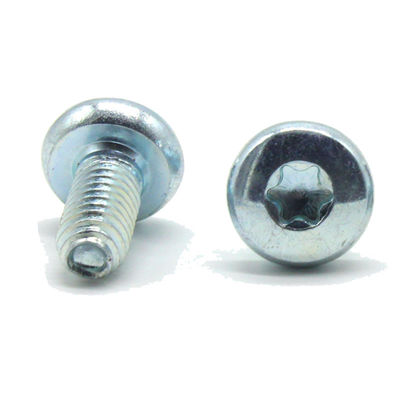

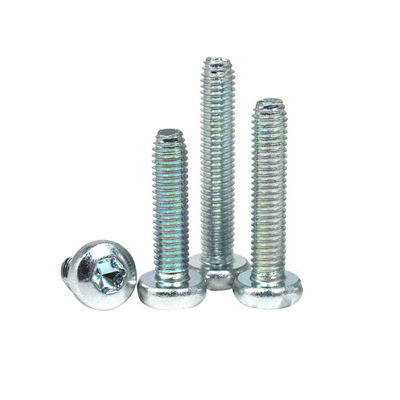

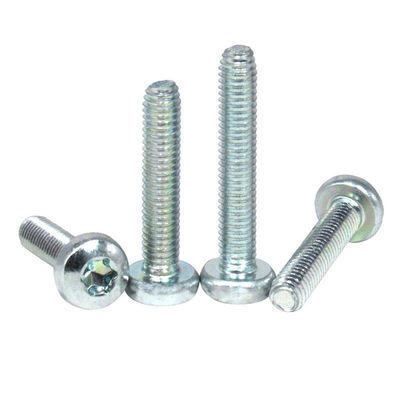

The Hexalobular Socket Pan Head Self Tapping Screw in DIN7500 standard combines Torx drive and head design, designed for high torque, anti slip scenarios, especially suitable for precision assembly or harsh environments.

Mainly used for connecting aluminum alloys, galvanized steel sheets, solar brackets, and communication base stations.

Features:

Curved Head and Supporting Surface: The head is curved with a supporting surface at the bottom, offering moderate load-bearing capacity. After installation, it exhibits a slightly protruding surface.

Plum Blossom Groove Design: The design of the plum blossom groove enables high torque transmission, minimizing the risk of slipping. It is ideal for automated installation or applications with high torque requirements. Additionally, certain models feature anti-disassembly capabilities to enhance security.

Reduction of Material Cracking: By extruding plastic or thin metal plates to create internal threads, the risk of material cracking can be decreased. This approach is particularly effective for brittle plastics like PC and PMMA.

Cone or Guide Thread Design: The design with cone or guide threads helps reduce the initial installation resistance, thus making the installation process smoother and more efficient.

Technical Parameters:

Pan Head Screw for Screw Fastener M2-M10 DIN7500 Thread Size 3

d		M2	M2.5	M3	(M3.5)	M4	M5	M6	M8	M10
P		0.4	0.45	0.5	0.6	0.7	0.8	1	1.25	1.5
b	MIN	25	25	25	38	38	38	38	38	38
dk	MAX	4	5	5.6	7	8	9.5	12	16	20
dk	MIN	3.7	4.7	5.3	6.64	7.64	9.14	11.57	15.57	19.48
k	MAX	1.6	2.1	2.4	2.6	3.1	3.7	4.6	6	7.5
k	MIN	1.46	1.96	2.26	2.46	2.92	3.52	4.3	5.7	7.14
x	MAX	1	1.1	1.25	1.5	1.75	2	2.5	3.2	3.8
style		T6	T8	T10	T15	T20	T25	T30	T45	T50
A		1.75	2.4	2.8	3.35	3.95	4.5	5.6	7.95	8.95
t	MAX	0.77	1.04	1.27	1.33	1.66	1.91	2.42	3.18	4.02
t	MIN	0.63	0.91	1.01	1.07	1.27	1.52	2.02	2.79	3.62

Applications:

In the automotive manufacturing industry, Hexalobular Socket Pan Head Self Tapping Screw offers advantages in enhancing anti-loosening properties. This technology utilizes thread rolling, eliminating the need for tapping teeth, and allowing direct squeezing and locking. It finds widespread application in connecting various aluminum alloy parts.

Within industrial machinery like machine tools and hydraulic systems, the points of connection that endure dynamic loads rely on the exceptional strength provided by rolled threads. This ensures stability and durability in demanding operational environments.

Moreover, in the assembly of new energy battery modules, Hexalobular Socket Pan Head Self Tapping Screw plays a crucial role. It can be utilized in lithium battery brackets or metal shells, preventing material weakening that may occur with traditional thread cutting methods.

Company Profile:

Pan Head Screw for Screw Fastener M2-M10 DIN7500 Thread Size 5

Packing and Shipping:


Carton Packaging	Outer Cartonbox Packaging	Pallet Packaging
Bolts are packed in neutral packaging boxes, with standard quantities arranged in small cartons. The exact number of units per carton will be confirmed with the customer to align with their specific requirements. Customized packaging configurations are available upon request.	The small cartons are then consolidated into larger master cartons for secure transportation and storage. The quantity per master carton can be customized based on client specifications or aligned with standard logistical requirements.	The palletized units are securely wrapped with waterproof film and reinforced with packaging straps. Customer-specific shipping marks or labels are affixed to each pallet, ensuring clear identification and compliance with logistics requirements. This final packaging stage guarantees weather-resistant protection and stability during transportation.
