Screw Fastener DIN7500 Studs 1000-5000 Pieces Per Package

Brand Name:	YONGBIAO
Model Number:	DIN7500 Pan Head Hexagon Screws
MOQ:	50000
Price:	0.01-0.05USD
Packaging Details:	Carton Box/Pallet/Customized
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Certification:

ISO90001

Head:

Hexalobular Socket Pan Head

Thread Size:

M2-M10

Thread:

DIN7500(PE)

Quantity:

1000-5000pieces/Package

Part Number:

DIN7500(PE)

Surface:

Zinc Plate

Keywords:

Screw Fastener

Port:

NINGBO Or SHANGHAI

Highlight:

Screw Fastener Studs

DIN7500 Screw Fastener Studs

Product Description

Product Description:

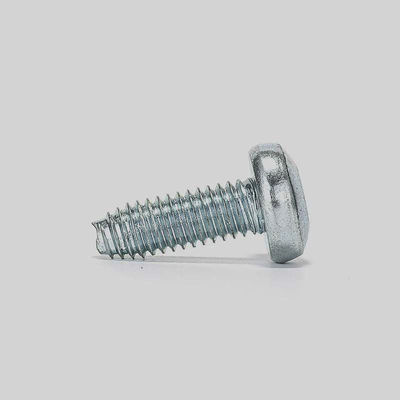

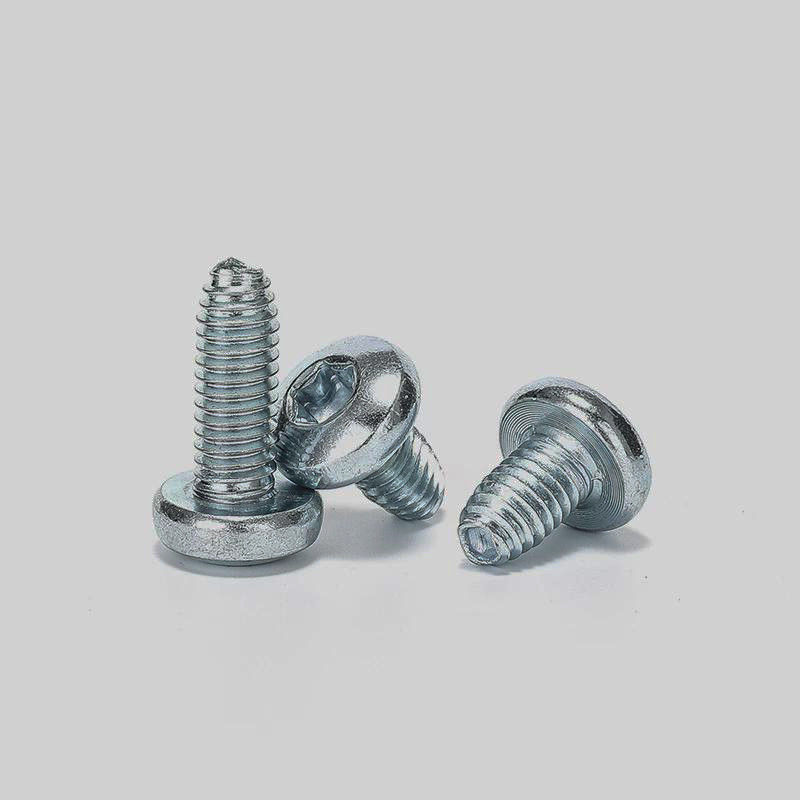

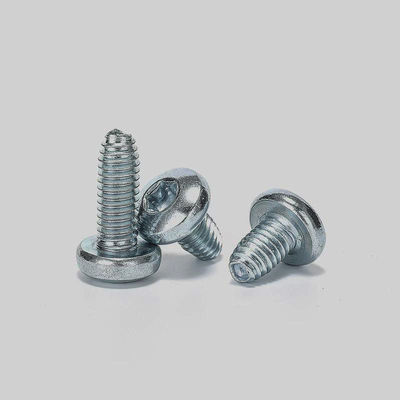

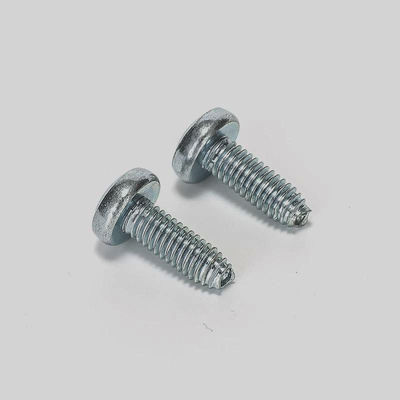

The Hexalobular Socket Pan Head Self Tapping Screw in DIN7500 standard incorporates a Torx drive and head design, tailored for high torque and slip-resistant applications. This makes it particularly well-suited for precision assembly in challenging environments. It is commonly employed in the connection of aluminum alloys, galvanized steel sheets, solar brackets, and communication base stations.

Features:

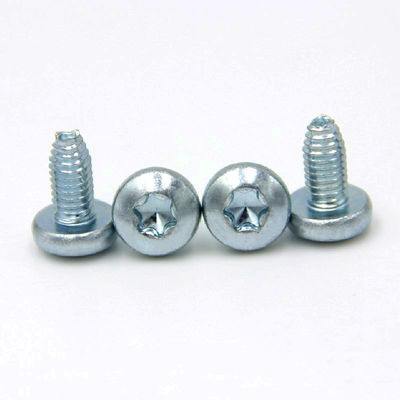

Curved head with supporting surface at the bottom, providing moderate load-bearing capacity, slightly protruding surface after installation. The design of the plum blossom groove can achieve high torque transmission, reduce the risk of slipping, and is suitable for automated installation or high torque requirements.

Some models support anti-disassembly to enhance security. By extruding plastic or thin metal plates to form internal threads, material cracking can be reduced (especially suitable for brittle plastics such as PC and PMMA). Cone or guide thread design reduces initial installation resistance.

Technical Parameters:

Screw Fastener DIN7500 Studs 1000-5000 Pieces Per Package 3

d		M2	M2.5	M3	(M3.5)	M4	M5	M6	M8	M10
P		0.4	0.45	0.5	0.6	0.7	0.8	1	1.25	1.5
b	MIN	25	25	25	38	38	38	38	38	38
dk	MAX	4	5	5.6	7	8	9.5	12	16	20
dk	MIN	3.7	4.7	5.3	6.64	7.64	9.14	11.57	15.57	19.48
k	MAX	1.6	2.1	2.4	2.6	3.1	3.7	4.6	6	7.5
k	MIN	1.46	1.96	2.26	2.46	2.92	3.52	4.3	5.7	7.14
x	MAX	1	1.1	1.25	1.5	1.75	2	2.5	3.2	3.8
style		T6	T8	T10	T15	T20	T25	T30	T45	T50
A		1.75	2.4	2.8	3.35	3.95	4.5	5.6	7.95	8.95
t	MAX	0.77	1.04	1.27	1.33	1.66	1.91	2.42	3.18	4.02
t	MIN	0.63	0.91	1.01	1.07	1.27	1.52	2.02	2.79	3.62

Applications:

In the automotive manufacturing industry, the Hexalobular Socket Pan Head Self Tapping Screw is widely utilized. This screw type employs thread rolling technology to improve anti-loosening properties, especially in connecting various aluminum alloy parts.

Unlike traditional screws, the Hexalobular Socket Pan Head Self Tapping Screw does not require tapping teeth. Instead, it can be directly squeezed and locked, providing a secure connection. This technology is particularly beneficial for connecting points that endure dynamic loads in industrial machinery like machine tools and hydraulic systems.

Moreover, thread rolling technology is employed in the assembly of new energy battery modules. By using these screws in lithium battery brackets or metal shells, it helps prevent material weakening that can occur with traditional thread cutting methods.

Company Profile:

Screw Fastener DIN7500 Studs 1000-5000 Pieces Per Package 4

Packing and Shipping:


Carton Packaging	Outer Cartonbox Packaging	Pallet Packaging
Bolts are packed in neutral packaging boxes, with standard quantities arranged in small cartons. The exact number of units per carton will be confirmed with the customer to align with their specific requirements. Customized packaging configurations are available upon request.	The small cartons are then consolidated into larger master cartons for secure transportation and storage. The quantity per master carton can be customized based on client specifications or aligned with standard logistical requirements.	The palletized units are securely wrapped with waterproof film and reinforced with packaging straps. Customer-specific shipping marks or labels are affixed to each pallet, ensuring clear identification and compliance with logistics requirements. This final packaging stage guarantees weather-resistant protection and stability during transportation.
