DIN7500 Hexalobular Socket Pan Head Thread Rolling Screws

Brand Name:	YONGBIAO
Model Number:	DIN7500(PE)
MOQ:	50000
Price:	0.011-0.03USD/PCS
Packaging Details:	Carton Box/Pallet/Customized
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Certification:

ISO 9001 IATF16949

Standard:

DIN7500(PE)

Name:

Pan Head Screw

Thread Type:

Rolling

Logo Custom:

Material:

Stainless Steel,Carbon Steel

Color:

Zinc Plated,Silvery Or Black

Grade:

4.8,8.8

Product Description

DIN7500 Hexalobular Socket Pan Head Thread Rolling Screws

The Torx Pan Head Self Tapping Screw in DIN7500 standard combines Torx drive and head design, designed for high torque, anti slip scenarios, especially suitable for precision assembly or harsh environments.Mainly used for connecting aluminum alloys, galvanized steel sheets, solar brackets, and communication base stations.

Technical Parameters:

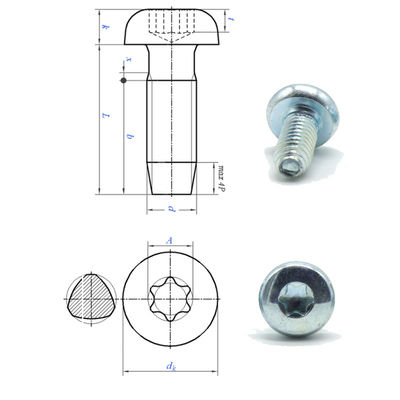

DIN7500 Hexalobular Socket Pan Head Thread Rolling Screws 0

d		M2	M2.5	M3	(M3.5)	M4	M5	M6	M8	M10
P		0.4	0.45	0.5	0.6	0.7	0.8	1	1.25	1.5
b	MIN	25	25	25	38	38	38	38	38	38
dk	MAX	4	5	5.6	7	8	9.5	12	16	20
dk	MIN	3.7	4.7	5.3	6.64	7.64	9.14	11.57	15.57	19.48
k	MAX	1.6	2.1	2.4	2.6	3.1	3.7	4.6	6	7.5
k	MIN	1.46	1.96	2.26	2.46	2.92	3.52	4.3	5.7	7.14
x	MAX	1	1.1	1.25	1.5	1.75	2	2.5	3.2	3.8
style		T6	T8	T10	T15	T20	T25	T30	T45	T50
A		1.75	2.4	2.8	3.35	3.95	4.5	5.6	7.95	8.95
t	MAX	0.77	1.04	1.27	1.33	1.66	1.91	2.42	3.18	4.02
t	MIN	0.63	0.91	1.01	1.07	1.27	1.52	2.02	2.79	3.62

Advantage:

Curved head with supporting surface at the bottom, providing moderate load-bearing capacity, slightly protruding surface after installation.The design of the plum blossom groove can achieve high torque transmission, reduce the risk of slipping, and is suitable for automated installation or high torque requirements,And some models support anti disassembly to enhance security.By extruding plastic or thin metal plates to form internal threads, material cracking can be reduced (especially suitable for brittle plastics such as PC and PMMA).Cone or guide thread design reduces initial installation resistance.

Applications:

Flat Head Hex Socket Bolt,Primarily employed in furniture assembly systems, this countersunk bolt design finds extensive application in:Wardrobe construction,Wooden bed frame assembly,Chair structural connections,Various other wooden furniture assembly applications,The low-profile head configuration ensures flush surface finishing while the hex socket drive provides secure torque transmission during installation.

Company Profile:

DIN7500 Hexalobular Socket Pan Head Thread Rolling Screws 6

Packaging:


Carton Packaging	Outer Cartonbox Packaging	Pallet Packaging
Bolts are packed in neutral packaging boxes, with standard quantities arranged in small cartons. The exact number of units per carton will be confirmed with the customer to align with their specific requirements. Customized packaging configurations are available upon request.	The small cartons are then consolidated into larger master cartons for secure transportation and storage. The quantity per master carton can be customized based on client specifications or aligned with standard logistical requirements.	The palletized units are securely wrapped with waterproof film and reinforced with packaging straps. Customer-specific shipping marks or labels are affixed to each pallet, ensuring clear identification and compliance with logistics requirements. This final packaging stage guarantees weather-resistant protection and stability during transportation.
