Machine Bolt

DIN Stanard Carbon Steel Zinc Finish Hex Socket Pan Head Botton Screws

All Category

Cabinet Gas Spring

Ms. Amylin

amylin@ybfasteners.com

+8618658229310

Contact Now

DIN Stanard Carbon Steel Zinc Finish Hex Socket Pan Head Botton Screws

Brand Name:	YongBiao
Model Number:	Head Hex Socket Botton Screws
MOQ:	10000
Price:	Negotitaion
Packaging Details:	Carton Box/Pallet/Customized
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

ZheJiang China

Certification:

ISO9001,TUV

Standard:

DIN, ANSI, GB, JIS,Customized

Sample:

Finish:

Zinc Plated

Delivery Port:

ShangHai Or NingBo

Size:

M3-M16

Thread Type:

Coarse

Corrosion Resistance:

Medium

Hs Code:

73181400

Supply Ability:

5000000 Tons/Year

Highlight:

din hex socket button head screws

Carbon hex button head screw

Zinc hex button head screw

Product Description

Grade 8.8 Carbon Steel Blue-White Zinc Hex Socket Pan Head Screws

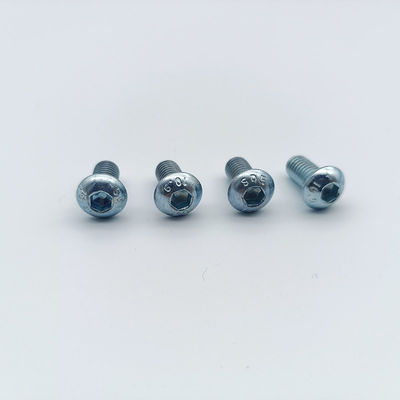

DIN Stanard Carbon Steel Zinc Finish Hex Socket Pan Head Botton Screws 1

1.Products Details:

Hexagon socket button head screws, also known as socket cap screws, are a type of screw widely used in mechanical and industrial applications. They are characterized by a rounded head with a hexagonal socket on the top, which allows for precise torque application using a hex key.

Structure and Design

• Head: The button - like head provides a smooth and rounded surface, which is aesthetically pleasing and also helps prevent damage to adjacent components or surfaces. It has a recessed hexagonal socket that enables the use of a hex - shaped tool for driving the screw.

• Shank: The shank of the screw is typically cylindrical and threaded along its length. The thread design can vary depending on the application, with common thread types including metric and imperial threads. The shank diameter and length are available in a wide range of sizes to meet different fastening requirements.

2.Key Features:

Good Appearance
- They have a smooth and rounded head, which can provide a more aesthetically pleasing appearance, especially in applications where the appearance of the product is important.
High Strength
- The hexagon socket design allows for a more efficient transfer of torque, enabling the screw to be tightened to a higher torque level without stripping the driving recess. This results in a more secure and reliable connection.
Space - saving
- The round head of the screw is relatively small in size, which can save space in some applications where space is limited
Easy Assembly
- With the use of a hexagon socket wrench, the installation and removal of the screws are relatively convenient, which can improve the efficiency of assembly and disassembly.
Wide Application
- They are suitable for a variety of materials and applications, such as in the assembly of machinery, electronics, furniture and other industries.

3.Technical Parameters of Half Round Hex Socket Machine Screw

d		M3	M4	M5	M6	M8	M10	M12	M16
P		0.5	0.7	0.8	1	1.25	1.5	1.75	2
b		18	20	22	24	28	32	36	44
da	MAX	3.6	4.7	5.7	6.8	9.2	11.2	13.7	17.7
dk	MAX	5.7	7.6	9.5	10.5	14	17.5	21	28
dk	MIN	5.4	7.24	9.14	10.07	13.57	17.07	20.48	27.48
d1		2.6	3.8	5	6	7.7	10	12	16
ds	MAX	3	4	5	6	8	10	12	16
ds	MIN	2.86	3.82	4.82	5.82	7.78	9.78	11.73	15.73
dw	MIN	4.97	6.66	8.41	9.26	12.48	15.7	18.84	25.28
e ③	MIN	2.3	2.87	3.44	4.58	5.72	6.86	9.15	11.43
k	MAX	1.65	2.2	2.75	3.3	4.4	5.5	6.6	8.8
k	MIN	1.4	1.95	2.5	3	4.1	5.2	6.24	8.44
r3	MAX	3.7	4.6	5.75	6.15	7.95	9.8	11.2	15.3
r3	MIN	3.3	4.2	5.25	5.65	7.45	9.2	10.5	14.5
r1	MIN	0.1	0.2	0.2	0.25	0.4	0.4	0.6	0.6
r2	MIN	0.3	0.4	0.45	0.5	0.7	0.7	1.1	1.1
s	MAX	2	2.5	3	4	5	6	8	10
	MAX	2.08	2.58	3.08	4.095	5.14	6.14	8.175	10.175
	MIN	2.02	2.52	3.02	4.02	5.02	6.02	8.025	10.025
t	MAX	1.2	1.65	2.12	2.26	3.05	3.75	4.61	6.19
t	MIN	1.04	1.3	1.56	2.08	2.6	3.12	4.16	5.2
w	MIN	0.2	0.3	0.38	0.74	1.05	1.45	1.63	2.25

DIN Stanard Carbon Steel Zinc Finish Hex Socket Pan Head Botton Screws 2

4.Certificate Display

DIN Stanard Carbon Steel Zinc Finish Hex Socket Pan Head Botton Screws 3

5.Production Process

DIN Stanard Carbon Steel Zinc Finish Hex Socket Pan Head Botton Screws 6

6.Packaging and shipping Details

DIN Stanard Carbon Steel Zinc Finish Hex Socket Pan Head Botton Screws 7

DIN Stanard Carbon Steel Zinc Finish Hex Socket Pan Head Botton Screws 8
