Hex Head Bolt

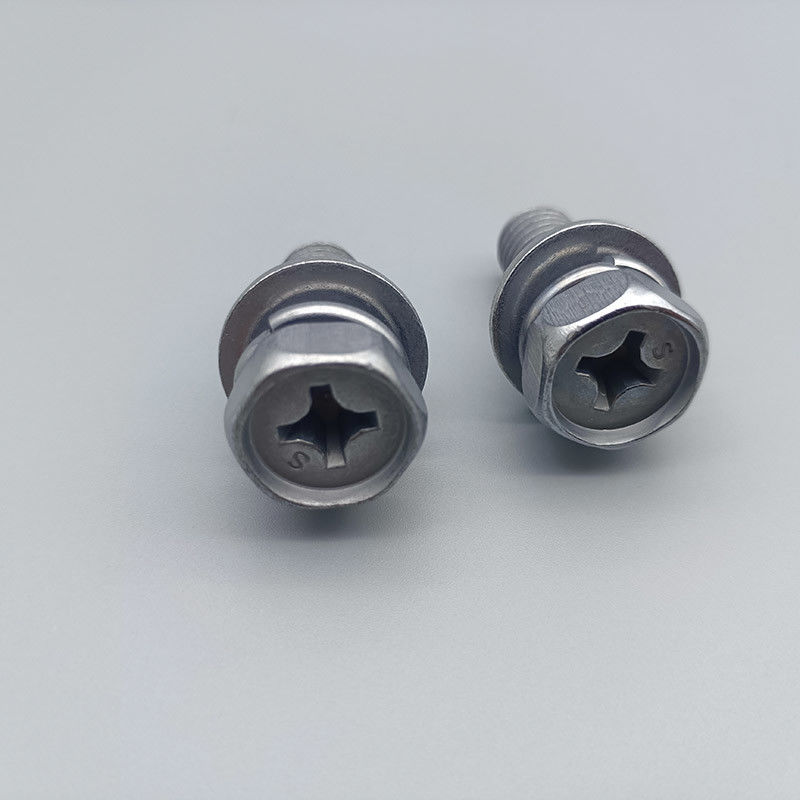

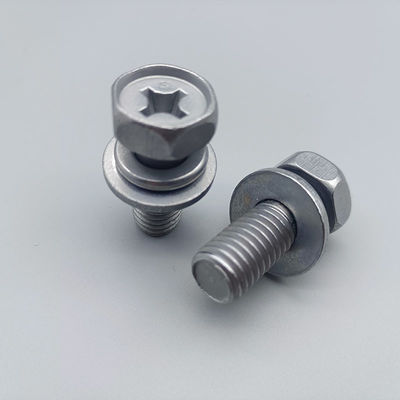

Phillips Hex Bolt 12.9 Grade Nickel Plating M3 To M8 With Washer Set

All Category

Cabinet Gas Spring

Ms. Amylin

amylin@ybfasteners.com

+8618658229310

Contact Now

Phillips Hex Bolt 12.9 Grade Nickel Plating M3 To M8 With Washer Set

Brand Name:	YB
Model Number:	Hex Head Screw
MOQ:	10000
Price:	Negotiation
Packaging Details:	Carton Box/Pallet/Customized
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

ZheJiang China

Certification:

ISO9001,TUV

Surface:

Nickel Plating

Payment:

Color:

Silver, Gray

Head Type:

Hexagon Head

Standard:

DIN,GB

Application:

Machinery,construction,automative And So On

Grade:

4.8/6.8/8.8/10.9/12.9

Transport Package:

Carton Box/Pallet

Supply Ability:

5000000 PCS/Year

Highlight:

M8 phillips bolt

Nickel Plating phillips bolt

M3 phillips bolt

Product Description

Phillips Hex Bolt 12.9 Grade Blue-White Zinc Plated M3 to M8 with Washer Set

1.Products Details:

This assembly is a pre-configured fastening solution combining three components:
1. Cross Recessed Hexagon Head Bolt: Features a hexagonal shank for wrench tightening and a cross-shaped recess (Phillips drive) for screwdriver compatibility, offering dual-tool accessibility.
2. Spring Washer: A helical washer that provides tension and vibration resistance, preventing loosening under dynamic loads.
3. Flat Washer: A thin circular washer placed between the bolt head and the surface, distributing pressure evenly and protecting the material from damage.

2.Key Features:

- Saves time by eliminating separate component handling during installation.
- Spring washer reduces loosening in high-vibration environments (e.g., automotive, industrial machinery).
- Flat washer prevents bolt head indentation on soft materials (e.g., wood, aluminum).
- Hex head + cross recess allow flexibility in installation tools.

3.Technical Parameters of Hex Bolt with lock and plain washer

d		M4	M5	M6	M8
a	MAX	1.4	1.6	2	2.5
b	MIN	38	38	38	38
h		0.8	1	1.6	1.6
H		2.75	3.25	4	5
dc		9	10	12	16
d2		6.78	8.75	10.71	13.64

Phillips Hex Bolt 12.9 Grade Nickel Plating M3 To M8 With Washer Set 1

4.Certificate Display

Phillips Hex Bolt 12.9 Grade Nickel Plating M3 To M8 With Washer Set 2

5.Production Process

Phillips Hex Bolt 12.9 Grade Nickel Plating M3 To M8 With Washer Set 5

6.Packaging and shipping Details

Phillips Hex Bolt 12.9 Grade Nickel Plating M3 To M8 With Washer Set 6
