Hex Head Bolt

Cross Slot Hex Head Screw Blue-White Zinc Spring/Flat Washer Combo

All Category

Cabinet Gas Spring

Mr. Sales

info@ybfasteners.com

+8618658229695

Contact Now

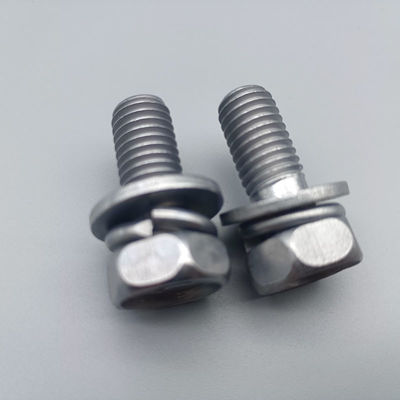

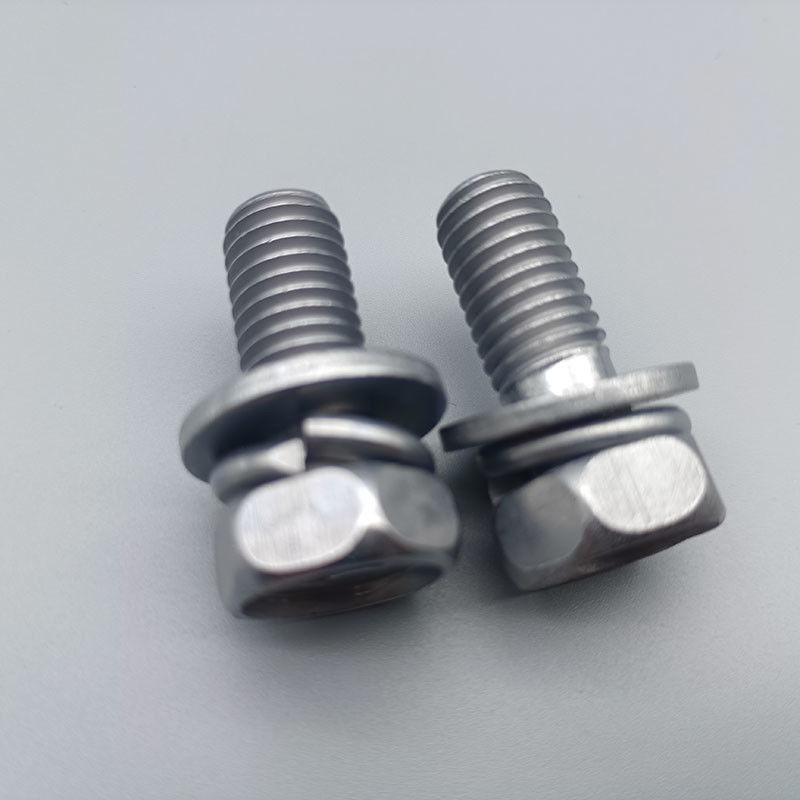

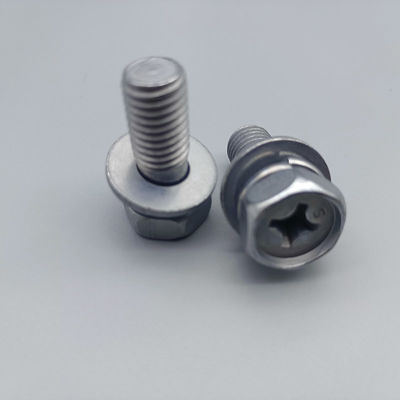

Cross Slot Hex Head Screw Blue-White Zinc Spring/Flat Washer Combo

Brand Name:	YB
Model Number:	Screws with washer
MOQ:	10000
Price:	Negotiation
Packaging Details:	Carton Box/Pallet/Customized
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

ZheJiang China

Certification:

ISO9001

Finish:

Zinc Plated

Material:

Stainless Steel

Thread Diameter:

3mm-12mm

Sample:

Application Scrope:

Machinery Industry

Delivery:

7-15days

Drive Style:

Phillips

Package Quantity:

100 Pieces

Supply Ability:

500Tons/month

Product Description

Cross Slot Hex Head Screw Blue-White Zinc Spring/Flat Washer Combo

1.Products Details:

This assembly is a pre-configured fastening solution combining three components:
1. Cross Recessed Hexagon Head Bolt: Features a hexagonal shank for wrench tightening and a cross-shaped recess (Phillips drive) for screwdriver compatibility, offering dual-tool accessibility.
2. Spring Washer: A helical washer that provides tension and vibration resistance, preventing loosening under dynamic loads.
3. Flat Washer: A thin circular washer placed between the bolt head and the surface, distributing pressure evenly and protecting the material from damage.

2.Key Features:

- Saves time by eliminating separate component handling during installation.
- Spring washer reduces loosening in high-vibration environments (e.g., automotive, industrial machinery).
- Flat washer prevents bolt head indentation on soft materials (e.g., wood, aluminum).
- Hex head + cross recess allow flexibility in installation tools.

3.Technical Parameters of Hex Bolt with lock and plain washer

Cross Slot Hex Head Screw Blue-White Zinc Spring/Flat Washer Combo 0

d		M4	M5	M6	M8
a	MAX	1.4	1.6	2	2.5
b	MIN	38	38	38	38
h		0.8	1	1.6	1.6
H		2.75	3.25	4	5
dc		9	10	12	16
d2		6.78	8.75	10.71	13.64

4.Certificate Display

Cross Slot Hex Head Screw Blue-White Zinc Spring/Flat Washer Combo 1

5.Production Process

Cross Slot Hex Head Screw Blue-White Zinc Spring/Flat Washer Combo 2

6.Packaging and shipping Details

Cross Slot Hex Head Screw Blue-White Zinc Spring/Flat Washer Combo 3
