Stainless Steel Screw

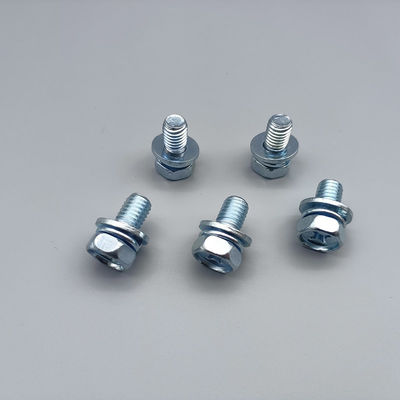

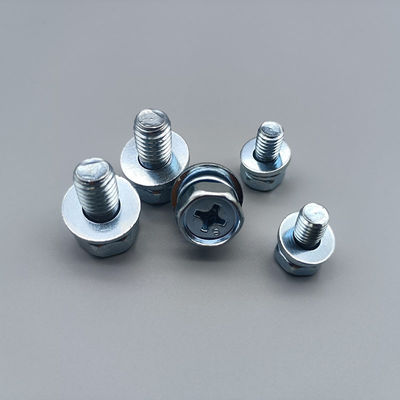

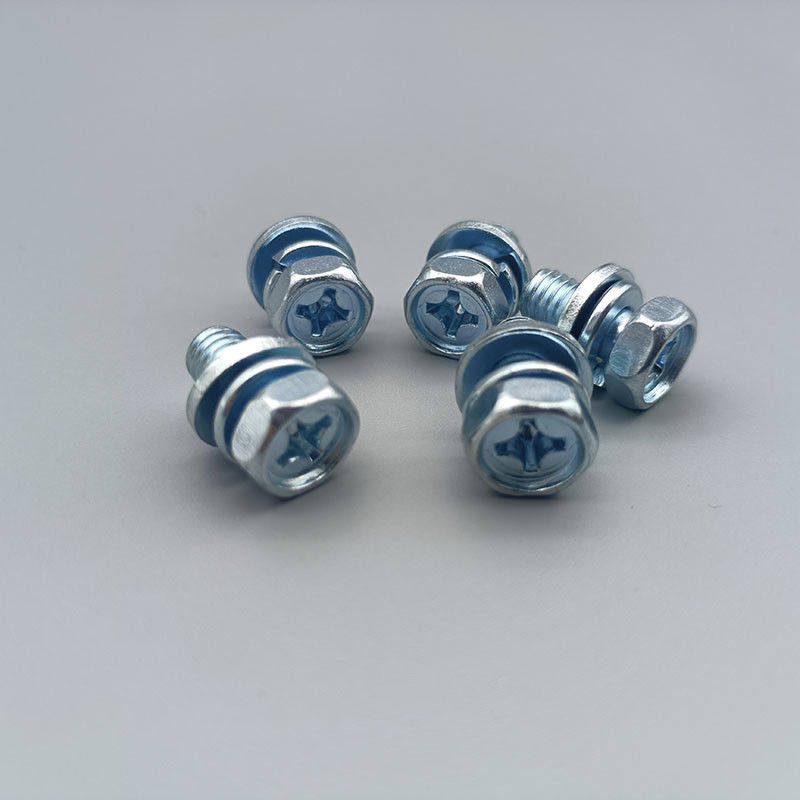

Zinc Coated Phillips Hex Head Screw with Spring/Flat Washer Kit

All Category

Cabinet Gas Spring

Mr. Sales

info@ybfasteners.com

+8618658229695

Contact Now

Zinc Coated Phillips Hex Head Screw with Spring/Flat Washer Kit

Brand Name:	YONGBIAO
Model Number:	Screw with Washer
MOQ:	10000
Price:	Negotiation
Packaging Details:	Carton Box/Pallet/Customized
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

ZHEJAING CHINA

Certification:

ISO9001

Grade:

4.8,B8,5.6,10.9,8.8

Head:

Hexagon Head

Corrosion Resistance:

Trade Term:

EXW/FOB/CIF/DDP/DDU

Application:

Wood, Metal, Plastic

Thickness:

4 - 20 Mm

Tolerance:

24-48H

Manufacturer:

YB FASTNER Company

Finish:

Zinc Plated

Sample:

Supply Ability:

500Tons/month

Product Description

Zinc Coated Phillips Hex Head Screw with Spring/Flat Washer Kit

1.Products Details:

This assembly is a pre-configured fastening solution combining three components:
1. Cross Recessed Hexagon Head Bolt: Features a hexagonal shank for wrench tightening and a cross-shaped recess (Phillips drive) for screwdriver compatibility, offering dual-tool accessibility.
2. Spring Washer: A helical washer that provides tension and vibration resistance, preventing loosening under dynamic loads.
3. Flat Washer: A thin circular washer placed between the bolt head and the surface, distributing pressure evenly and protecting the material from damage.

2.Key Features:

- Saves time by eliminating separate component handling during installation.
- Spring washer reduces loosening in high-vibration environments (e.g., automotive, industrial machinery).
- Flat washer prevents bolt head indentation on soft materials (e.g., wood, aluminum).
- Hex head + cross recess allow flexibility in installation tools.

3.Technical Parameters of Hex Bolt with lock and plain washer

Zinc Coated Phillips Hex Head Screw with Spring/Flat Washer Kit 0

d		M4	M5	M6	M8
a	MAX	1.4	1.6	2	2.5
b	MIN	38	38	38	38
h		0.8	1	1.6	1.6
H		2.75	3.25	4	5
dc		9	10	12	16
d2		6.78	8.75	10.71	13.64

4.Certificate Display

Zinc Coated Phillips Hex Head Screw with Spring/Flat Washer Kit 1

5.Production Process

Zinc Coated Phillips Hex Head Screw with Spring/Flat Washer Kit 2

6.Packaging and shipping Details

Zinc Coated Phillips Hex Head Screw with Spring/Flat Washer Kit 3
