High Strength Phillips Hex Head Screw With Lock And Plain Washer

Brand Name:	YONGBIAO
Model Number:	Hexagon Bolt with Washer Assemblies
MOQ:	50000
Price:	Negotiation
Packaging Details:	Carton Box/Pallet/Customized
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

ZHEJIANG CHINA

Certification:

ISO9001

Thread Type:

Full Thread

Application Scope:

Machinery Industry

Grade:

4.8,8.8,10.9,12.9

Port:

NINGBO Or SHANGHAI

Standard:

GB/DIN/ISO

Material:

Stainless Steel

Trademark:

YONGBIAO

Payment:

FOB/CIF/EXW

Supply Ability:

5000000 Tons/Year

Highlight:

Plain Washer Hex Head Screw

High Strength Hex Head Screw

Lock Phillips Hex Head Screw

Product Description

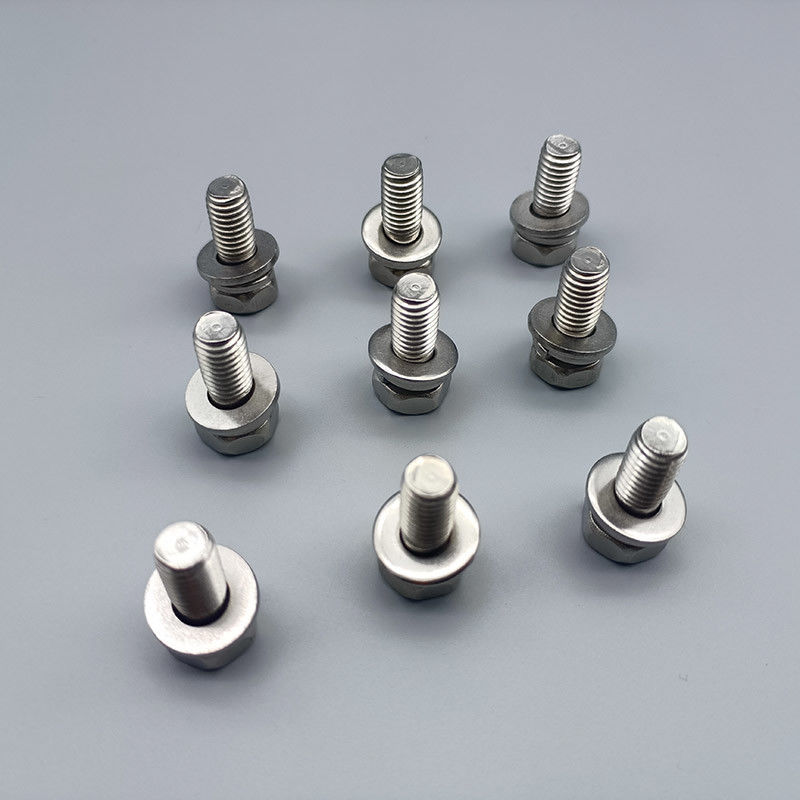

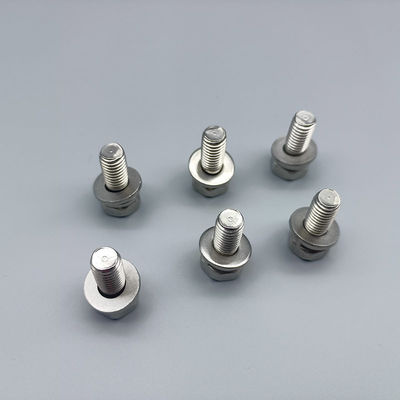

High Strength Phillips Hex Head With Lock And Plain Washer

1.Products Details:

This assembly is a pre-configured fastening solution combining three components:
1. Cross Recessed Hexagon Head Bolt: Features a hexagonal shank for wrench tightening and a cross-shaped recess (Phillips drive) for screwdriver compatibility, offering dual-tool accessibility.
2. Spring Washer: A helical washer that provides tension and vibration resistance, preventing loosening under dynamic loads.
3. Flat Washer: A thin circular washer placed between the bolt head and the surface, distributing pressure evenly and protecting the material from damage.

2.Key Features:

- Saves time by eliminating separate component handling during installation.
- Spring washer reduces loosening in high-vibration environments (e.g., automotive, industrial machinery).
- Flat washer prevents bolt head indentation on soft materials (e.g., wood, aluminum).
- Hex head + cross recess allow flexibility in installation tools.

3.Technical Parameters of Hex Bolt with lock and plain washer

d		M4	M5	M6	M8
a	MAX	1.4	1.6	2	2.5
b	MIN	38	38	38	38
h		0.8	1	1.6	1.6
H		2.75	3.25	4	5
dc		9	10	12	16
d2		6.78	8.75	10.71	13.64

High Strength Phillips Hex Head Screw With Lock And Plain Washer 1

4.Certificate Display

High Strength Phillips Hex Head Screw With Lock And Plain Washer 2

5.Production Process

High Strength Phillips Hex Head Screw With Lock And Plain Washer 5

6.Packaging and shipping Details

High Strength Phillips Hex Head Screw With Lock And Plain Washer 6
