High Strength Hex Bolt With Lock And Plain Washer Assemblies

Brand Name:	YongBiao
Model Number:	Bolt with Washer Assemblies
MOQ:	10000
Price:	$0.03
Packaging Details:	carton box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

ZHEJIANG CHINA

Certification:

ISO9001

Finish:

Nickel Plating

Thread Coverage:

Full Thread

Washer:

Lock Washer And Spring Washer

Thickness:

4 - 20 Mm

Thread Diameter:

3mm-12mm

Connection:

Common Bolt

Standard:

DIN,GB,ISO,JIS,BS

Material:

Stainless Steel,carbon Steel

Supply Ability:

500tons/Month

Highlight:

Lock Hex Bolt

High Strength Hex Bolt

Plain Washer Assemblies Hex Bolt

Product Description

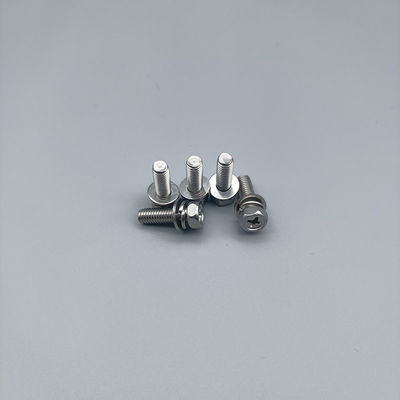

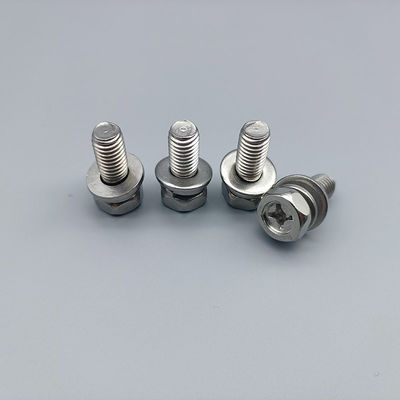

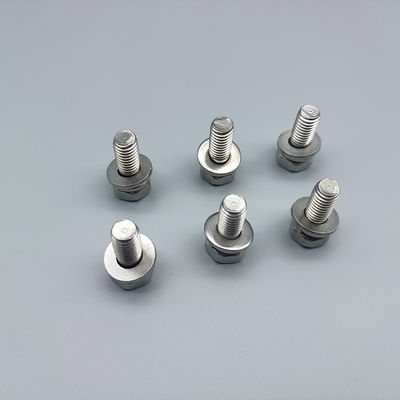

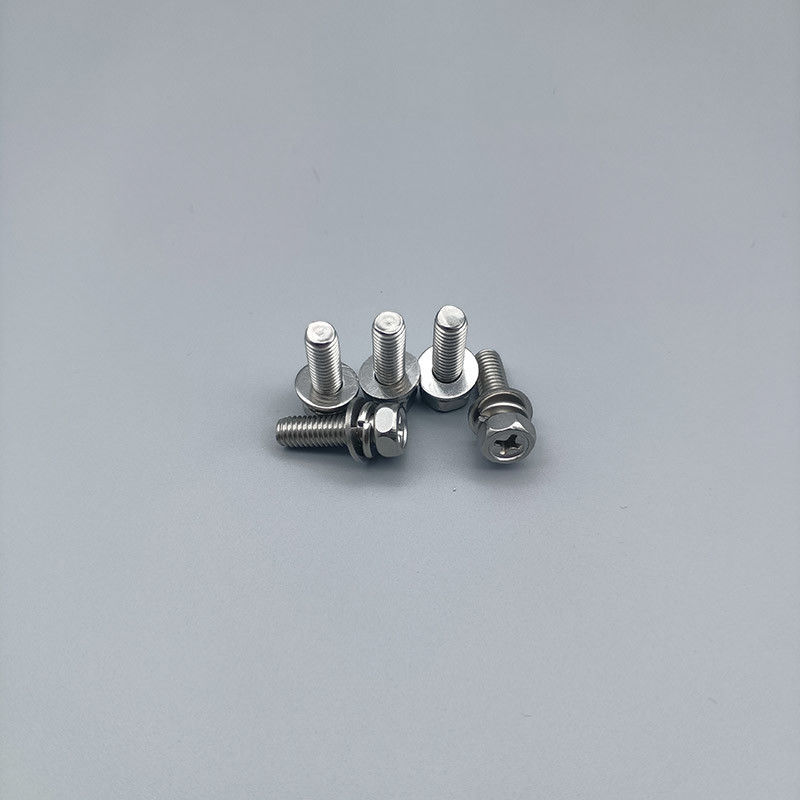

High Strength Hex Bolt With Lock And Plain Washer Assemblies

1.Products Details:

This assembly is a pre-configured fastening solution combining three components:
1. Cross Recessed Hexagon Head Bolt: Features a hexagonal shank for wrench tightening and a cross-shaped recess (Phillips drive) for screwdriver compatibility, offering dual-tool accessibility.
2. Spring Washer: A helical washer that provides tension and vibration resistance, preventing loosening under dynamic loads.
3. Flat Washer: A thin circular washer placed between the bolt head and the surface, distributing pressure evenly and protecting the material from damage.

2.Key Features:

- Saves time by eliminating separate component handling during installation.
- Spring washer reduces loosening in high-vibration environments (e.g., automotive, industrial machinery).
- Flat washer prevents bolt head indentation on soft materials (e.g., wood, aluminum).
- Hex head + cross recess allow flexibility in installation tools.

3.Technical Parameters of Hex Bolt with lock and plain washer

d		M4	M5	M6	M8
a	MAX	1.4	1.6	2	2.5
b	MIN	38	38	38	38
h		0.8	1	1.6	1.6
H		2.75	3.25	4	5
dc		9	10	12	16
d2		6.78	8.75	10.71	13.64

High Strength Hex Bolt With Lock And Plain Washer Assemblies 1

4.Certificate Display

High Strength Hex Bolt With Lock And Plain Washer Assemblies 2

High Strength Hex Bolt With Lock And Plain Washer Assemblies 5

5.Production Process

High Strength Hex Bolt With Lock And Plain Washer Assemblies 6

6.Packaging and shipping Details

High Strength Hex Bolt With Lock And Plain Washer Assemblies 7
