Name: Normal Type Spring Lock Washer Single Coil Spring Washer Anti Loosening
Brand: NINGBO YONGBIAO FASTENER CO.,LTD
SKU: GB /T 93 - 1987
Price: 3.03 USD
Availability: InStock

Brand Name:	YongBiao
Model Number:	GB /T 93 - 1987
MOQ:	50000
Price:	Negotiation
Packaging Details:	Carton Box
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

ZHEJAING CHINA

Certification:

ISO9001

Features:

High Precision, Strong Bearing Capacity, Anti-loosening

Shape:

Round, Square

Style:

Split, Flat

Corrosion Resistance:

Salt Spray Test ≥ 48 Hours

Available Material:

Gr2, Gr3, Gr4, Gr5, Gr7, Gr9, Gr12

Surface Treatment:

Plain, Zinc Plated, Black Oxide, HDG

Standard:

DIN, ANSI, GB, JIS,Customized

Material:

Stainless Steel/Carbon Steel

Keyword:

Galvanized Spring Washer

Application:

Mechanical Equipment, Construction, Automotive Industry

Port:

NINGBO Or SHANGHAI

Trade Term:

EXW/FOB/CIF/DDP/DDU

Head Type:

Hex Head, Flat Head, Csk Head, Round Head

Supply Ability:

500TONS/MONTH

Highlight:

Normal Type Spring Lock Washer

Spring Lock Washer Single Coil

Single Coil Spring Washer Anti Loosening

Product Description

Normal Type Single Coil Spring Lock Washers

Carbon steel single coil spring washer is a commonly used fastener, mainly made of carbon steel material, with spring characteristics, usually used to prevent nut loosening.

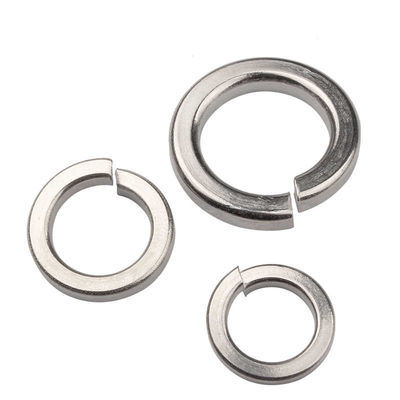

Normal Type Spring Lock Washer Single Coil Spring Washer Anti Loosening 0

SPEC		2	2.5	3	4	5	6	8	10	12	(14)	16	(18)
d	Min	2.1	2.6	3.1	4.1	5.1	6.1	8.1	10.2	12.2	14.2	16.2	18.2
d	Max	2.35	2.85	3.4	4.4	5.4	6.68	8.68	10.9	12.9	14.9	16.9	19.04
h	Standard	0.5	0.65	0.8	1.1	1.3	1.6	2.1	2.6	3.1	3.6	4.1	4.5
	Min	0.42	0.57	0.7	1	1.2	1.5	2	2.45	2.95	3.4	3.9	4.3
	Max	0.58	0.73	0.9	1.2	1.4	1.7	2.2	2.75	3.25	3.8	4.3	4.7
n	Min	0.42	0.57	0.7	1	1.2	1.5	2	2.45	2.95	3.4	3.9	4.3
n	Max	0.58	0.73	0.9	1.2	1.4	1.7	2.2	2.75	3.25	3.8	4.3	4.7
H	Min	1	1.3	1.6	2.2	2.6	3.2	4.2	5.2	6.2	7.2	8.2	9
H	Max	1.25	1.63	2	2.75	3.25	4	5.25	6.5	7.75	9	10.25	11.25

SPEC		20	(22)	24	(27)	30	(33)	36	(39)	42	(45)	48
d	Min	20.2	22.5	24.5	27.5	30.5	33.5	36.5	39.5	42.5	45.5	48.5
d	Max	21.04	23.34	25.5	28.5	31.5	34.7	37.7	40.7	43.7	46.7	49.7
h	Standard	5	5.5	6	6.8	7.5	8.5	9	10	10.5	11	12
	Min	4.8	5.3	5.8	6.5	7.2	8.2	8.7	9.7	10.2	10.7	11.7
	Max	5.2	5.7	6.2	7.1	7.8	8.8	9.3	10.3	10.8	11.3	12.3
n	Min	4.8	5.3	5.8	6.5	7.2	8.2	8.7	9.7	10.2	10.7	11.7
n	Max	5.2	5.7	6.2	7.1	7.8	8.8	9.3	10.3	10.8	11.3	12.3
H	Min	10	11	12	13.6	15	17	18	20	21	22	24
H	Max	12.5	13.75	15	17	18.75	21.25	22.5	25	26.25	27.5	30

Main purpose:

The main use of carbon steel single coil spring washers is to prevent the nut from loosening under the nut.

In mechanical design and production, adding spring washers is a simple and easy method to prevent nuts (or bolts) from automatically loosening.

Especially on equipment with vibration, such as bolts connecting motors to machine bases, spring washers are usually required to prevent nuts from

loosening due to vibration

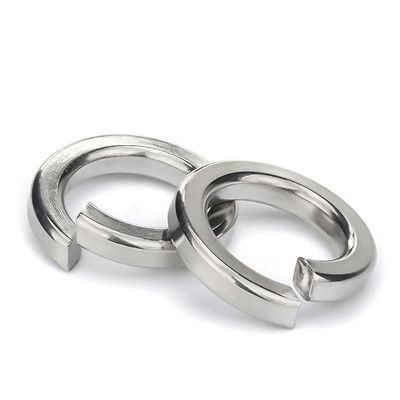

Normal Type Spring Lock Washer Single Coil Spring Washer Anti Loosening 1

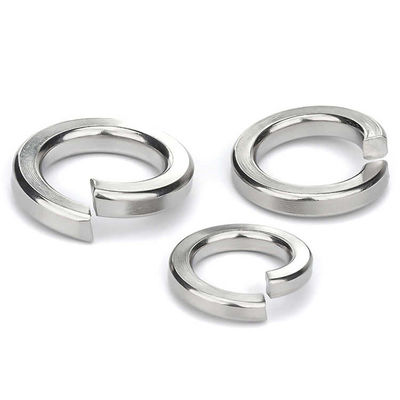

Normal Type Spring Lock Washer Single Coil Spring Washer Anti Loosening 2
