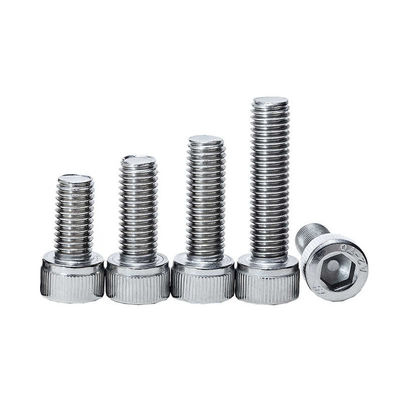

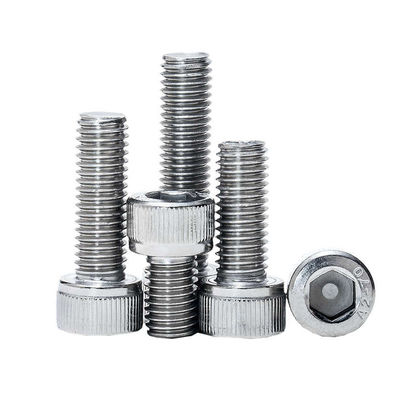

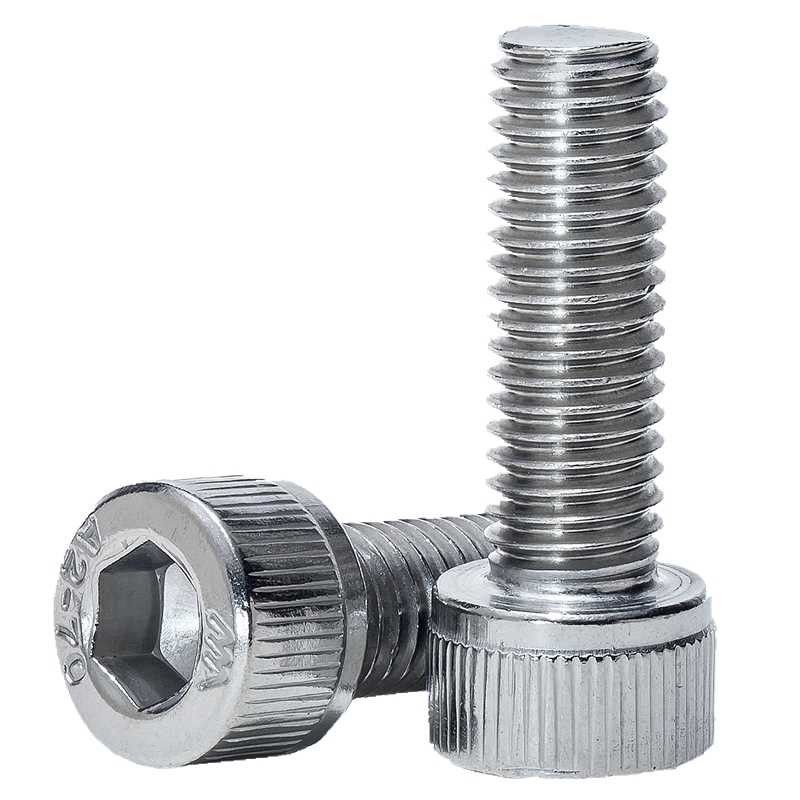

Name: 316 Stainless Steel Screws Grade 10.9 Hexagon Socket Head Cap Screws
Brand: NINGBO YONGBIAO FASTENER CO.,LTD
SKU: GB-70
Price: 0.03 USD
Availability: InStock

Brand Name:	YongBiao
Model Number:	GB-70
MOQ:	2000
Price:	Negotiation
Packaging Details:	Carton Box
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

ZHEJAING CHINA

Certification:

ISO9001

Name:

Stainless Steel Screws

Standard:

DIN, ANSI, GB, JIS,Customized

Material:

Stainless Steel,etc.,copper,carbon Steel,Brass

Finish:

Nickel,Passivated,Plain,Zinc Plated,anodized

Head Type:

Pan Head,Flat,cap Head,etc,Hex

Grade:

10.9,8.8,4.8,12.9 Ect

Application:

Transportation,Electric,military Inductry Etc,Wooden Products,Cabinet& Furniture&hardware

Color:

Natural,Silver White

Drive Type:

Socket

Oem:

Yes,according To Your Drawing

Sample:

Free,Avaliable (shipping Costs Needed),Available Free Within 7days

Port:

NINGBO Or SHANGHAI

Trade Term:

EXW/FOB/CIF/DDP/DDU

Head Type:

Hex Head, Flat Head, Csk Head, Round Head

Supply Ability:

500TONS /MONTH

Highlight:

316 Stainless Steel Screws

Stainless Steel Screws Grade 10.9

Hexagon Socket Head Cap Screws

Product Description

Stainless steel Hexagon Socket Head Cap Screws

Hexagonal stainless steel screws are a type of fastener with a hexagonal head and a concave hexagonal hole in the middle,

commonly used for fastening and connecting mechanical equipment.
The following is a detailed introduction to hexagonal stainless steel screws:
Material:The main materials of hexagonal stainless steel screws include stainless steel materials such as SUS304, SUS202, SUS316, etc.

Among them, SUS304 is the most commonly used material, and its stainless steel wire has a nickel content standard of eight nickel or more.

The commonly circulated hexagonal screws on the market are usually made of materials such as 201, 304, 316, etc. Other special materials

need to be processed and customized according to customer needs.
Classification and Characteristics:

According to the characteristics of the head, hexagonal stainless steel screws can be divided into two types: those with and without rolling patterns on the head.

Hexagonal stainless steel screws have characteristics such as oxidation resistance, high temperature resistance, and corrosion resistance, and are suitable for

multiple fields such as electronic products, electrical appliances, furniture, etc.

316 Stainless Steel Screws Grade 10.9 Hexagon Socket Head Cap Screws 0

d			M1.6	M2	M2.5	M3	M4	M5	M6	M8
P			0.35	0.4	0.45	0.5	0.7	0.8	1	1.25
dk	Max		3.14	3.98	4.68	5.68	7.22	8.72	10.22	13.27
dk	Min		2.86	3.62	4.32	5.32	6.78	8.28	9.78	12.73
ds	Max		1.6	2	2.5	3	4	5	6	8
ds	Min		1.46	1.86	2.36	2.86	3.82	4.82	5.82	7.78
k	Max		1.6	2	2.5	3	4	5	6	8
k	Min		1.46	1.86	2.36	2.86	3.82	4.82	5.7	7.64
s	Standard		1.5	1.5	2	2.5	3	4	5	6
	Min		1.52	1.52	2.02	2.52	3.02	4.02	5.02	6.02
	Max	12.9	1.545	1.545	2.045	2.56	3.08	4.095	5.095	6.095
	Max	Other	1.56	1.56	2.06	2.58	3.08	4.095	5.14	6.14
t	Min		0.7	1	1.1	1.3	2	2.5	3	4

d			M10	M12	(M14)	M16	M20	M24	M30	M36
P			1.5	1.75	2	2	2.5	3	3.5	4
dk	Max		16.27	18.27	21.33	24.33	30.33	36.39	45.39	54.46
dk	Min		15.73	17.73	20.67	23.67	29.67	35.61	44.61	53.54
ds	Max		10	12	14	16	20	24	30	36
ds	Min		9.78	11.73	13.73	15.73	19.67	23.67	29.67	35.61
k	Max		10	12	14	16	20	24	30	36
k	Min		9.64	11.57	13.57	15.57	19.48	23.48	29.48	35.38
s	Standard		8	10	12	14	17	19	22	27
	Min		8.025	10.025	12.032	14.032	17.05	19.065	22.065	27.065
	Max	12.9	8.115	10.115	12.142	14.142	17.23	19.275	22.275	27.275
	Max	Other	8.175	10.175	12.212	14.212	17.23	19.275	22.275	27.275
t	Min		5	6	7	8	10	12	15.5	19

316 Stainless Steel Screws Grade 10.9 Hexagon Socket Head Cap Screws 1

316 Stainless Steel Screws Grade 10.9 Hexagon Socket Head Cap Screws 2
