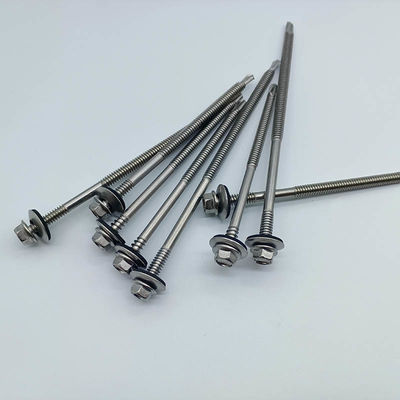

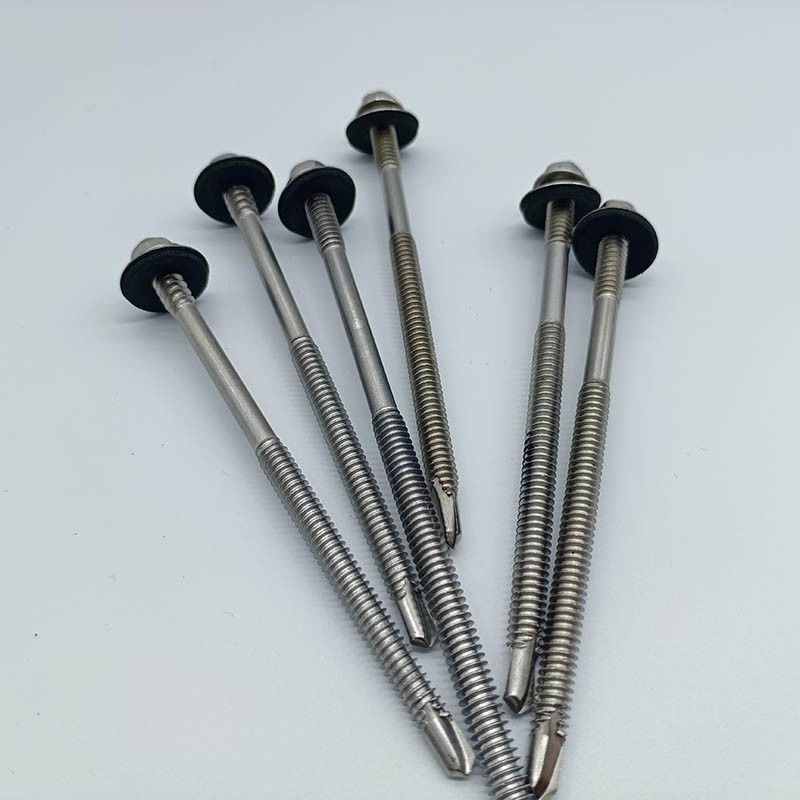

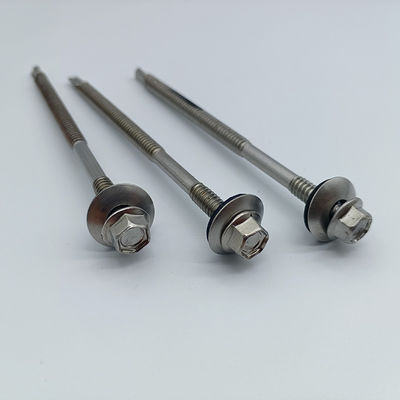

DIN ST5.5*100 Stainless Steel Hex Head Flange Self Drilling Screw With Washer

Brand Name:	YongBiao
Model Number:	12# 5.5*100mm
MOQ:	10000
Price:	1-10000:0.3usd/pcs;100000-200000:0.25usd/Pcs
Packaging Details:	Carton Box/Pallet/Customized
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

ZheJiang China

Certification:

ISO9001,TUV

Material:

304+435,316+435

Trade Terms:

EXW,FOB,CIF,DDU,DDP

Size:

ST5.5,ST6.3

Length:

25mm,32mm,38mm,50mm,55mm,63mm,75mm,100mm

Trade Mark:

YONGBIAO

Drive Type:

Hexagon

Standard:

DIN,GB,ISO

Class:

8.8,10.9,12.9

Supply Ability:

5000000 Tons/Year

Product Description

ST5.5*100 Stainless Steel Hex Head Flange Self Tapping Screw With Washer

DIN ST5.5*100 Stainless Steel Hex Head Flange Self Drilling Screw With Washer 0

1.Products Details:

Our Hexagon Washer Self-Drilling Screws with Composite Washers are meticulously engineered fastening solutions, designed to meet the most demanding construction, manufacturing, and assembly requirements. Combining the robust structure of hexagon head washers with the innovative design of self-drilling screws and high-performance composite washers, these products deliver exceptional functionality, durability, and reliability.

2.Key Features:

- Good Sealing Performance: The composite gasket can fill gaps effectively, preventing liquid or gas leakage in sealing applications.

- Enhanced Anti-loosening:The combination of hexagon washer and drill tail structure provides better anti-loosening effect, keeping the connection stable in vibrating environments.

- Strong Adaptability: It is suitable for various materials and surface conditions, and the composite gasket can adjust to different substrates to ensure the connection reliability.

- Improved Load Distribution: The washer design distributes the fastening force evenly, reducing the risk of local stress concentration and damage to the connected parts

- Convenient Installation: The drill tail structure allows direct drilling and fastening, simplifying the installation process and improving work efficiency.

3.Technical Parameters of Hex Self Drilling Screw

Standard	DIN,GB,ISO
Diameter	ST4.2,ST4.8,ST5.5,ST6.3
Length	25mm,32mm,38mm,50mm,55mm,63mm,75mm,100mm
Material	304+435,316+435
Packaging Details	Carton box
Inspection	ISO9001
Service	OEM ODM Customized

DIN ST5.5*100 Stainless Steel Hex Head Flange Self Drilling Screw With Washer 1

DIN ST5.5*100 Stainless Steel Hex Head Flange Self Drilling Screw With Washer 3

4.Certificate Display

DIN ST5.5*100 Stainless Steel Hex Head Flange Self Drilling Screw With Washer 4

5.Production Process

DIN ST5.5*100 Stainless Steel Hex Head Flange Self Drilling Screw With Washer 7

6.Packaging and shipping Details

DIN ST5.5*100 Stainless Steel Hex Head Flange Self Drilling Screw With Washer 8
