Good price online

products details

Home > Products >
Pan Head Screw
>
Cross Recessed Pan Head Screw Coarse Thread Galvanized Self Tapping Screws M4
All Category

Pan Head Screw

Bugle Head Screw

Self Tapping Screw

Self Drilling Screw

Stainless Steel Screw

Screw Kit

Concrete Anchor Bolt

Hex Head Bolt

Allen Head Bolt

Machine Bolt

Expansion Anchor Bolt

Hex Head Nut

Spring Lock Washer

Waterproof Cable Gland

CNC Machining Parts

Cabinet Door Hydraulic Hinge

Cabinet Drawer Slide

Cabinet Gas Spring
Contact Us
Mr. Sales
info@ybfasteners.com
+8618658229695
Contact Now

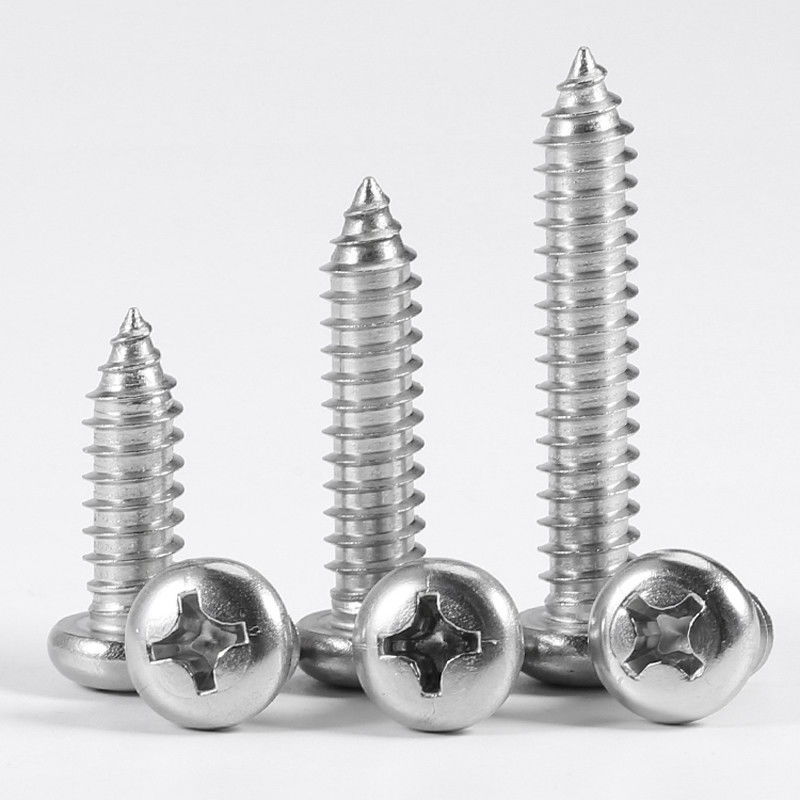

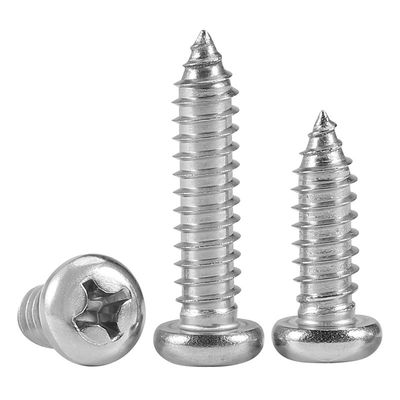

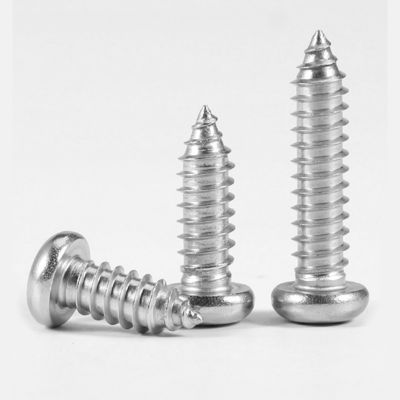

Cross Recessed Pan Head Screw Coarse Thread Galvanized Self Tapping Screws M4
  • name
  • name
  • name

Cross Recessed Pan Head Screw Coarse Thread Galvanized Self Tapping Screws M4

Brand Name: YongBiao
Model Number: GB845
MOQ: 10000
Price: Negotiation
Packaging Details: Carton Box
Payment Terms: TT
Detail Information
Product Description
Detail Information
Place of Origin:
ZHEJAING CHINA
Certification:
ISO9001
Name:
Pan Head Screw
Thread Type:
Coarse Thread
Head Style:
Pan Head
Corrosion Resistance:
Yes
Finish:
Zinc Plated
Thread Coverage:
Full Thread
Grade:
8.8
Port:
NINGBO Or SHANGHAI
Trade Term:
EXW/FOB/CIF/DDP/DDU
Standard:
DIN, ANSI, GB, JIS,Customized
Head Type:
Hex Head, Flat Head, Csk Head, Round Head
Supply Ability:
500tons/month
Highlight:

Cross Recessed Pan Head Screw

,

Pan Head Screw Coarse Thread

,

Galvanized Self Tapping Screws M4

Product Description

Cross-recessed Pan Head Self Tapping Screws



Characteristics:The pan head screw has a distinct arc shape.Cross head self-drilling screws are self-tapping screws that cut through the wood during the screwing process, reducing the need for pre-drilling.



D P DK K L T
Max Min Max Min Max Min Min
M2 0.4 4 3.7 1.6 1.46 4.24 3.76 X
M2.5 0.45 5 4.7 2.1 1.96 4.2 3.8 X
M3 0.5 6.1 5.7 2.4 2.2 4 3.8 X
M4 0.7 8.1 7.7 2.9 2.7 6 5.8 X
M5 0.8 9.5 9.14 3.7 3.52 6.2 5.6 X
M6 1 12 11.6 4.3 4 10 9.8 X
M8 1.25 16 15.57 6 5.7 16.35 15.65 X
M10 1.5 20 19.48 7.5 7.14 35.5 34.5 X







Cross Recessed Pan Head Screw Coarse Thread Galvanized Self Tapping Screws M4 0
